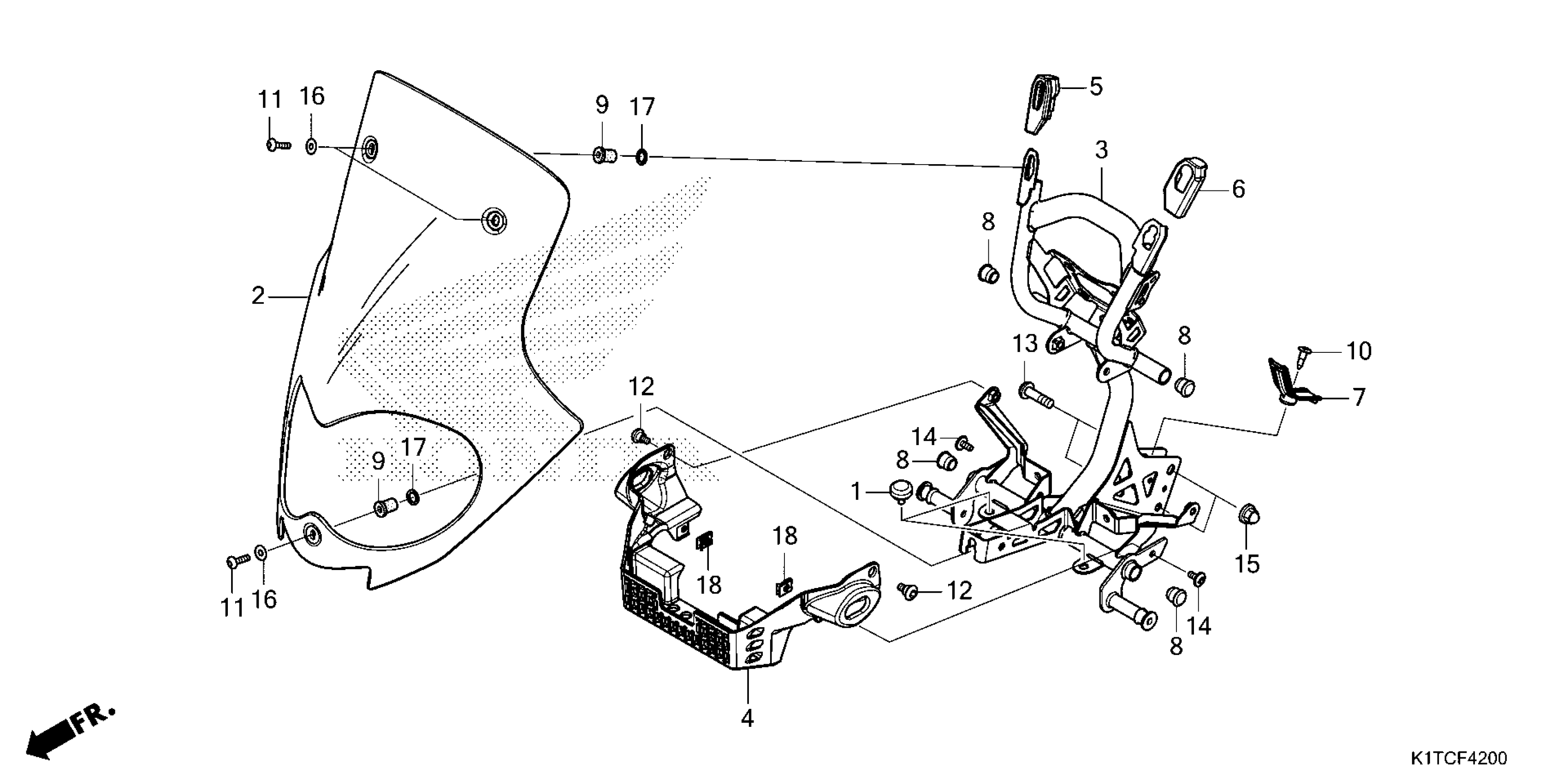

Honda CRF300LRAAC (24) MOTORCYCLE, THA, VIN# MLHND164-R5300001 WINDSCREEN Diagram

Description

Price

RUBBER, STAND STOPPER

50505-GA7-730

$2.13

WINDSCREEN

64110-KZZ-J00

$122.40

STAY, HEADLIGHT

64501-K1T-E10

$289.91

BOX, FR.

64510-KZZ-J00

$52.72

COVER, HEADLIGHT STAY (R)

64520-KZZ-J00

$2.89

COVER, HEADLIGHT STAY (L)

64521-KZZ-J00

$2.89

COVER, STAY (CENTER)

64530-KZZ-J00

$4.92

CAP, RR. CARRIER

81212-GF4-000

$4.56

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.53

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

SCREW, PAN (5X20)

90117-MGZ-J80

$1.49

SCREW, SPECIAL (5X11)

90122-MJK-N20

$2.48

BOLT, SOCKET (8X30)

90128-KZZ-J00

$1.70

BOLT, SOCKET (5X12)

90154-MEE-D00

$1.85

NUT, HEX. CAP (8MM)

90307-MJE-D00

$1.49

WASHER (5.4X14X0.5)

90505-MY6-920

$2.11

WASHER, NYLON (9MM)

90507-ZV1-000

$2.00

NUT, CLIP (5MM)

90677-KAN-T00

$1.49
