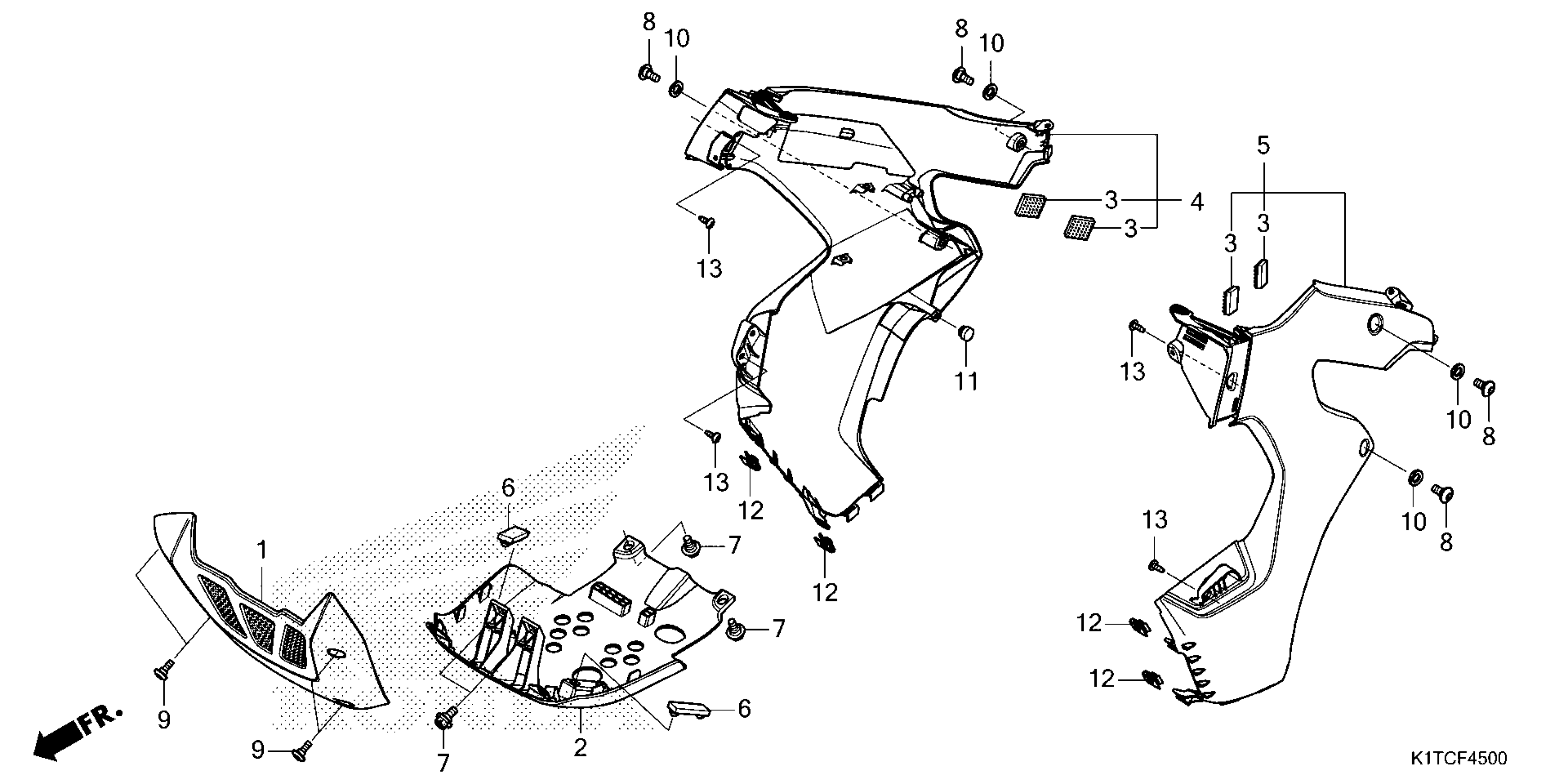

Honda CRF300LRAAC (24) MOTORCYCLE, THA, VIN# MLHND164-R5300001 MIDDLE COWL Diagram

COWL, FR. (LOWER) *NH1* (BLACK)

50375-KZZ-J00ZA

$122.11

COWL, RR. (LOWER)

50376-K1T-E10

$40.85

FASTENER B, DUAL LOCK (20X20)

64165-MJF-A30

$3.78

COWL ASSY. (TYPE1)

64300-K1T-E11ZA

$340.39

COWL ASSY., L. MIDDLE (TYPE1) (WL)

64400-K1T-E10ZA

$204.30

RUBBER, SEAT SETTING

77204-312-000

$5.05

BOLT, FLANGE (6MM)

90110-K1T-E10

$1.49

SCREW, PAN (6X14)

90133-KPP-T00

$1.49

SCREW, PAN (5X14)

90134-KPP-T00

$1.49

WASHER, RUBBER

90514-K1T-E10

$1.49

RUBBER, SEPARATOR MOUNTING

90572-KV3-300

$4.05

NUT, CLIP (5MM)

90677-KAN-T00

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49
