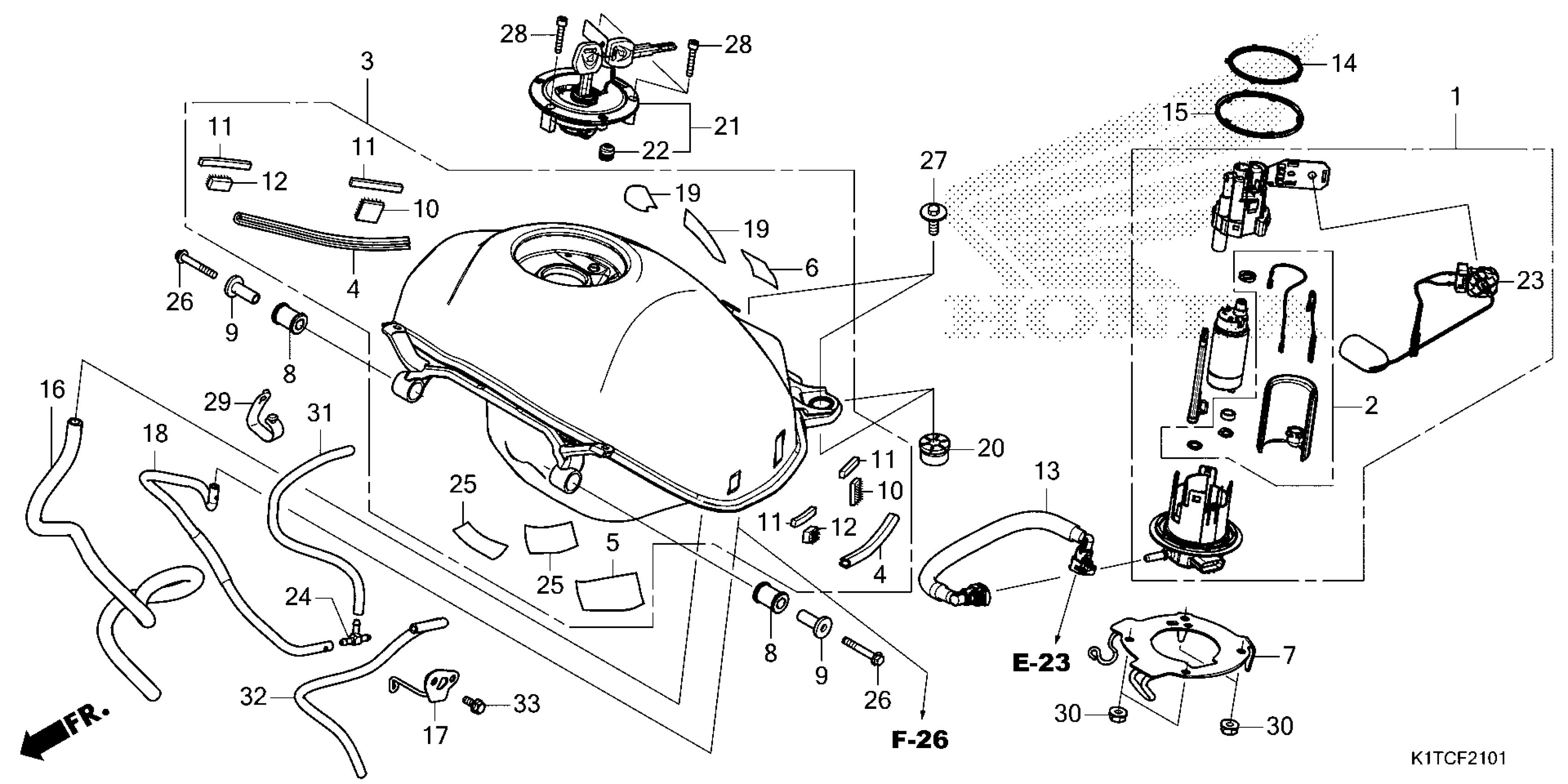

Honda CRF300LRAAC (24) MOTORCYCLE, THA, VIN# MLHND164-R5300001 FUEL TANK (CRF300LR/LRA) Diagram

#

Description
Price

1

PUMP ASSY., FUEL (MSDS)

16700-K1T-E11

$122.28

2

FILTER SET

16707-K45-N01

$21.58

3

TANK ASSY., FUEL (TYPE1) (WL)

17500-K1T-E10ZA

$374.96

4

TRIM A, FUEL TANK

17516-KZZ-900

$5.84

5

FILM, TANK PROTECTOR

17519-K1B-T00

$7.19

6

FILM, TANK PROTECTOR

17519-K35-V00

$20.93

7

PLATE, SETTING

17527-K1T-E10

$8.62

8

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.54

9

COLLAR

17538-KZZ-900

$2.16

10

FASTENER, DUAL LOCK (20X20)

17540-MJW-J80

$2.29

11

RUBBER, TANK

17544-K1T-E10

$1.90

12

FASTENER, DUAL LOCK (10X20)

17545-K1T-E10

$1.49

13

HOSE, FUEL FEED

17570-K1T-E11

$32.85

14

GASKET, FUEL PUMP

17572-GHB-613

$15.65

15

DUST SEAL

17573-KPN-A71

$11.49

16

TUBE, DRAIN

17575-K1T-E10

$12.68

19

FILM, TANK PROTECTOR

17583-K1T-E10

$2.46

20

CUSHION, FUEL TANK

17613-K1T-E10

$2.24

21

CAP COMP

17620-KZZ-J03

$183.87

22

SEAL, BREATHER

17621-MGP-D62

$4.90

23

FUEL UNIT

37800-K1T-E11

$34.37

25

FILM, PROTECTOR

84114-MFP-C80

$4.37

26

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$3.89

27

BOLT-WASHER (6X14)

90107-K1T-EB0

$0.93

28

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$0.88

30

NUT, FLANGE (6MM)

94050-06080

$0.60
