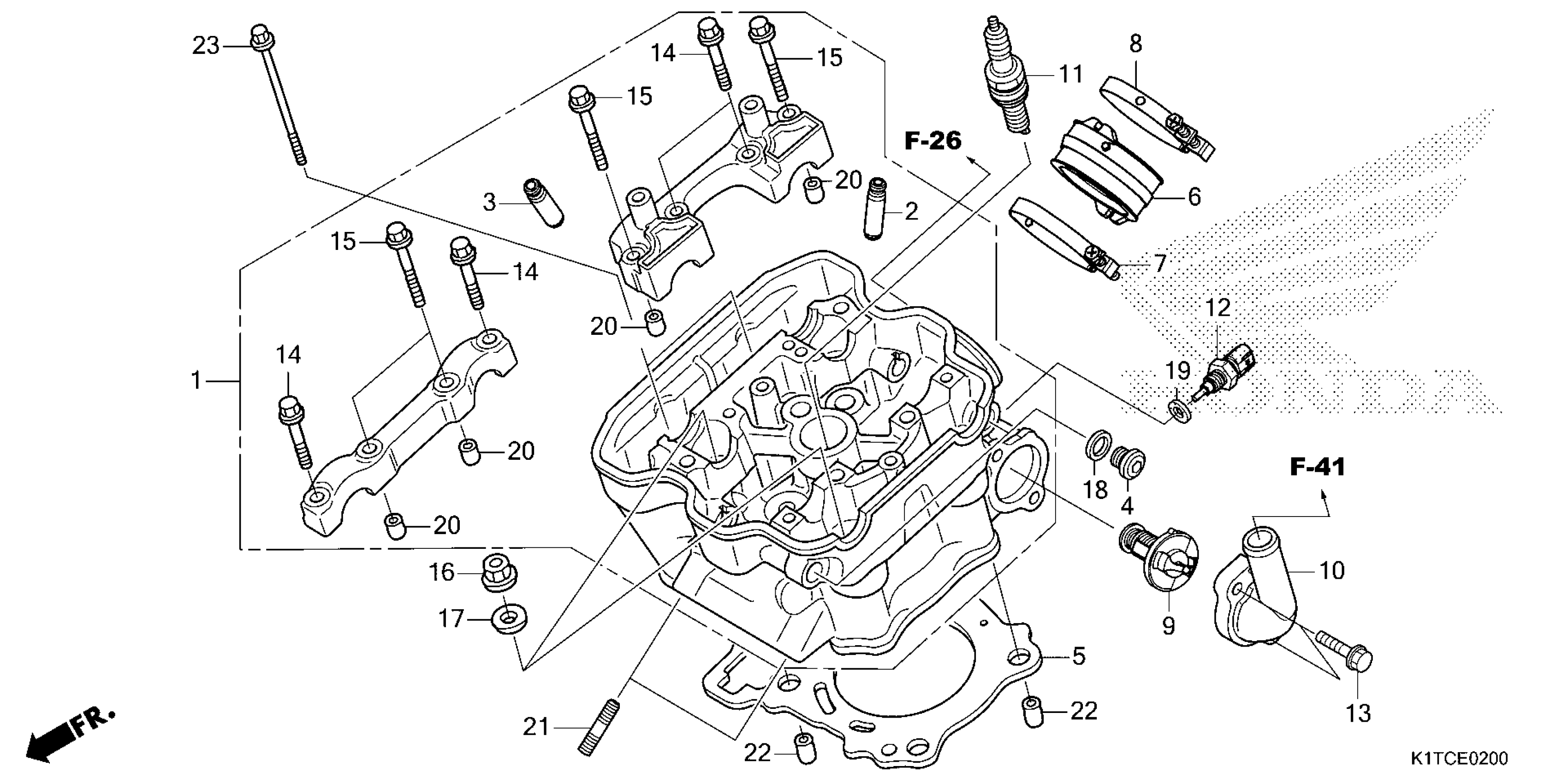

Honda CRF300LRAAC (24) MOTORCYCLE, THA, VIN# MLHND164-R5300001 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY.

12010-K1T-EB0

$385.62

2

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$19.81

3

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$19.81

4

BOLT, SEALING (12MM)

12207-KYJ-900

$1.52

5

GASKET, CYL HD

12251-K2Y-A01

$10.56

6

INSULATOR, THROTTLE BODY

16211-K1T-E10

$12.00

7

BAND, INSULATOR

16217-K1T-E10

$12.80

8

BAND, INSULATOR

16218-K1T-E10

$8.20

9

THERMOSTAT

19300-K0A-DB1

$19.19

10

COVER, THERMOSTAT

19321-K0A-EB0

$2.82

11

SPARK PLUG (SIMR8A9) (NGK)

31916-MEH-003

$18.81

12

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

13

BOLT, FLANGE (6X22) (NSHF)

90011-KYJ-900

$1.49

14

BOLT, FLANGE (6X32)

90017-KYJ-900

$1.49

15

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$1.49

16

NUT, FLANGE (10MM)

90204-K87-A30

$1.49

17

WASHER (10MM)

90410-GCC-000

$2.21

18

WASHER (12.2X17X1.5)

90418-KYJ-900

$1.49

19

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

20

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

20

PIN, DOWEL (8X14) This part replaces 91105-KSP-910.

90702-KRM-840

$1.49

20

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

21

BOLT, STUD (8X22)

92900-08022-3E

$2.31

22

PIN A, DOWEL (12X16)

94301-12160

$2.27

23

BOLT, FLANGE (6X120)

95701-06120-00

$1.49
