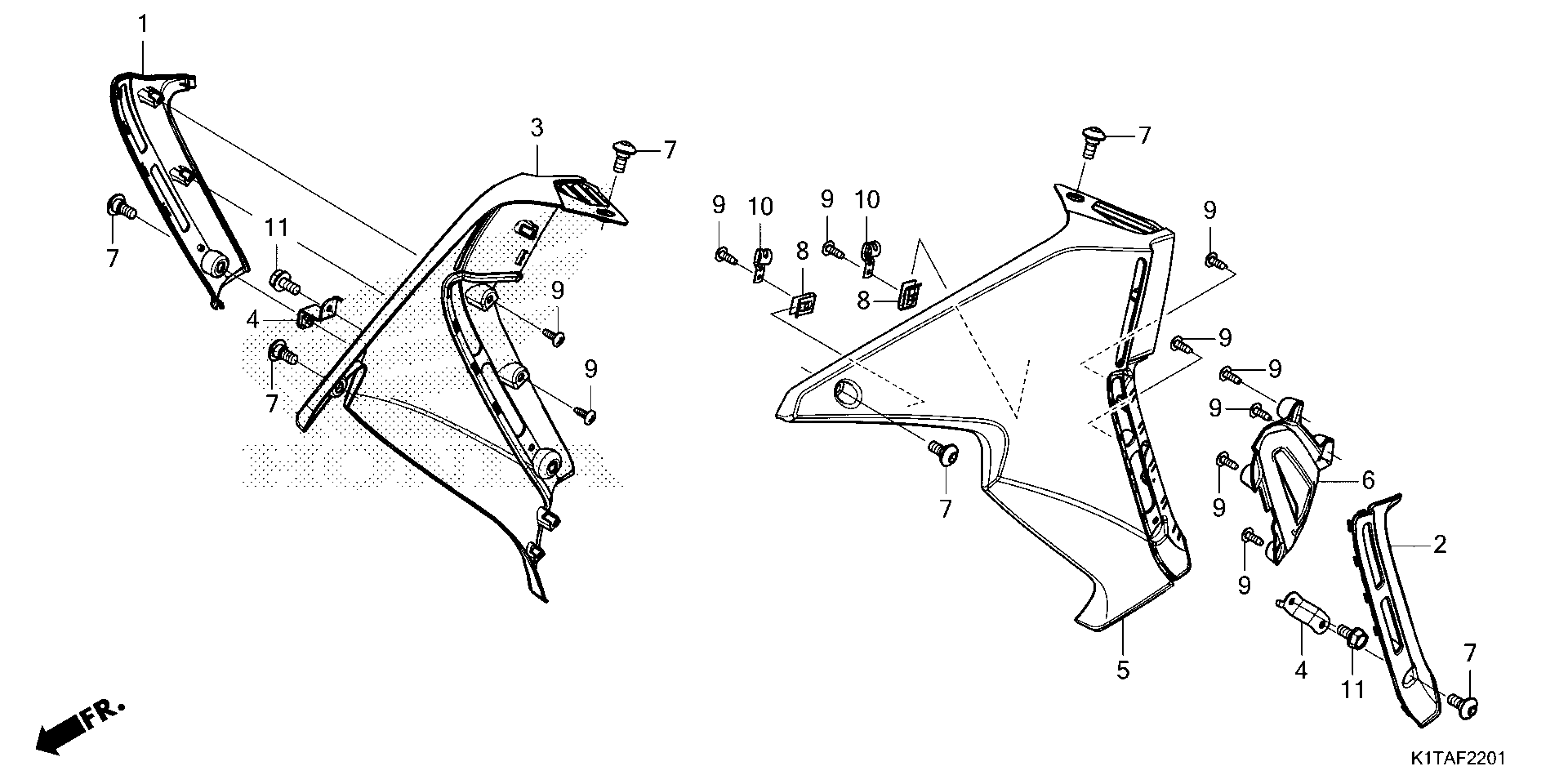

Honda CRF300LRAAC (23) MOTORCYCLE, THA, VIN# MLHND164-P5200001 SHROUD (2) Diagram

SHROUD, R. RR. *NH1* (BLACK)

19035-KZZ-J00ZA

$74.80

SHROUD, L. RR. *NH1* (BLACK)

19045-KZZ-J00ZA

$74.80

SHROUD SET, R. FR. (TYPE1) (WL)

19070-K1T-E10ZA

$58.82

STAY, SHROUD

19071-K1T-E10

$6.41

SHROUD SET, L. FR. (TYPE1) (WL)

19090-K1T-E10ZA

$58.84

COVER, RR. RESERVE TANK

19165-K1T-E10

$15.75

SCREW, PAN (6X14)

90133-KPP-T00

$1.49

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

SCREW, TAPPING (4X12)

93903-24380

$1.49

CLIP (4X70)

94591-47000

$2.93

BOLT, FLANGE (6X12)

95701-06012-07

$1.62
