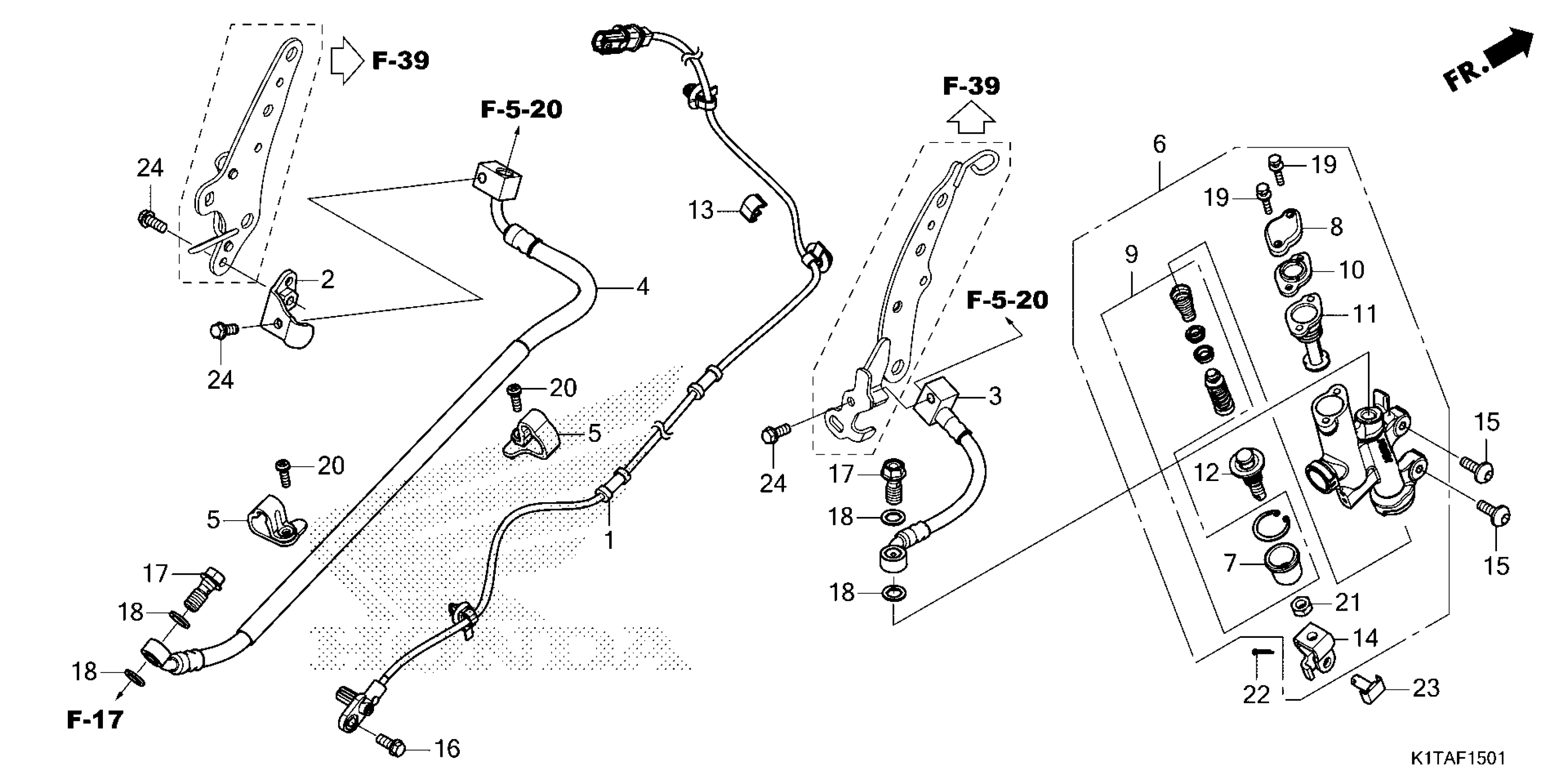

Honda CRF300LRAAC (23) MOTORCYCLE, THA, VIN# MLHND164-P5200001 REAR BRAKE MASTER CYLINDER (2) Diagram

SENSOR, RR. WHEEL SPEED

38510-K1T-E11

$34.03

STAY, RR. BRAKE HOSE

43151-KZZ-J80

$11.00

HOSE A, RR. BRAKE

43310-K1T-E11

$27.90

HOSE D, RR. BRAKE

43313-K1T-E11

$30.19

GUIDE, RR. BRAKE HOSE

43468-MJL-D70

$6.75

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)

43500-K1T-E11

$175.12

BOOT

43504-MB2-006

$9.24

CAP, MASTER CYLINDER

43513-K1T-E11

$31.25

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$41.66

PLATE, DIAPHRAGM

43521-K1T-E11

$2.24

DIAPHRAGM

43522-K1T-E11

$5.63

ROD, PUSH

43530-KZZ-901

$10.49

CLIP, ABS SPEED SENSOR

45165-MFN-D10

$2.47

JOINT, BRAKE ROD

46504-KV6-702

$7.49

BOLT, BRAKE DISK (6X17)

90106-KGH-600

$2.80

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$0.53

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

WASHER, OIL BOLT

90545-300-000

$6.56

BOLT-WASHER (4X16)

93401-04016-00

$0.85

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$0.84

NUT, HEX. (8MM)

94002-08000-0S

$1.21

PIN, COTTER (2.0X12)

94201-20120

$0.96

PIN D, JOINT

95015-54000

$4.05

BOLT, FLANGE (6X14)

96001-06014-00

$1.66
