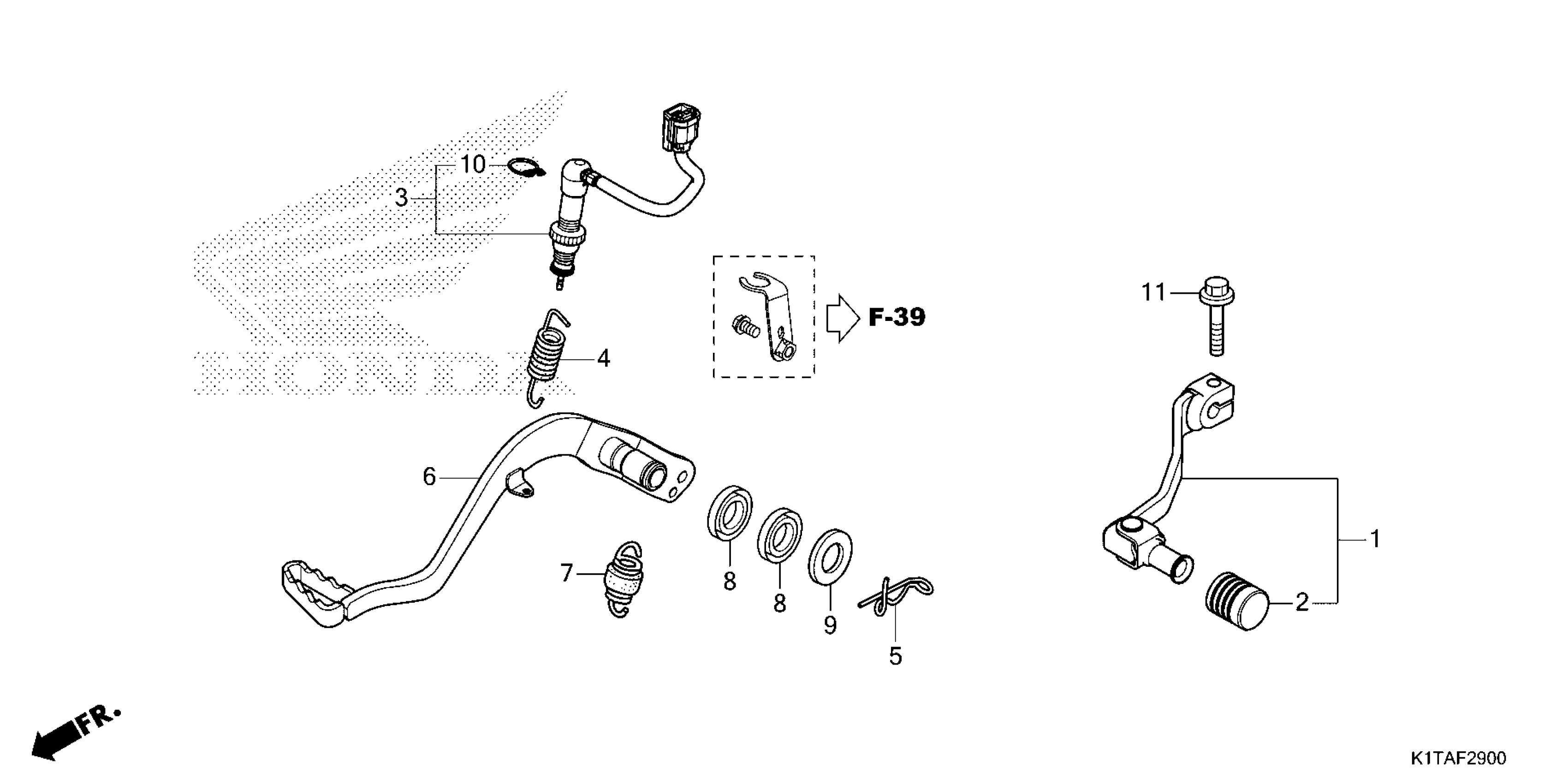

Honda CRF300LRAAC (23) MOTORCYCLE, THA, VIN# MLHND164-P5200001 PEDAL Diagram

PEDAL ASSY., CHANGE

24700-K1T-E10

$29.90

RUBBER, CHANGE PEDAL

24781-KZZ-J00

$3.00

SWITCH ASSY., RR. STOP

35350-K1T-E11

$20.25

SPRING, STOP SWITCH

35357-KZZ-900

$1.40

PIN, SNAP

43950-KZZ-900

$4.76

PEDAL, RR. BRAKE

46500-K1T-E10

$21.92

SPRING ASSY., RR. BRAKE RETURN

46511-KZ4-J00

$7.13

DUST SEAL (17X20X2.5)

46525-KK0-003

Unavailable

WASHER, PLAIN (16MM)

90439-463-000

$1.46

CLIP, SWITCH COVER

90601-KAF-003

$2.47

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63
