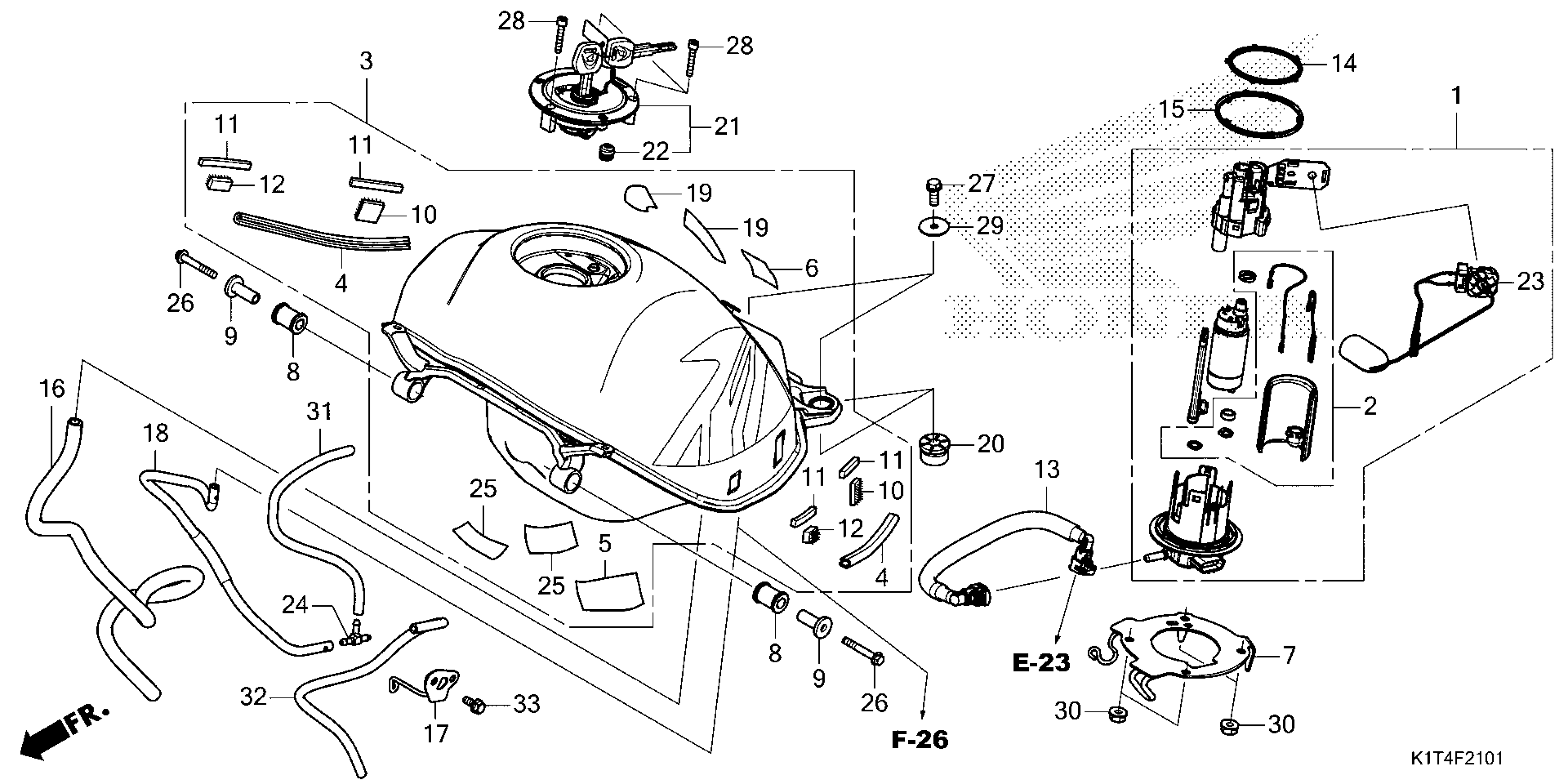

Honda CRF300LRAAC (22) MOTORCYCLE, THA, VIN# MLHND164-N5100001 FUEL TANK (2) Diagram

PUMP ASSY., FUEL (MSDS)

16700-K1T-E11

$136.31

FILTER SET

16707-K45-N01

$24.22

TANK ASSY., FUEL (TYPE1) (WL)

17500-K1T-E10ZA

$417.98

TRIM A, FUEL TANK

17516-KZZ-900

$6.31

FILM, TANK PROTECTOR

17519-K1B-T00

$8.02

FILM, TANK PROTECTOR

17519-K35-V00

$23.33

PLATE, SETTING

17527-K1T-E10

$9.61

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

COLLAR

17538-KZZ-900

$2.41

FASTENER, DUAL LOCK (20X20)

17540-MJW-J80

$2.56

RUBBER, TANK

17544-K1T-E10

$2.11

FASTENER, DUAL LOCK (10X20)

17545-K1T-E10

$1.66

HOSE, FUEL FEED

17570-K1T-E11

$36.86

GASKET, FUEL PUMP

17572-GHB-613

$17.55

DUST SEAL

17573-KPN-A71

$12.89

TUBE, DRAIN

17575-K1T-E10

$14.13

FILM, TANK PROTECTOR

17583-K1T-E10

$2.74

CUSHION, FUEL TANK

17613-K1T-E10

$2.49

CAP COMP This part replaces 17620-KZZ-J02.

17620-KZZ-J03

$199.00

SEAL, BREATHER

17621-MGP-D62

$5.14

FUEL UNIT

37800-K1T-E11

$40.77

FILM, PROTECTOR

84114-MFP-C80

$4.72

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT, FLANGE (6X14)

90013-GHB-620

$2.33

BOLT, SOCKET (4X25) (SUS)

90120-MJE-D00

$1.49

WASHER, PLAIN (6MM)

90521-K1T-E10

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
