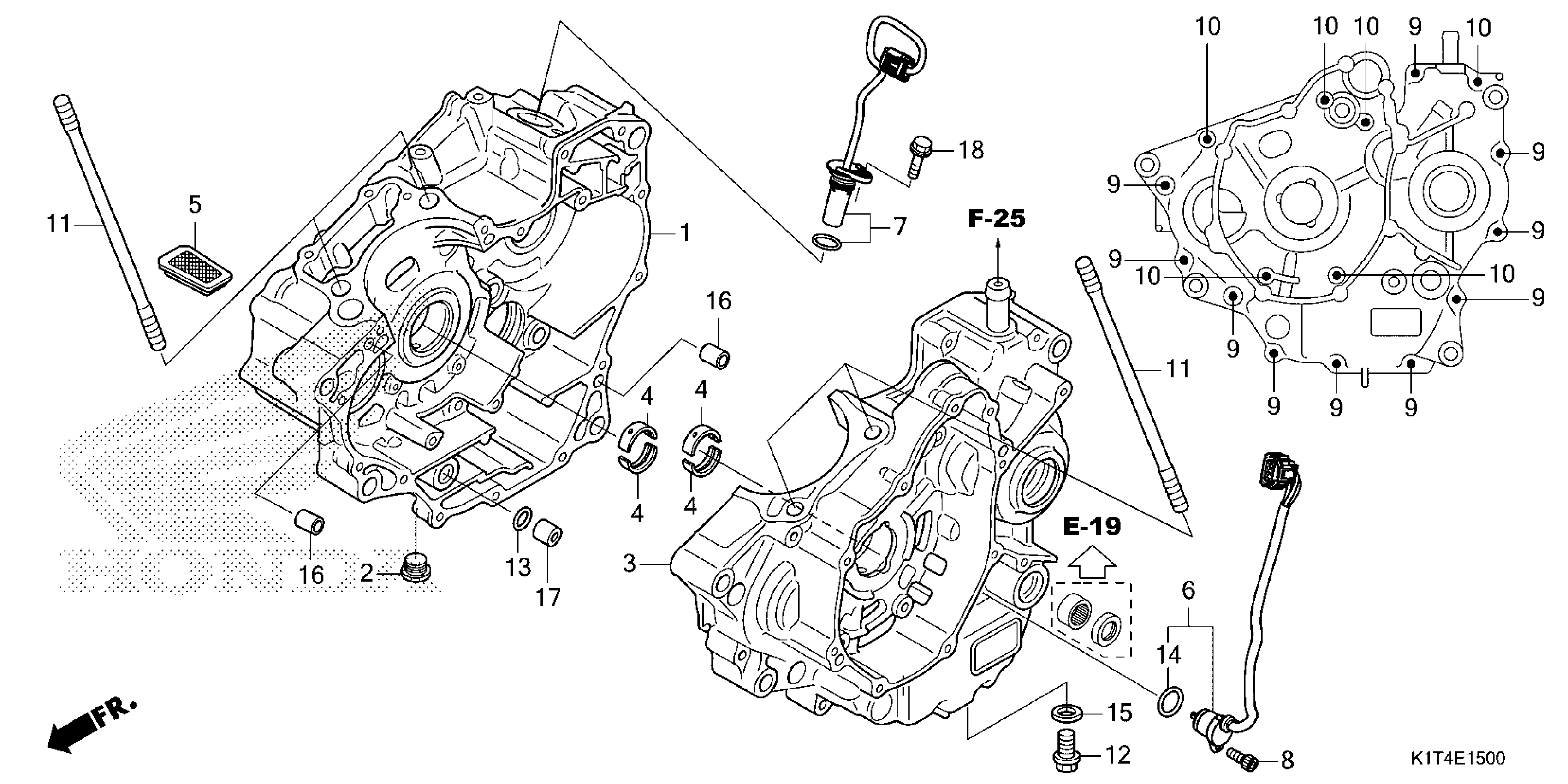

Honda CRF300LRAAC (22) MOTORCYCLE, THA, VIN# MLHND164-N5100001 CRANKCASE Diagram

CRANKCASE, R.

11100-K33-700

$189.23

BOLT, SEALING (16MM)

11107-KYJ-900

$3.25

CRANKCASE, L.

11200-K1T-E10

$189.84

BEARING A, CRANKSHAFT (BLUE)

13312-K33-D01

$11.78

BEARING B, CRANKSHAFT (BLACK)

13313-K33-D01

$11.78

BEARING C, CRANKSHAFT (BROWN)

13314-K33-D01

$11.78

BEARING D, CRANKSHAFT (OVER SIZE) (RED) | (Optional).

13315-K33-305

$12.49

BEARING E, CRANKSHAFT (OVER SIZE) (GREEN) | (Optional).

13316-K33-305

$12.49

BEARING F, CRANKSHAFT (OVER SIZE) (YELLOW) | (Optional).

13317-K33-305

$12.49

BEARING G, CRANKSHAFT (OVER SIZE) (PINK) | (Optional).

13318-K33-305

$12.62

SCREEN, OIL FILTER

15421-KYJ-900

$3.03

SWITCH ASSY., CHANGE

35759-K1T-E11

$87.02

SENSOR ASSY., SPEED

37700-KZZ-901

$47.28

BOLT, SOCKET KNOCK (6MM)

90011-MGP-000

$7.10

BOLT, FLANGE (6X40) (NSHF)

90014-KYJ-900

$1.49

BOLT, FLANGE (6X70) (NSHF)

90016-KYJ-900

$1.49

BOLT, STUD (10X178)

90032-K33-D00

$3.61

BOLT, DRAIN PLUG (12MM)

90061-KYJ-900

$1.49

O-RING (11.8X1.9)

91301-KYJ-901

$1.49

O-RING (16.5X2.5)

91305-KC1-850

$1.86

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

PIN A, DOWEL (12X16)

94301-12160

$2.27

BOLT, FLANGE (6X18) BOLT, HEX. (6X18)

95701-06018-00

$1.62
