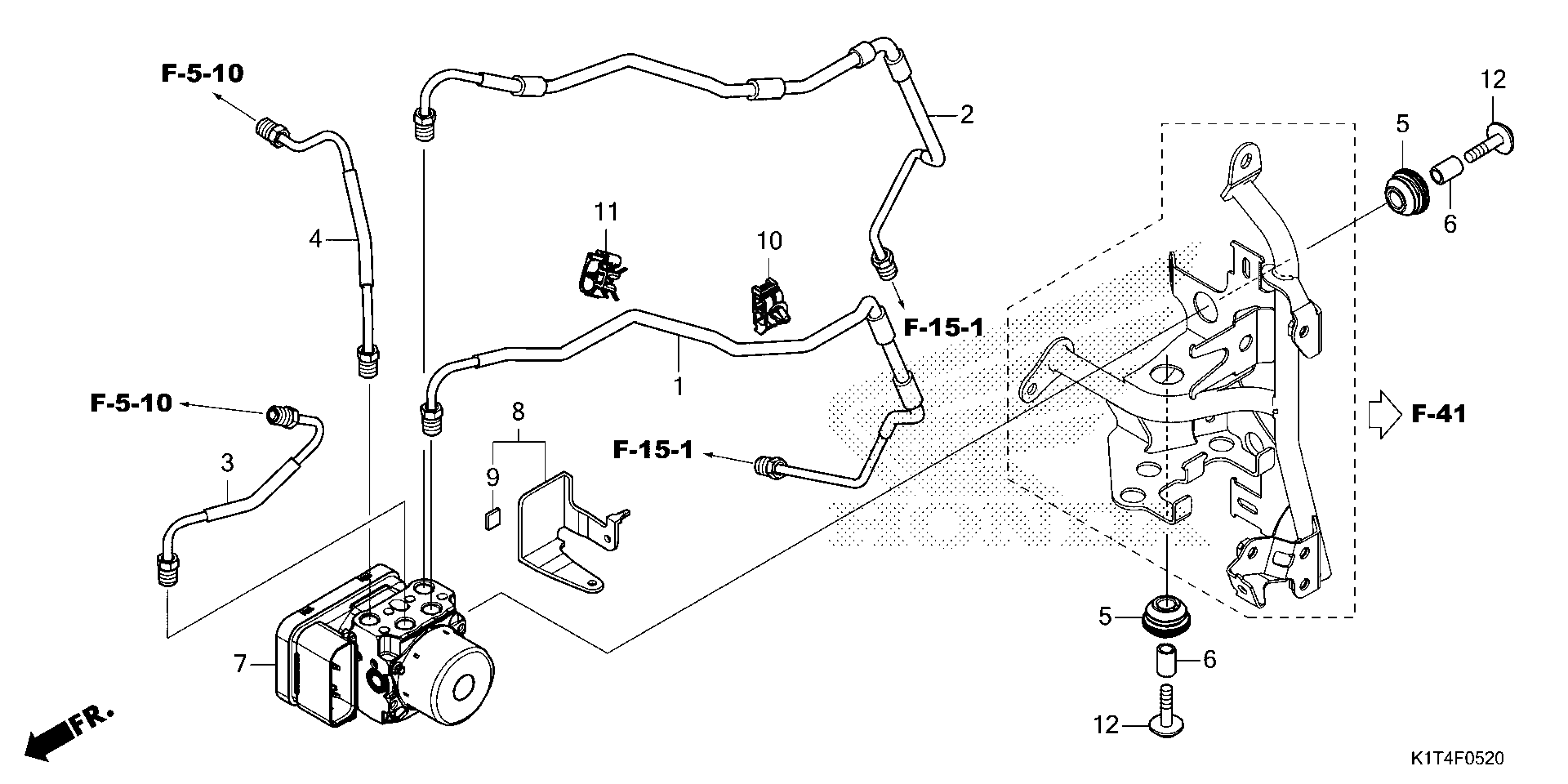

Honda CRF300LRAAC (22) MOTORCYCLE, THA, VIN# MLHND164-N5100001 ABS MODULATOR@BRAKE PIPE Diagram

#

Description
Price

1

PIPE B, RR. BRAKE

43311-K1T-E10

$15.84

2

PIPE C, RR. BRAKE

43312-K1T-E10

$19.61

3

PIPE B, FR. BRAKE

45125-K1T-E10

$8.26

4

PIPE C, FR. BRAKE

45126-K1T-E10

$8.18

5

RUBBER, MOUNTING

57101-MER-D21

$3.25

6

COLLAR

57103-SDA-003

$3.26

7

MODULATOR ASSY. (NISSIN)

57110-K1T-E11

$975.85

8

STAY, ABS MODULATOR

57115-K1T-E10

$8.79

9

RUBBER SPONGE, RR. FENDER

64465-KZZ-J00

$1.49

10

CLAMP, BRAKE PIPE (7.0X2)

90661-K87-L51

$1.49

11

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.84

12

BOLT-WASHER (6X25)

93404-06025-00

$1.49
