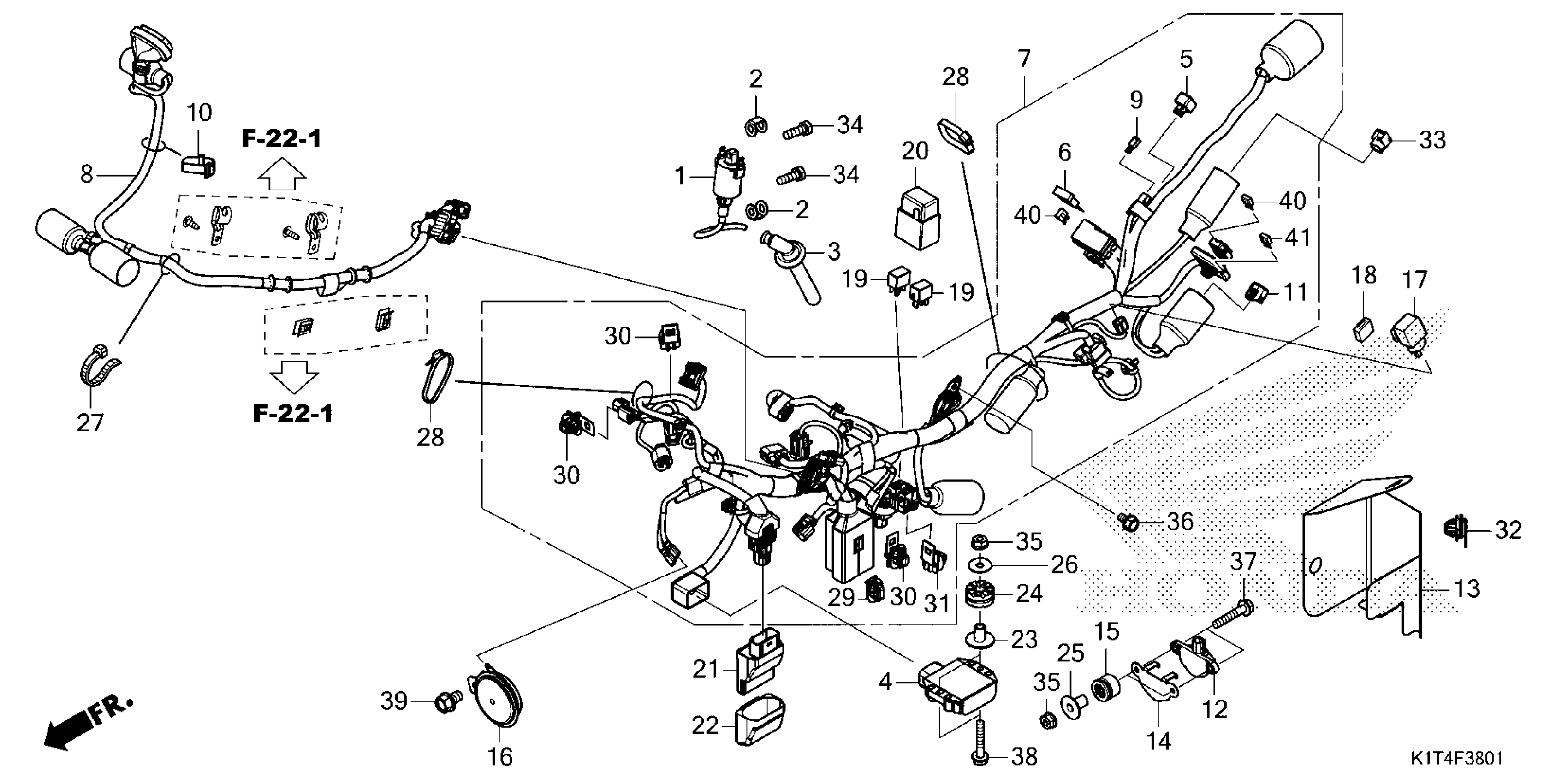

Honda CRF300LRAAC (21) MOTORCYCLE, THA, VIN# MLHND164-M5000001 TO MLHND164-M5099999 WIRE HARNESS (2) Diagram

#

Description
Price

1

COIL, IGNITION

30510-K1T-E11

$19.71

2

SPACER, IGNITION COIL

30520-GFM-900

$2.41

3

CAP ASSY., NOISE SUPPRESSOR

30700-KZZ-901

$35.29

4

RECTIFIER ASSY., REGULATOR

31600-KZZ-J01

$97.22

5

RECTIFIER, SILICON

31700-MM8-610

$23.09

6

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

7

WIRE HARNESS

32100-K1T-A10

$679.10

8

SUB-HARNESS, FR.

32103-K1T-E10

$64.99

9

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$14.77

10

BAND B1, CABLE BAND A1, CABLE

32161-404-000

$2.16

11

CAP, DUMMY (WPC 4P 090 M) (NATURAL)

32605-GEV-761

$7.69

12

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$100.22

13

RUBBER, HEAT GUARD

35161-K1T-E10

$8.21

14

STAY, BANK ANGLE SENSOR

35161-KZZ-900

$2.38

15

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.88

16

HORN (HIGH)

38110-KPP-T01

$32.35

17

RELAY, TURN SIGNAL (MITSUBA)

38301-KYJ-641

$69.44

18

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.87

19

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$12.03

20

COVER, RELAY (2P)

38506-KZZ-900

$3.34

21

PGM-FI UNIT

38770-K1T-A11

$173.29

22

SUSPENSION, PGM-FI UNIT

38771-K1T-J10

$3.28

23

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

24

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

25

COLLAR, PILLION SEAT

77302-473-000

$3.99

26

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.69

27

BAND, WIRE

90650-KW3-000

$4.28

28

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

29

CLIP, CONNECTOR (DARK GRAY)

91534-SWA-003

$8.82

30

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

31

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.35

32

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

33

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.76

34

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

35

NUT, FLANGE (6MM)

94050-06000

$0.60

36

BOLT, FLANGE (6X10)

95701-06010-08

$1.62

37

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

38

BOLT, FLANGE (6X32)

95701-06032-08

$1.88

39

BOLT, FLANGE (8X12)

95701-08012-08

$1.62

40

FUSE, MINI (10A)

98200-41000

$1.22

41

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
