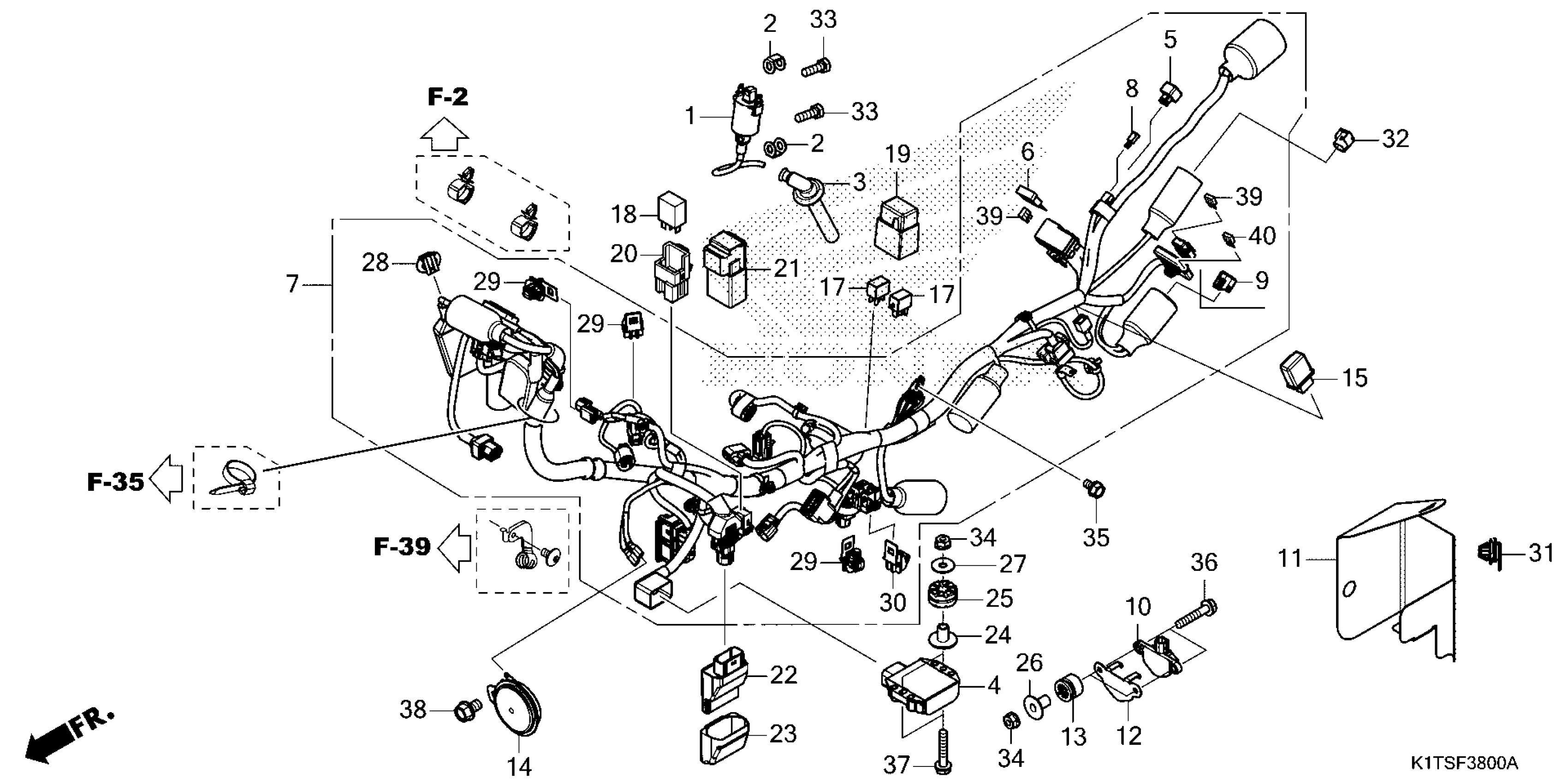

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 WIRE HARNESS (CRF300LA/LDA) Diagram

COIL, IGNITION

30510-K1T-E11

$21.97

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-KZZ-901

$39.59

RECTIFIER ASSY., REGULATOR

31600-KZZ-J01

$108.38

RECTIFIER, SILICON

31700-MM8-610

$24.98

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-K1T-AP0

$666.42

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

CAP, DUMMY (WPC 4P 090 M) (NATURAL)

32605-GEV-761

$8.33

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$108.46

RUBBER, HEAT GUARD

35161-K1T-E10

$9.15

STAY, BANK ANGLE SENSOR

35161-KZZ-900

$2.66

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$5.12

HORN (HIGH)

38110-KPP-T01

$36.07

RELAY, TURN SIGNAL

38301-KZZ-J01

$56.87

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$3.01

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$13.02

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$10.37

COVER, RELAY (2P)

38506-KZZ-900

$3.72

HOLDER, RELAY

38506-MBW-G91

$3.56

SUSPENSION, POWER RELAY

38506-MJM-D10

$3.87

PGM-FI UNIT

38770-K1T-AK2

$139.71

SUSPENSION, PGM-FI UNIT

38771-K1T-J10

$3.66

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.37

COLLAR, PILLION SEAT

77302-473-000

$4.31

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.75

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.03

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$23.15

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (6X32)

95701-06032-08

$1.89

BOLT, FLANGE (8X12)

95701-08012-08

$1.80

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
