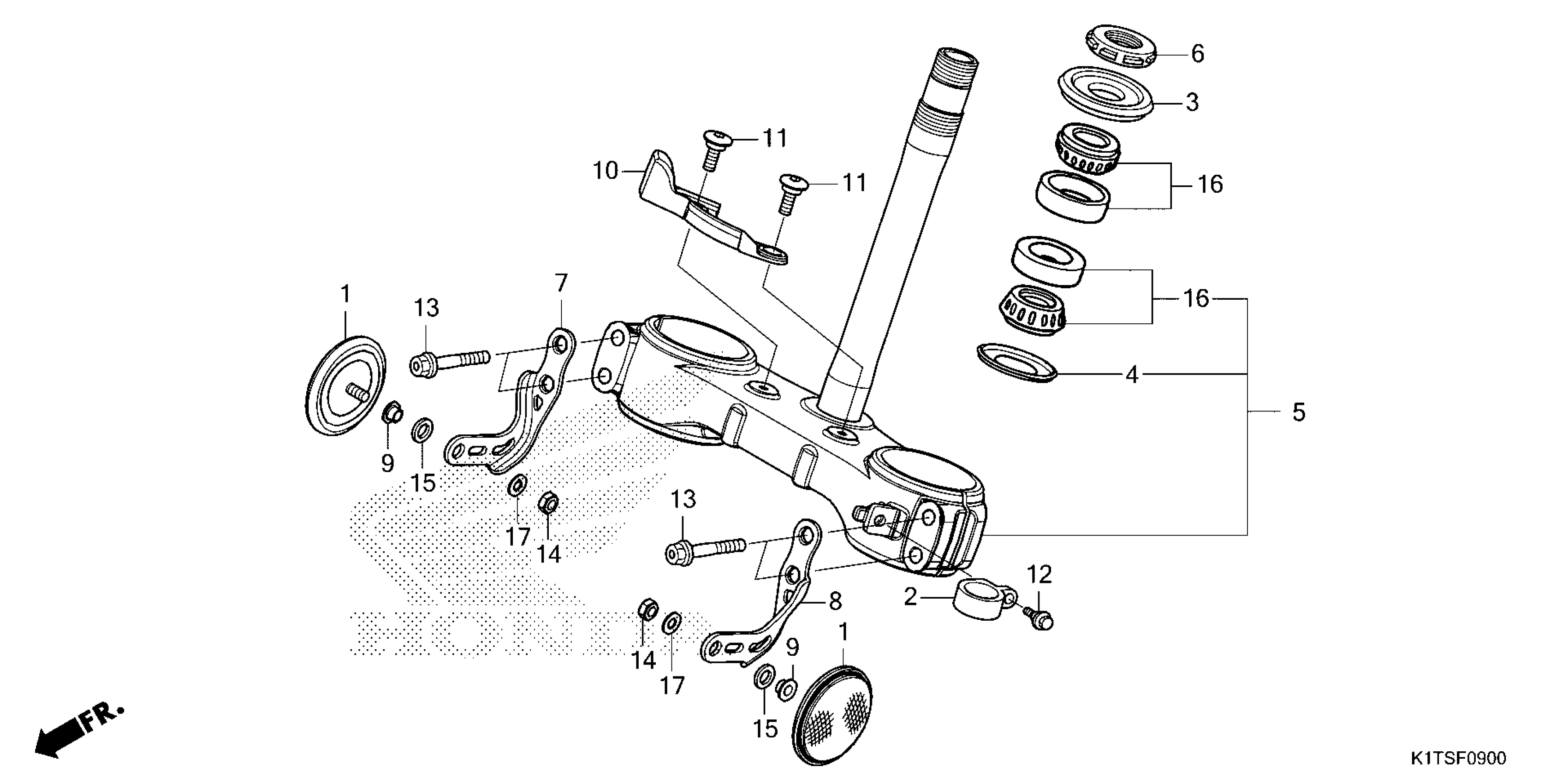

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 STEERING STEM Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$8.74

GUIDE, FR. BRAKE HOSE

45468-KZZ-J80

$2.93

DUST SEAL, STEERING (UPPER)

53214-KZZ-901

$5.47

DUST SEAL, STEERING HEAD (ARAI)

53214-MCJ-751

$4.03

STEM SUB-ASSY., STEERING

53219-K1T-E10

$354.64

THREAD, STEERING HEAD TOP

53229-MN1-650

$13.76

BRACKET, R. SIDE REFLECTOR

60114-K1T-A10

$12.07

BRACKET, L. SIDE REFLECTOR

60115-K1T-A10

$12.07

COLLAR, REFLECTOR

61101-K1T-A10

$0.69

BOLT, FLANGE (6MM)

90113-KZZ-900

$0.49

BOLT, FLANGE (8X45)

90155-KZZ-J00

$0.49

NUT, U (6MM)

90301-VK9-A31

$0.81

WASHER, RUBBER

90514-K1T-E10

$0.99

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$27.84

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$27.84

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

Unavailable
