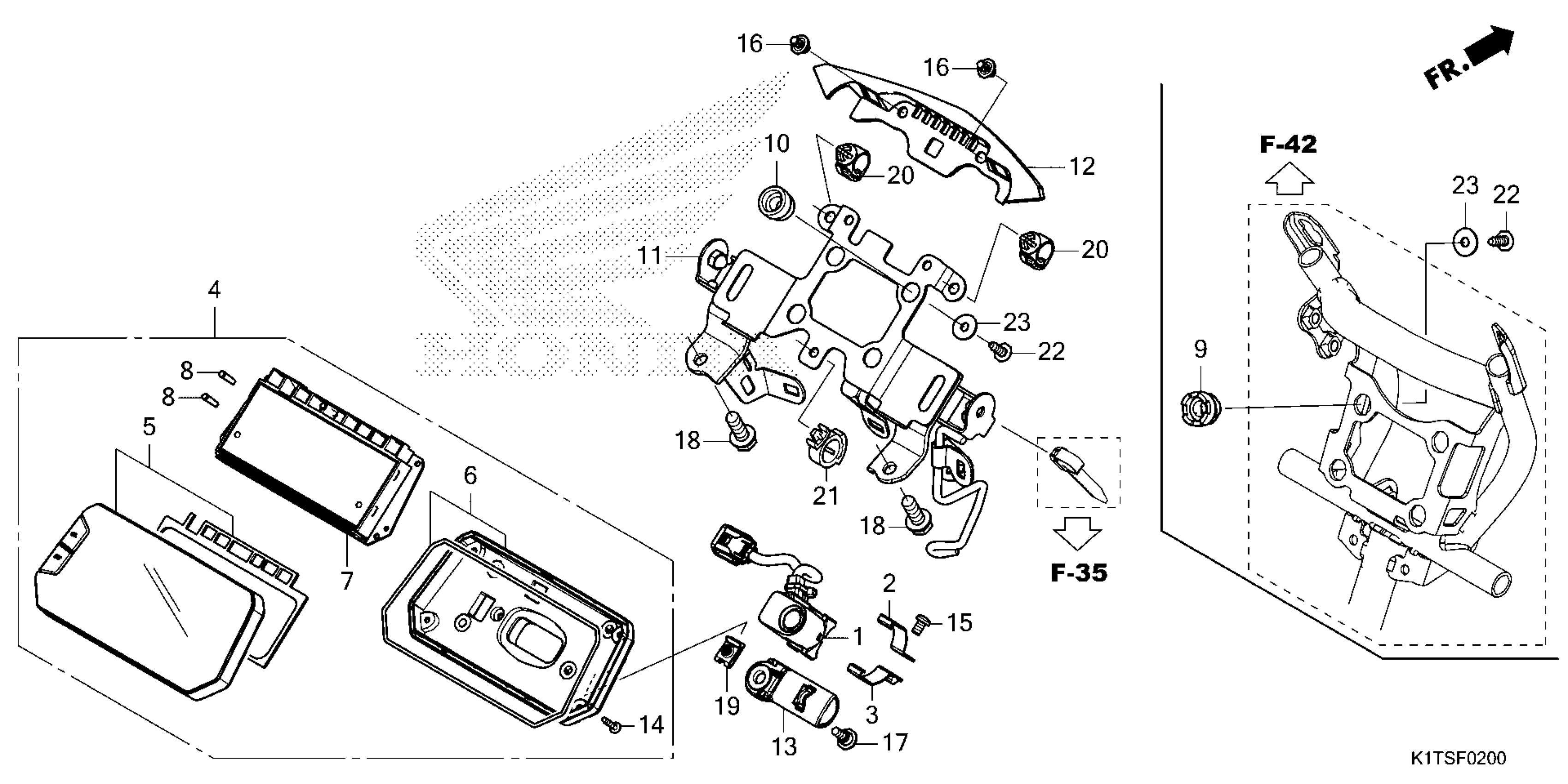

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 SPEEDOMETER Diagram

SWITCH ASSY., RR. ABS CANCEL

35240-K1T-E11

$43.74

CLAMP A, ABS CANCEL SWITCH

35241-KZZ-J80

$5.16

CLAMP B, ABS CANCEL SWITCH

35242-KZZ-J80

$5.32

METER, COMBINATION

37100-K1T-AP1

$172.10

CASE ASSY. (UPPER)

37110-K1T-A11

$49.43

CASE ASSY. (LOWER)

37120-K26-G01

$16.40

METER, LCD

37130-K1T-AP1

$117.76

KEY, TOP

37205-K26-G01

$1.06

RUBBER, METER SETTING

37215-MKK-D00

$3.59

STAY, METER

61315-K1T-ER0

$42.06

COVER, CONNECTOR

61329-K1T-ER0

$1.87

STAY, ABS CANCEL SWITCH

61335-K1T-E10

$4.26

SCREW, TAPPING (3X14)

90101-KY6-008

$2.41

SCREW (5X12)

90112-MJK-N20

$2.07

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

SCREW, SPECIAL (5X14)

90124-MKN-D50

$1.24

BOLT, FLANGE (8X20)

90163-GHB-650

$1.01

NUT, CLIP (5MM)

90677-KAN-T00

$0.59

CLIP, HARNESS

90683-MGC-920

$2.88

CLIP, WIRE HARNESS

90684-ZA0-601

$2.80

SCREW, TAPPING (5X14) (PO)

93913-25380

$0.90

WASHER, PLAIN (5MM)

94103-05700

$0.87
