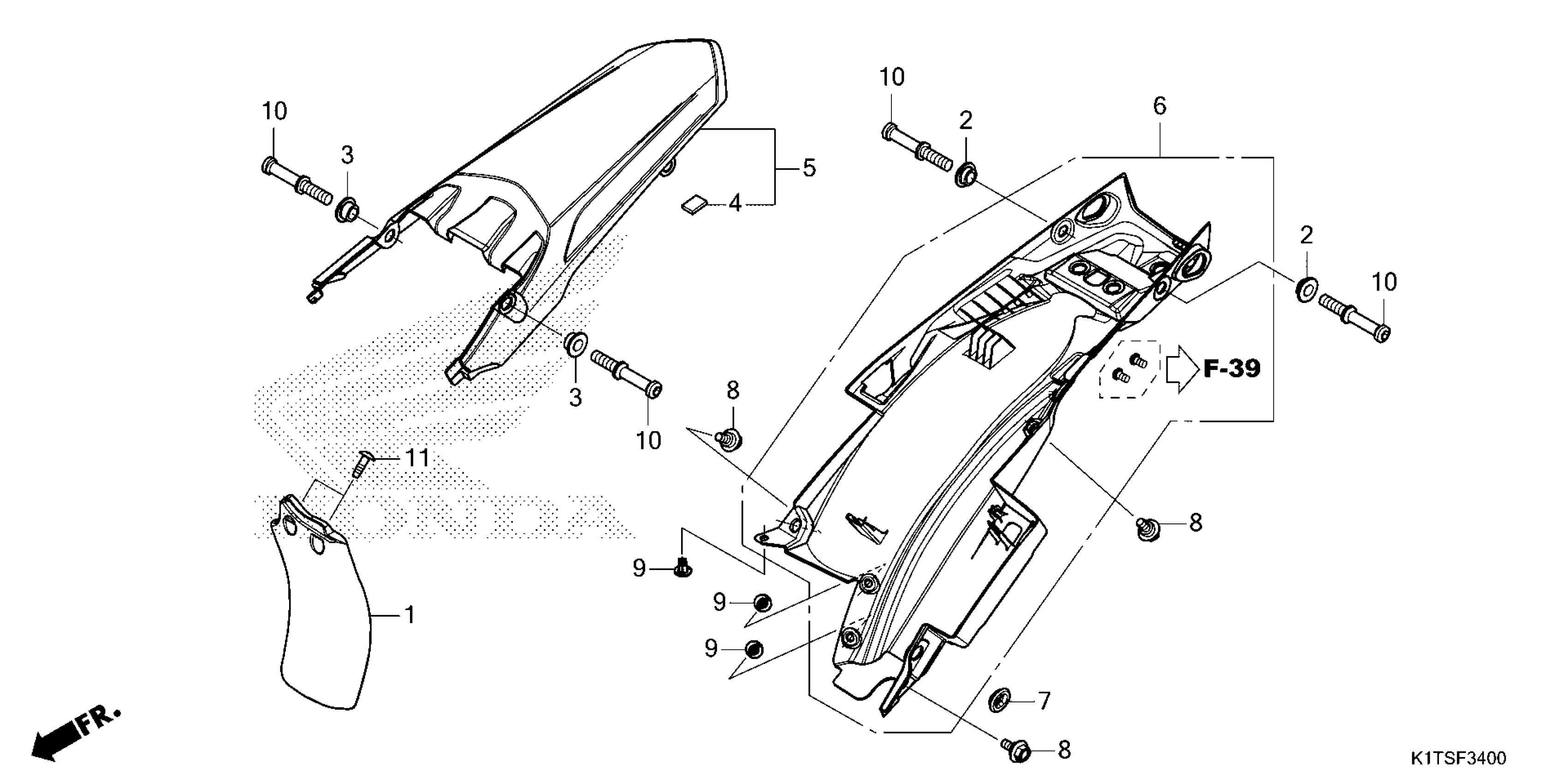

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 REAR FENDER Diagram

#

Description
Price

1

SPLASH GUARD

17218-K1T-E10

$5.28

2

COLLAR A, FENDER SETTING

77223-K1T-E10

Unavailable

3

COLLAR B, FENDER SETTING

77224-KZZ-900

$1.07

4

RUBBER, COVER (LOWER)

80109-MGZ-J80

$2.93

5

COWL, RR. *NH187R*

80130-K1T-EU0ZA

$15.03

6

FENDER SET B, RR.

80150-K1T-305

Unavailable

7

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

8

BOLT, FLANGE (6MM)

90110-K1T-E10

$1.09

9

CLIP, BUMPER SEAL

90116-K2P-V61

$1.46

10

BOLT, HOOK (8MM)

90116-KZZ-900

$2.19

11

SCREW, TAPPING (5X16)

93903-25380

$0.83
