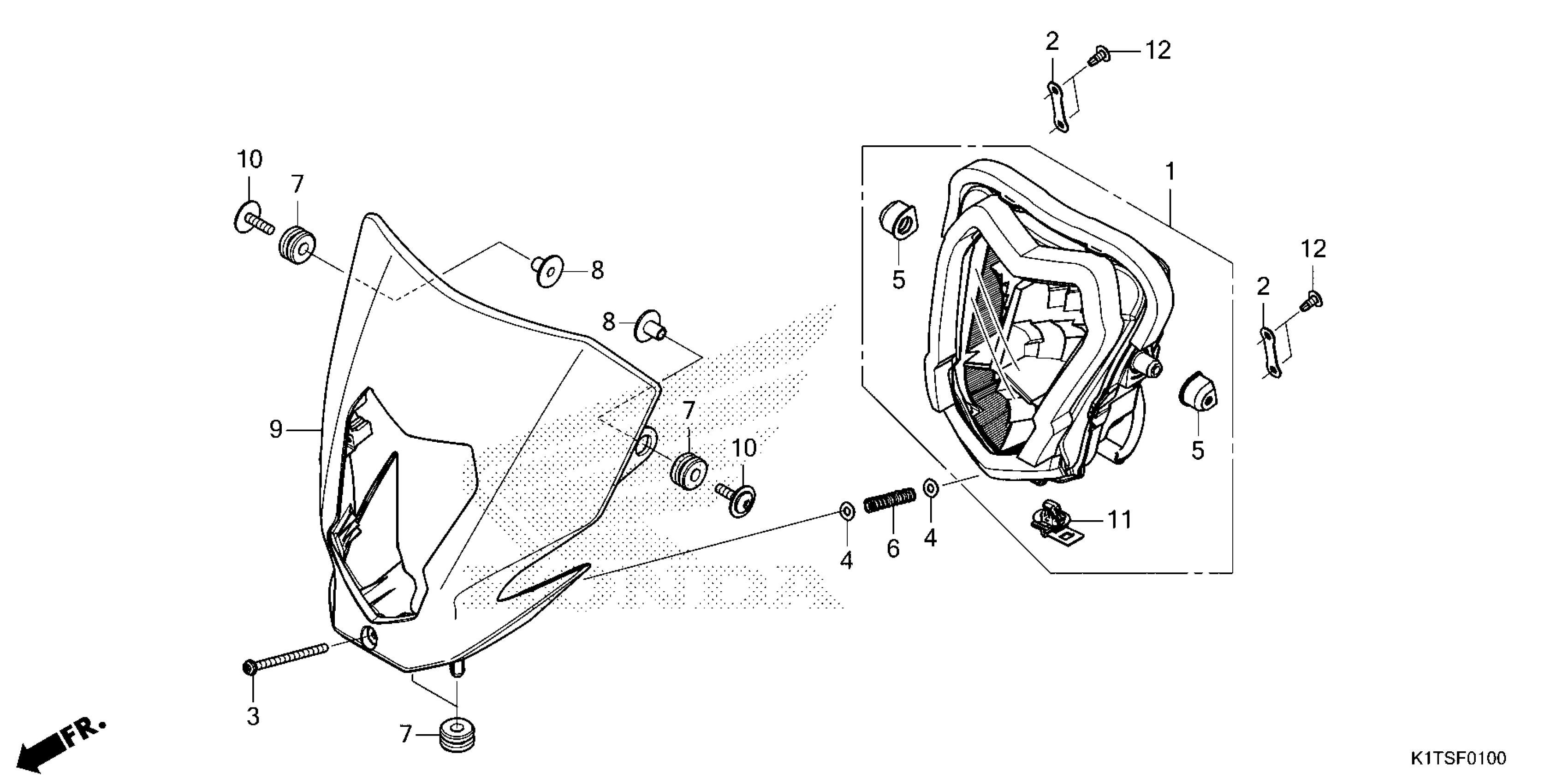

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 HEADLIGHT (CRF300LA/LDA) Diagram

HEADLIGHT ASSY.

33100-K1T-J51

$606.16

PLATE

33101-K1T-J50

$2.59

SCREW, PAN (5X70)

33103-MKE-A50

$6.58

WASHER, PLAIN (5MM)

33104-MKE-A50

$0.80

CAP, RUBBER

33105-MKE-A51

$3.90

SPRING, BEAM ADJUST

33107-MKE-A50

$4.62

RUBBER, FR. FENDER MOUNTING (Honda Code 0329987)

61103-357-000

Unavailable

COLLAR

61104-KZZ-900

$1.68

VISOR SET *NH187R*

61300-K1T-EU0ZA

$24.06

BOLT-WASHER, SPECIAL (6X22)

90104-KZZ-D20

$0.72

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.86

SCREW, TAPPING (5X12)

93903-25280

$1.23
