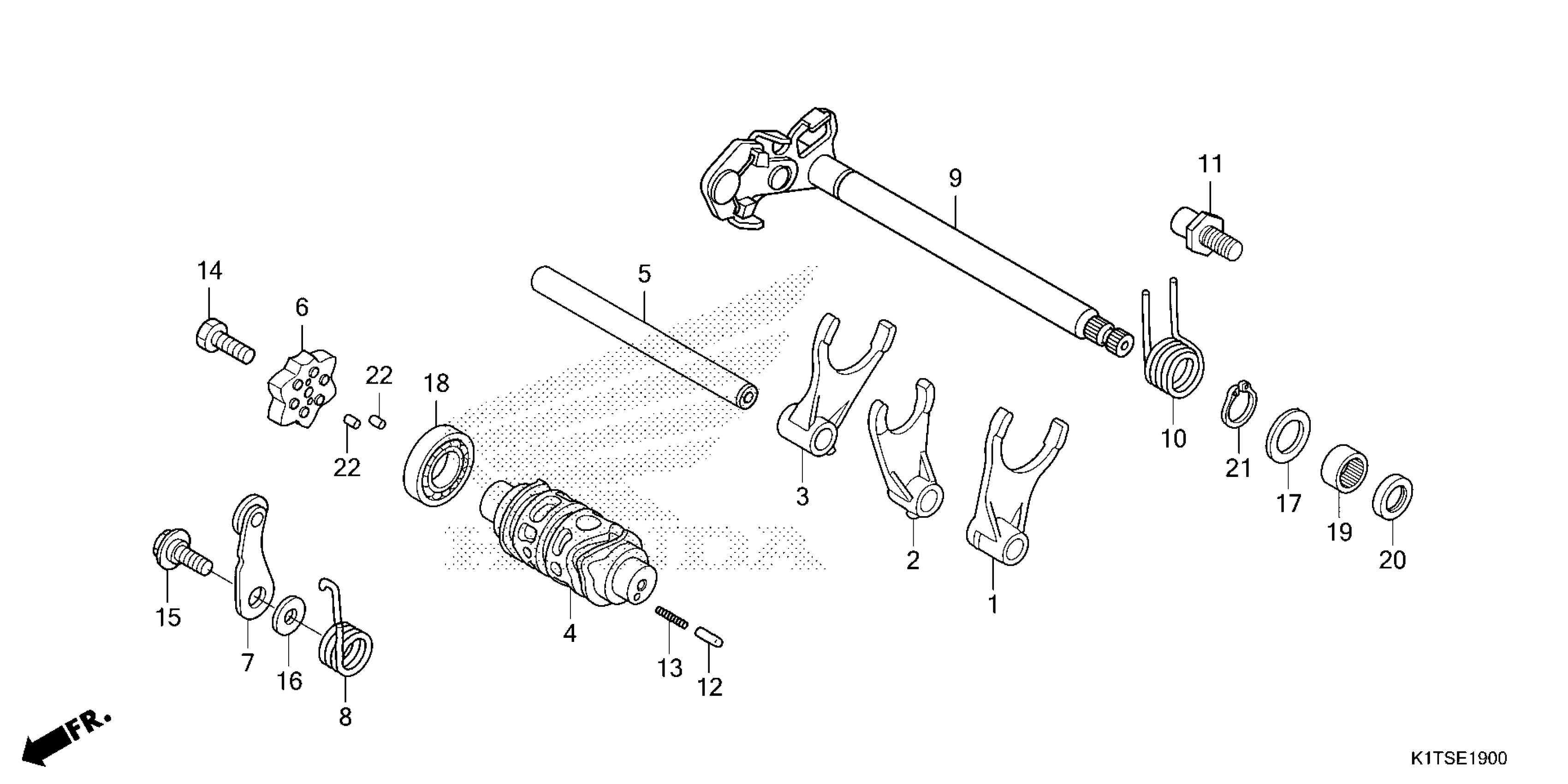

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 GEARSHIFT DRUM Diagram

FORK, L. GEARSHIFT

24211-KZZ-900

$24.79

FORK, CENTER GEARSHIFT

24212-KZZ-900

$24.46

FORK, R. GEARSHIFT

24213-KZZ-900

$24.79

DRUM, GEARSHIFT

24301-K0A-DB0

$7.39

SHAFT, GEARSHIFT FORK

24321-KYJ-900

$10.84

PLATE, GEARSHIFT DRUM STOPPER

24410-KYJ-900

$71.89

STOPPER, GEARSHIFT DRUM

24430-KGH-901

$11.56

SPRING, DRUM STOPPER

24435-KYJ-900

$1.49

SPINDLE, GEARSHIFT

24610-KYJ-900

$44.48

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.59

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.50

CAP, CHANGE SWITCH CONTACT

35751-KPH-900

$1.49

SPRING, CHANGE SWITCH CONTACT

35752-KRM-840

$1.49

BOLT, HEX. (6X20)

90003-KVS-900

$2.10

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.49

WASHER (6.1MM)

90435-HB3-000

$2.92

WASHER (14MM)

90457-KRM-840

$1.49

BEARING (6905)

91001-KYJ-711

$4.87

BEARING, RADIAL BALL (6905) | (Optional).

91015-MCA-003

$10.36

BEARING, NEEDLE (14X20X12) | (Optional).

91028-MGS-D21

$5.39

BEARING (14X20X12)

91108-KYJ-711

$1.61

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

ROLLER (3X8.5)

96220-30085

$1.49
