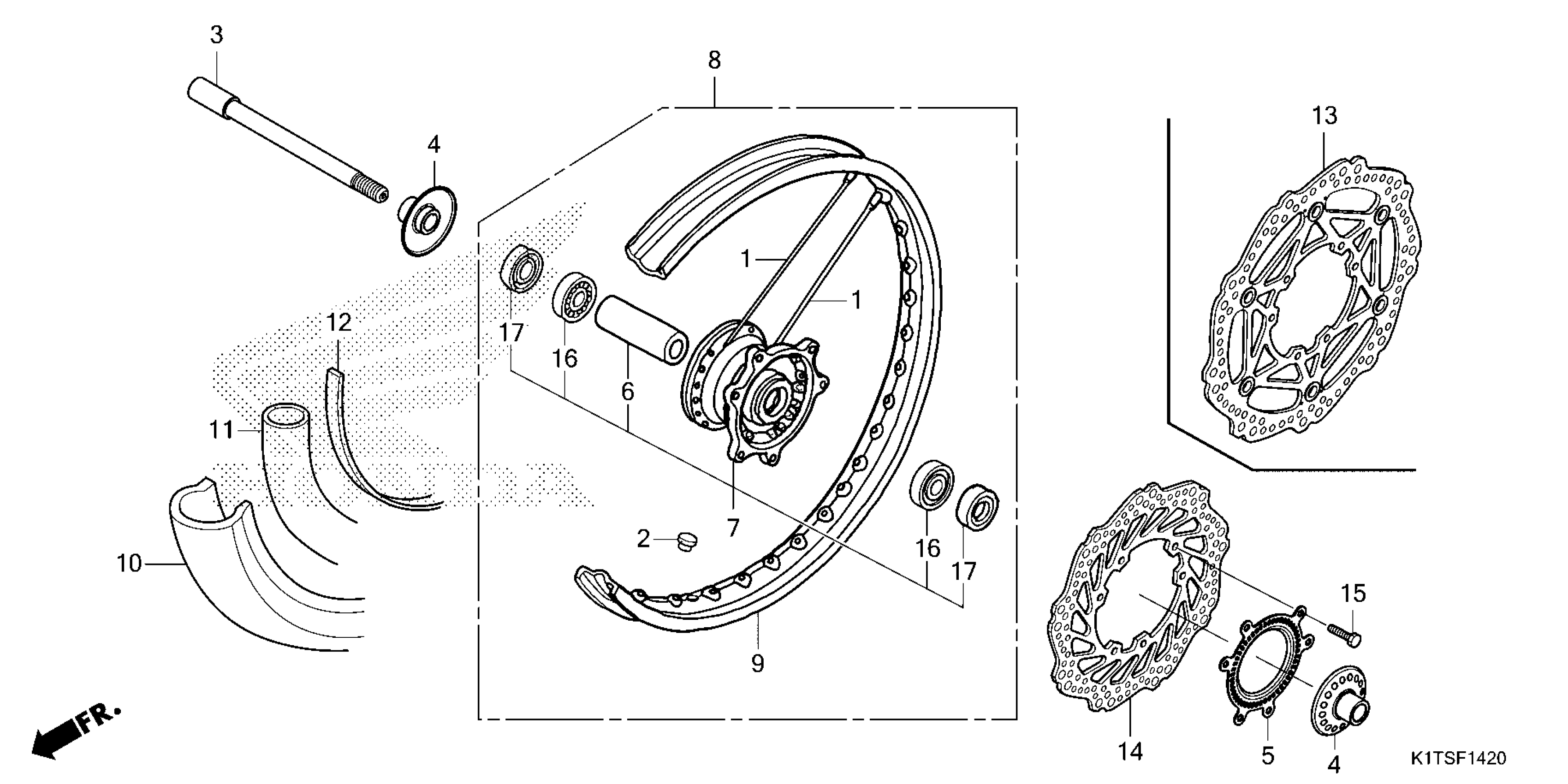

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 FRONT WHEEL Diagram

SPOKE SET, FR.

06440-KZZ-900

$2.31

CAP, RIM HOLE

42717-329-000

$4.21

AXLE, FR. WHEEL

44301-KZZ-J00

$57.94

COLLAR, FR. WHEEL SIDE

44310-KZZ-J00

$7.54

RING, FR. PULSER

44515-K1T-EB0

$49.73

COLLAR, FR. AXLE DISTANCE

44620-KZZ-J00

$3.90

HUB SUB-ASSY., FR.

44635-KZZ-J00

$71.33

WHEEL SUB-ASSY., FR.

44650-K1T-EM0

$297.08

RIM, FR. (21X1.60)

44701-K1T-EM1

$141.38

TIRE, FR. (80/100-21M/C 51P) (IRC)

44711-MKE-A52

$136.95

TUBE, TIRE (3.00-21)

44712-KAE-025

$39.48

FLAP, TIRE (IRC)

44713-KZZ-901

$3.03

DISK, FR. BRAKE

45351-KZZ-901

$58.97

BOLT, DISK (6X17)

90105-KZZ-900

$1.49

BEARING, RADIAL BALL (6003U)

91004-MCT-003

$13.49

BEARING, RADIAL BALL (6003)

91051-KSE-003

$12.03

BEARING, RADIAL BALL (6003U)

91051-KZZ-J00

$44.08

DUST SEAL (25X35X6)

91253-K35-V01

$2.16
