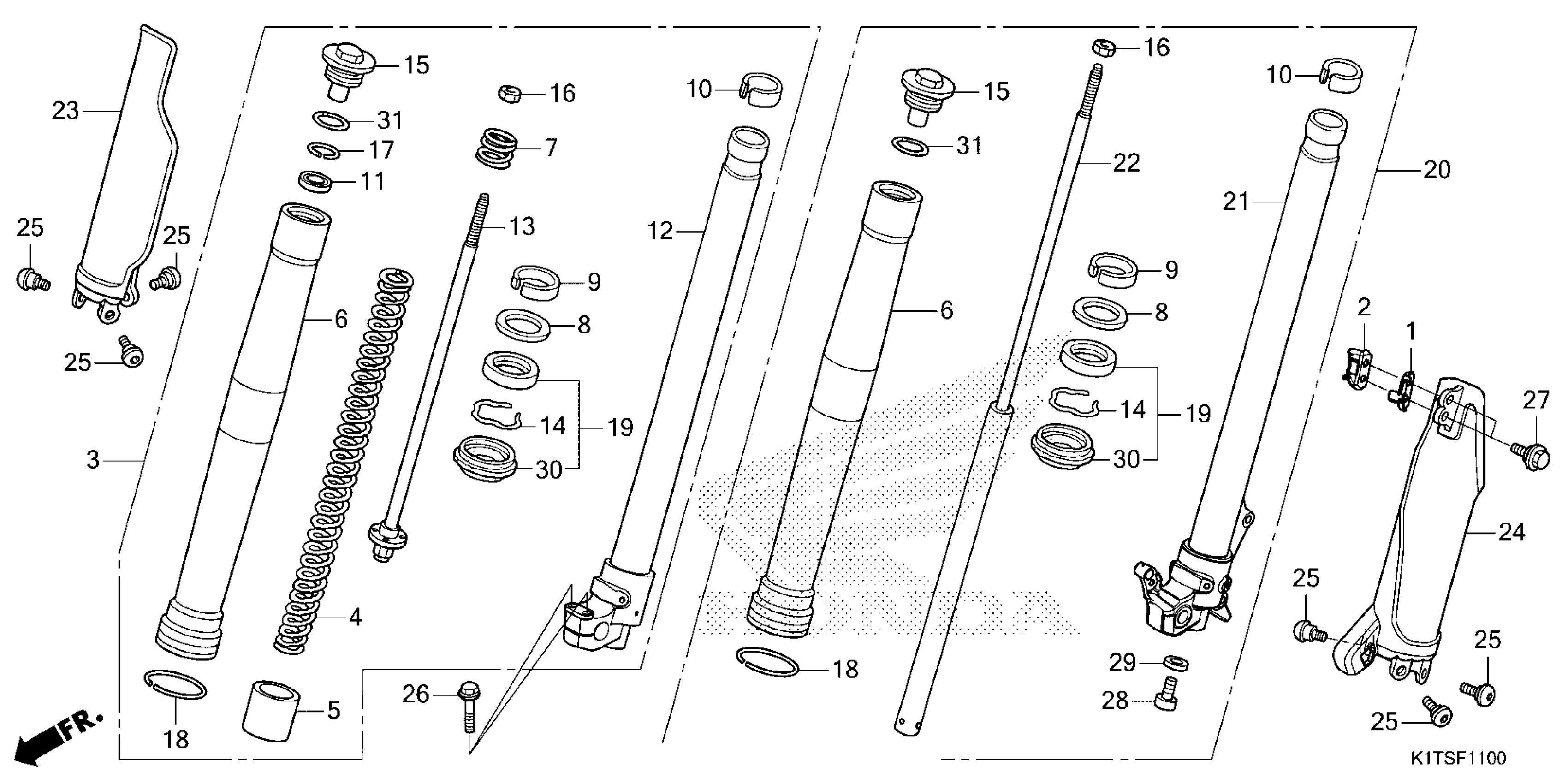

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-KZZ-J80

$7.00

2

CLAMP B, BRAKE HOSE

45462-KZZ-J80

$8.64

3

FORK ASSY., R. FR.

51400-K1T-TT1

Unavailable

4

SPRING, FR. FORK

51401-K1T-TG1

$44.38

5

COLLAR, SPRING

51402-KZZ-J01

$8.49

6

TUBE (OUTER)

51410-K1T-E11

$409.49

7

SPRING B, REBOUND

51412-K1T-E11

$8.26

8

RING, BACK-UP

51412-KA4-711

$9.65

9

BUSH, GUIDE

51414-MFN-D01

$7.08

10

BUSH, SLIDER

51415-MGP-D01

$14.84

11

SEAT, STOPPER

51419-KZZ-901

$6.61

12

PIPE, R. SLIDE

51425-K1T-EM1

$194.16

13

ROD

51426-K1T-T61

$27.54

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

15

BOLT, FR. FORK

51450-KZZ-901

$51.82

16

NUT, HEX. (10MM)

51451-MAJ-G41

$2.90

17

RING, STOPPER

51456-KZZ-901

$10.20

18

RING, WEAR

51476-MFB-003

$6.57

19

SEAL SET, FR. FORK

51490-KZZ-J01

$26.20

20

FORK ASSY., L. FR.

51500-K1T-TT1

Unavailable

21

PIPE, L. SLIDE

51525-K1T-EM1

$250.98

22

DAMPER, FR.

51530-K1T-TT1

Unavailable

23

PROTR, R. (TYPE4)

51610-K1T-EU0ZA

Unavailable

24

PROTR, L. (TYPE4)

51620-K1T-EU0ZA

Unavailable

25

BOLT, PROTECTOR (6MM)

90106-KZZ-900

$1.49

26

BOLT, FLANGE (8X40)

90107-MGE-000

$2.66

27

BOLT, FLANGE (6MM)

90113-KZZ-900

$1.49

28

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

29

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

30

DUST SEAL

91254-ML3-791

$16.10

31

O-RING (44.7X2.4)

91356-KZ3-003

$3.92
