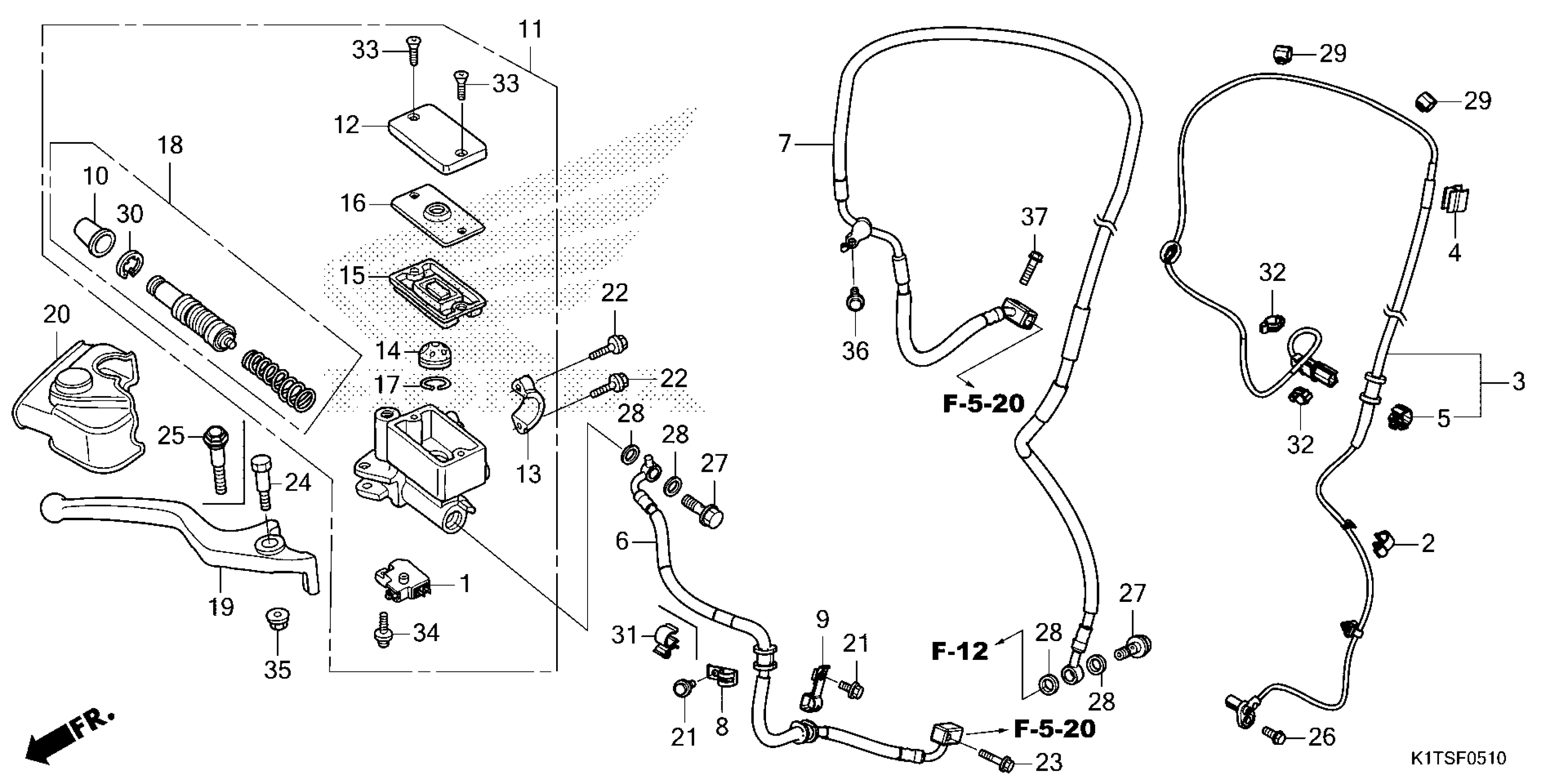

Honda CRF300LDAAC (25) MOTORCYCLE, THA, VIN# MLHND167-S5200001 TO MLHND167-S5299999 FRONT BRAKE MASTER CYLINDER Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

CLAMP, ABS WIRE (D12)

38517-MGE-003

$2.48

SENSOR, FR. WHEEL SPEED

38520-K1T-E51

$81.71

CLIP, ABS WIRE

38525-KZZ-J80

$4.23

CLIP, CONNECTOR (DARK BLUE)

42524-T5A-003

$2.65

HOSE A, FR. BRAKE

45124-K1T-E51

$41.90

HOSE D, FR. BRAKE

45127-K1T-E51

$103.46

CLAMP, FR. BRAKE HOSE

45181-KZZ-G40

$11.01

CLAMP B, FR. BRAKE HOSE

45182-KZZ-J80

$6.74

BOOT

45504-410-003

$10.93

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-KZZ-305

$66.84

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-KZZ-901.

45510-KZZ-305

$66.84

CAP, MASTER CYLINDER

45513-HA2-006

$24.74

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

SEPARATOR

45518-MEN-J01

$6.54

DIAPHRAGM

45520-MG7-006

$9.52

PLATE, DIAPHRAGM

45521-HA2-006

$9.75

RING

45523-KA3-731

$2.67

MASTER CYLINDER SET

45530-471-831

Unavailable

LEVER, R. HANDLEBAR (COO)

53175-KZZ-305

$9.66

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KZZ-900.

53175-KZZ-305

$9.66

COVER, R. HANDLE LEVER

53176-KZZ-901

$4.84

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.12

BOLT, FLANGE (6X22)

90013-GHB-660

$2.12

BOLT, FLANGE (6X25)

90013-GHB-670

$2.12

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

BOLT, FLANGE (6X14) (NOT AVAILABLE)

90117-KZZ-J80

$0.52

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

BAND, RUBBER (35MM)

90650-KZZ-J80

$2.80

CIRCLIP

90651-MA5-671

$2.38

CLIP, CABLE (12MM)

90690-MGS-D81

Unavailable

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, FLANGE (6MM)

94050-06000

$0.59

BOLT, FLANGE (6X18)

96001-06018-07

$1.14

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
