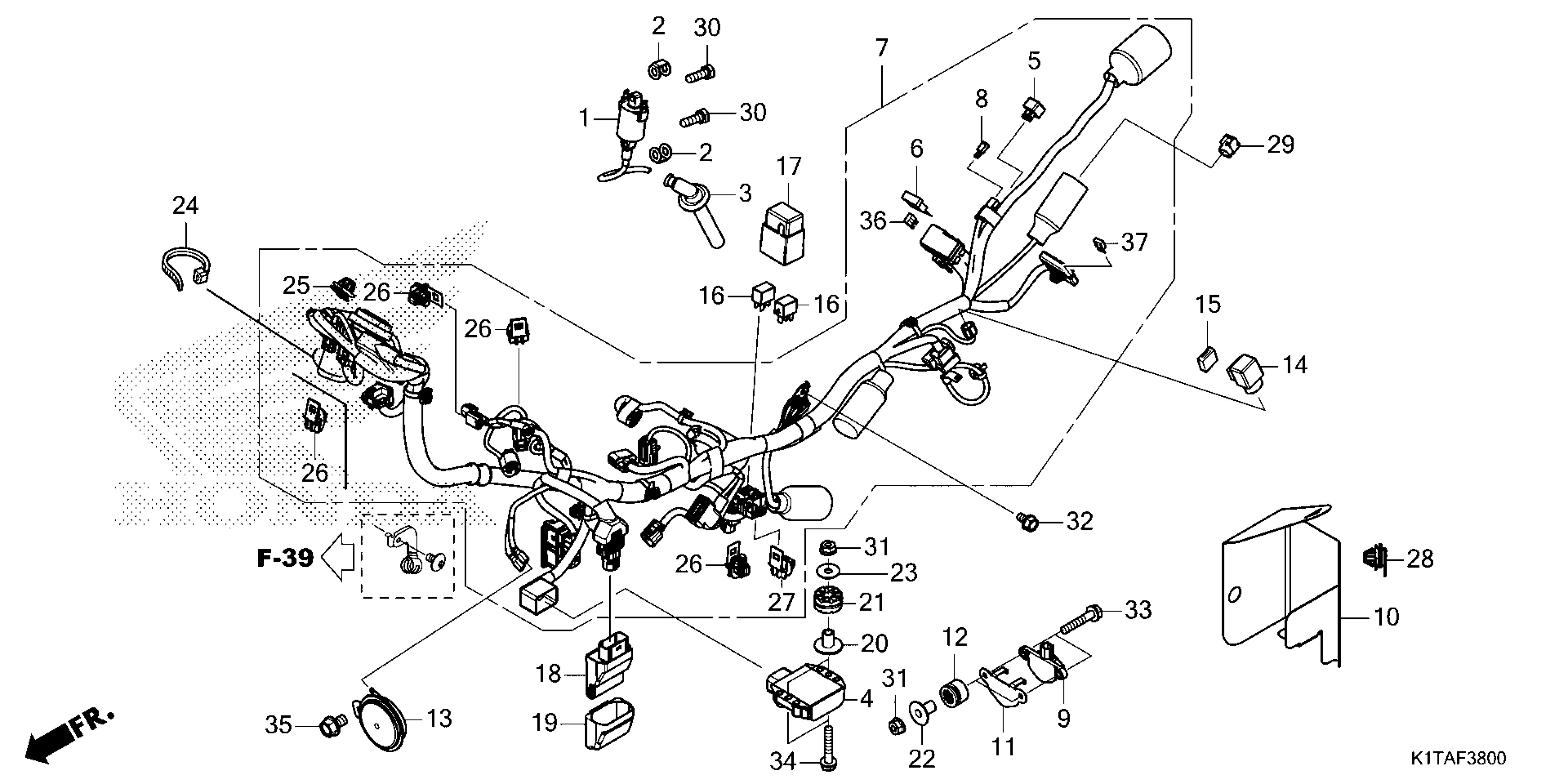

Honda CRF300LDAAC (23) MOTORCYCLE, THA, VIN# MLHND167-P5000001 WIRE HARNESS (1) Diagram

COIL, IGNITION

30510-K1T-E11

$19.71

SPACER, IGNITION COIL

30520-GFM-900

$2.41

CAP ASSY., NOISE SUPPRESSOR

30700-KZZ-901

$35.29

RECTIFIER ASSY., REGULATOR

31600-KZZ-J01

$97.22

RECTIFIER, SILICON

31700-MM8-610

$23.09

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$9.92

WIRE HARNESS

32100-K1T-AF0

$703.85

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$14.77

SENSOR ASSY., BANK ANGLE (M6)

35160-KVS-751

$100.22

RUBBER, HEAT GUARD

35161-K1T-E10

$8.21

STAY, BANK ANGLE SENSOR

35161-KZZ-900

$2.38

RUBBER, SPEEDOMETER MOUNTING

37244-MM4-000

$4.88

HORN (HIGH)

38110-KPP-T01

$32.35

RELAY, TURN SIGNAL (MITSUBA)

38301-KYJ-641

$69.44

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.87

RELAY, POWER (MICRO ISO 4P)

38501-MKR-D11

$12.03

COVER, RELAY (2P)

38506-KZZ-900

$3.34

PGM-FI UNIT

38770-K1T-AB1

$143.22

SUSPENSION, PGM-FI UNIT

38771-K1T-J10

$3.28

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

Unavailable

RUBBER B, SEAT MOUNTING

77208-KW7-900

$3.13

COLLAR, PILLION SEAT

77302-473-000

$3.99

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.69

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$3.56

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.24

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$3.95

CLIP, CONNECTOR (DARK GREEN)

91565-S0X-003

$3.35

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.52

CAP, DUMMY (6P) (RED)

91771-MKK-H11

$20.76

BOLT, HEX. (6X20)

92101-06020-4J

$1.28

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X10)

95701-06010-08

$1.62

BOLT, FLANGE (6X30)

95701-06030-00

$1.88

BOLT, FLANGE (6X32)

95701-06032-08

$1.88

BOLT, FLANGE (8X12)

95701-08012-08

$1.62

FUSE, MINI (10A)

98200-41000

$1.22

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.62
