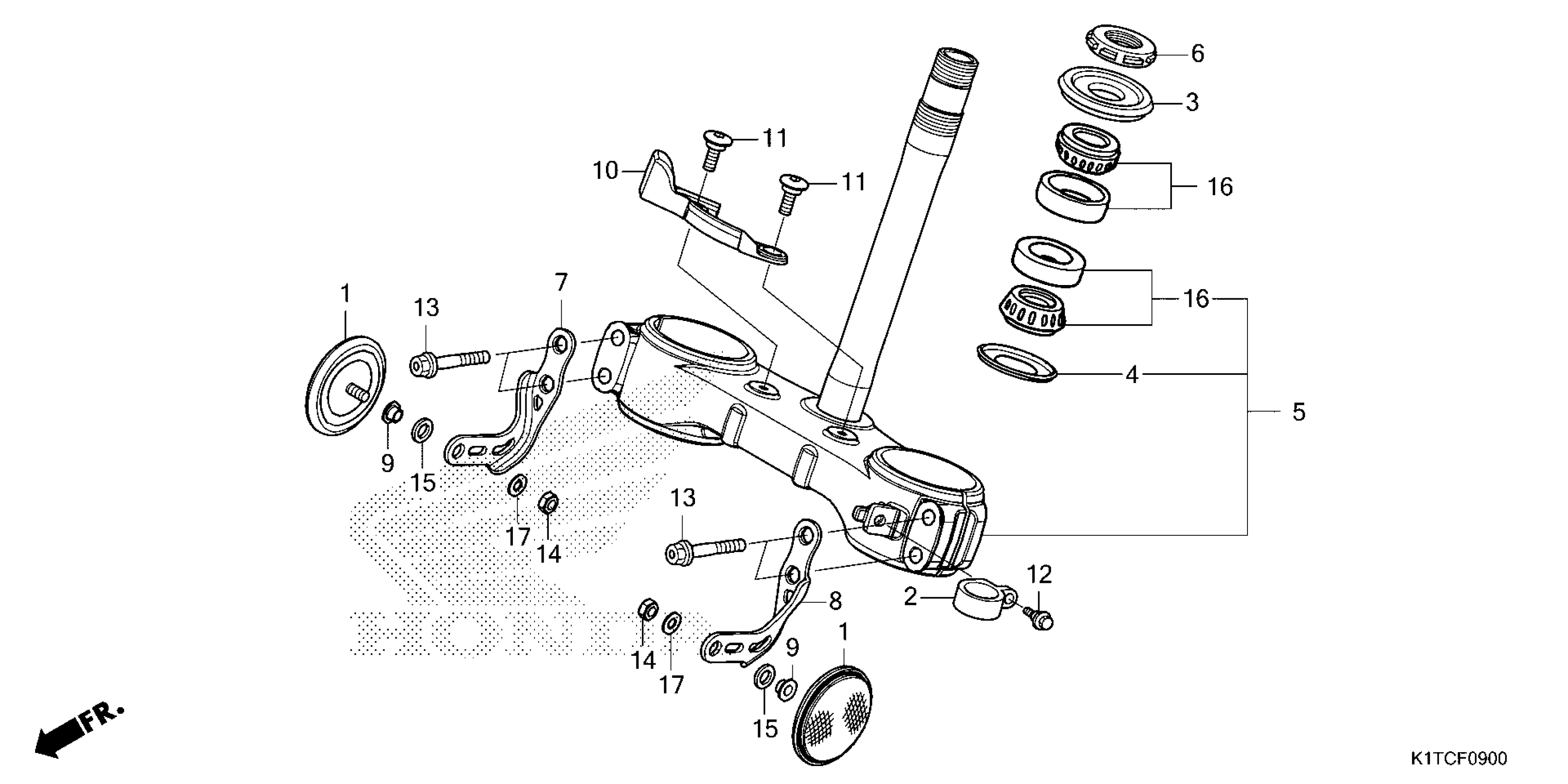

Honda CRF300LAC (24) MOTORCYCLE, THA, VIN# MLHND161-R5300001 STEERING STEM Diagram

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

GUIDE, FR. BRAKE HOSE

45468-KZZ-J80

$3.01

DUST SEAL, STEERING (UPPER)

53214-KZZ-901

$6.05

DUST SEAL, STEERING HEAD (ARAI)

53214-MCJ-751

$4.33

STEM SUB-ASSY., STEERING

53219-K1T-E10

$401.15

THREAD, STEERING HEAD TOP

53229-MN1-650

$15.31

BRACKET, R. SIDE REFLECTOR

60114-K1T-A10

$13.66

BRACKET, L. SIDE REFLECTOR

60115-K1T-A10

$13.66

COLLAR, REFLECTOR

61101-K1T-A10

$1.49

BOLT, FLANGE (6MM)

90113-KZZ-900

$1.49

BOLT, FLANGE (8X45)

90155-KZZ-J00

$1.49

NUT, U (6MM)

90301-VK9-A31

$1.49

WASHER, RUBBER

90514-K1T-E10

$1.49

BEARING, HEAD PIPE (UPPER) (NACHI) This part replaces 91015-425-831.

91015-425-832

$31.00

BEARING, HEAD PIPE (UPPER) (NACHI)

91015-425-832

$31.00

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

WASHER, PLAIN (6MM) (USED ON TAILLIGHT)

94101-06800

$1.49
