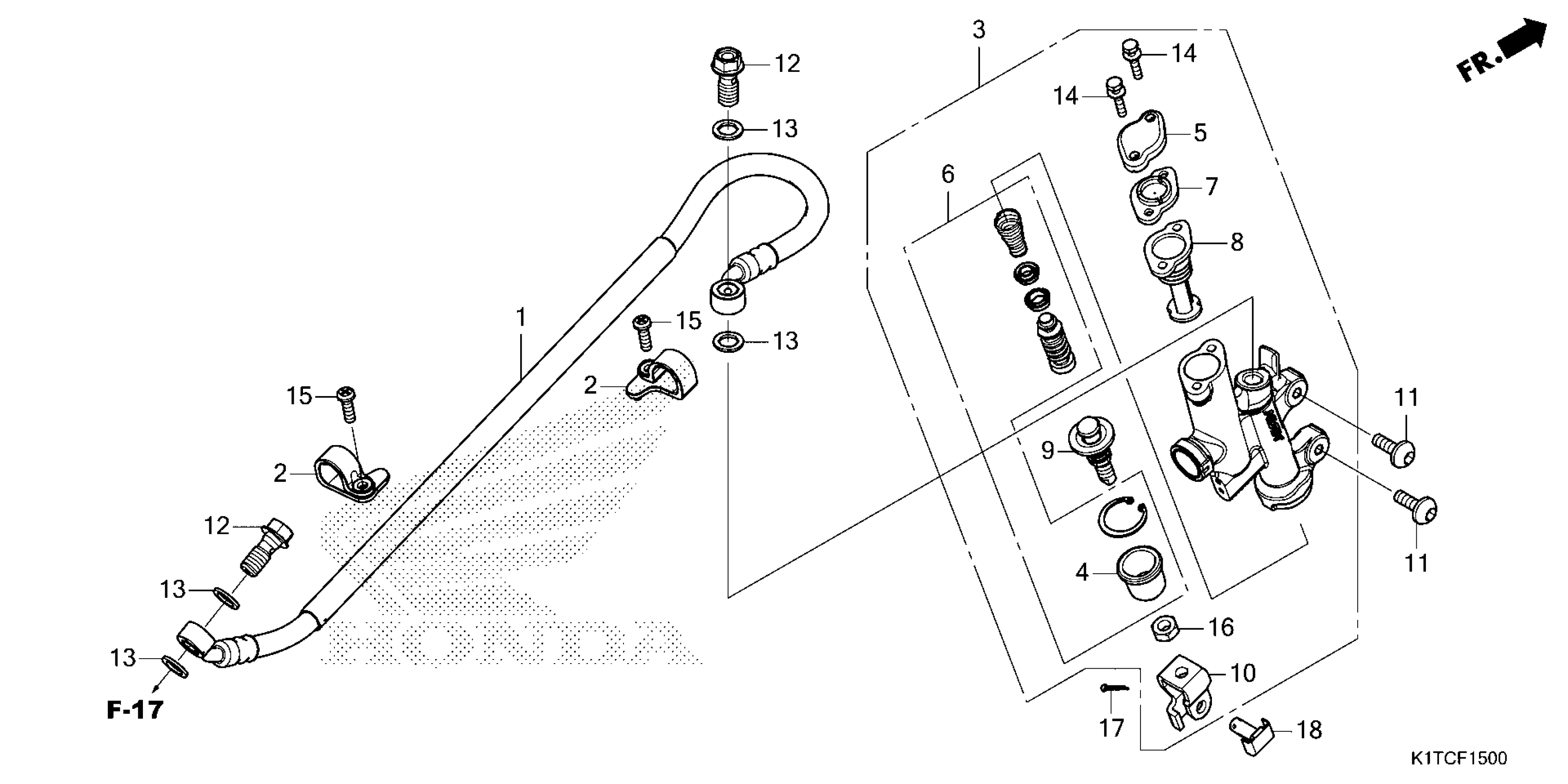

Honda CRF300LAC (24) MOTORCYCLE, THA, VIN# MLHND161-R5300001 REAR BRAKE MASTER CYLINDER (CRF300L/LR) Diagram

HOSE, RR. BRAKE

43310-K1T-T01

$23.11

GUIDE, BRAKE HOSE

43468-KZZ-J00

$2.54

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)

43500-K1T-E11

$195.21

BOOT

43504-MB2-006

$10.04

CAP, MASTER CYLINDER

43513-K1T-E11

$34.84

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

PLATE, DIAPHRAGM

43521-K1T-E11

$2.49

DIAPHRAGM

43522-K1T-E11

$6.28

ROD, PUSH

43530-KZZ-901

$11.69

JOINT, BRAKE ROD

46504-KV6-702

$7.84

BOLT, BRAKE DISK (6X17)

90106-KGH-600

$2.98

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

BOLT-WASHER (4X16)

93401-04016-00

$1.49

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, COTTER (2.0X12)

94201-20120

$1.49

PIN D, JOINT

95015-54000

$4.24
