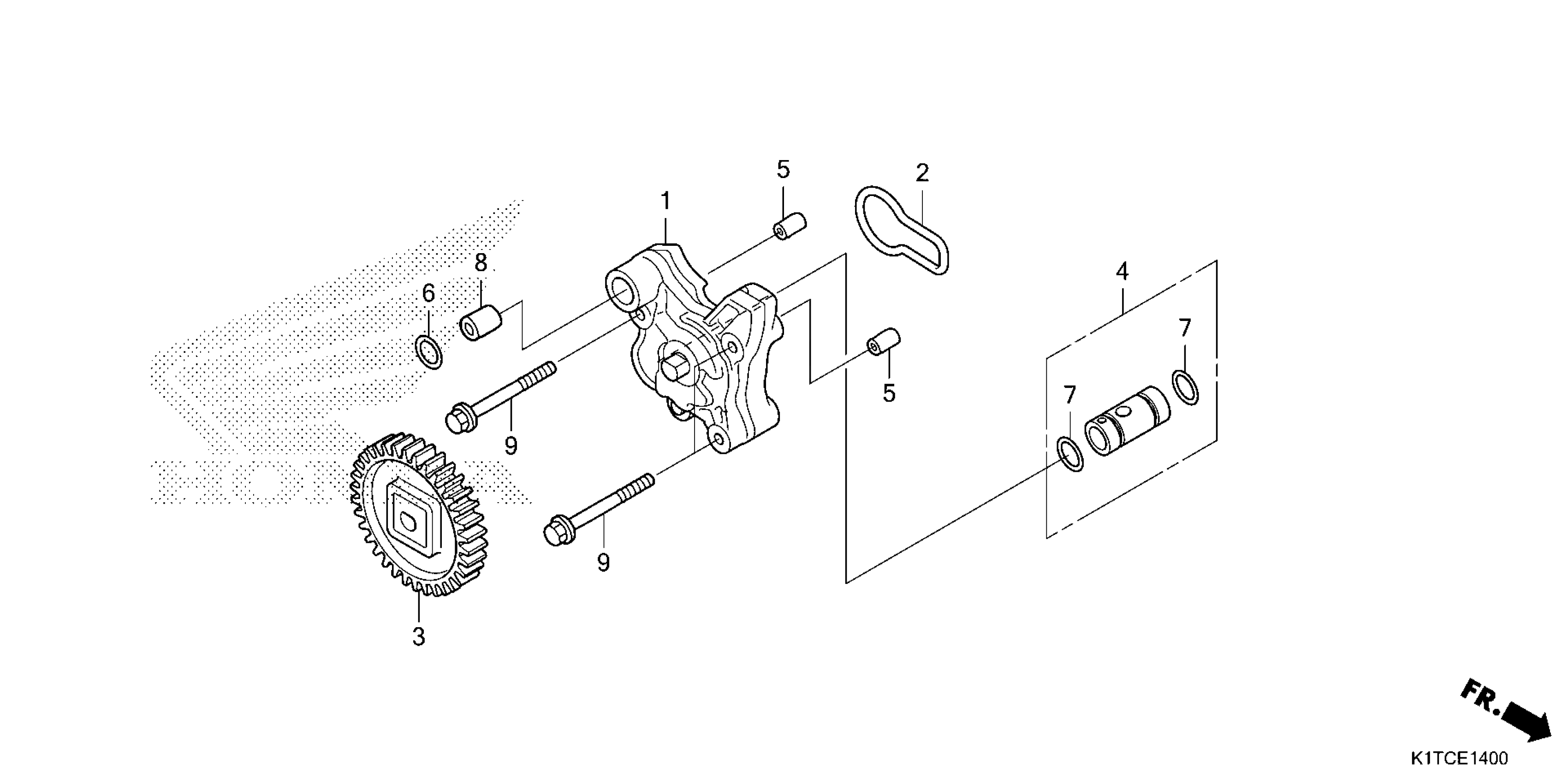

Honda CRF300LAC (24) MOTORCYCLE, THA, VIN# MLHND161-R5300001 OIL PUMP Diagram

#

Description

Price

1

PUMP ASSY., OIL

15100-KYJ-900

$83.90

2

GASKET, OIL PUMP

15119-KYJ-710

$1.49

3

GEAR, OIL PUMP (32T)

15130-K0A-DB0

$6.10

4

VALVE ASSY., RELIEF

15220-KYJ-900

$31.64

5

PIN, DOWEL (8X12)

90702-KFM-900

$1.49

6

O-RING (11.8X1.9)

91301-KYJ-710

$1.49

6

O-RING (11.8X1.9)

91301-KYJ-901

$1.49

7

O-RING (11.8X1.9)

91301-KYJ-901

$1.49

8

PIN A, DOWEL (12X16)

94301-12160

$2.27

9

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$2.06

9

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$2.06
