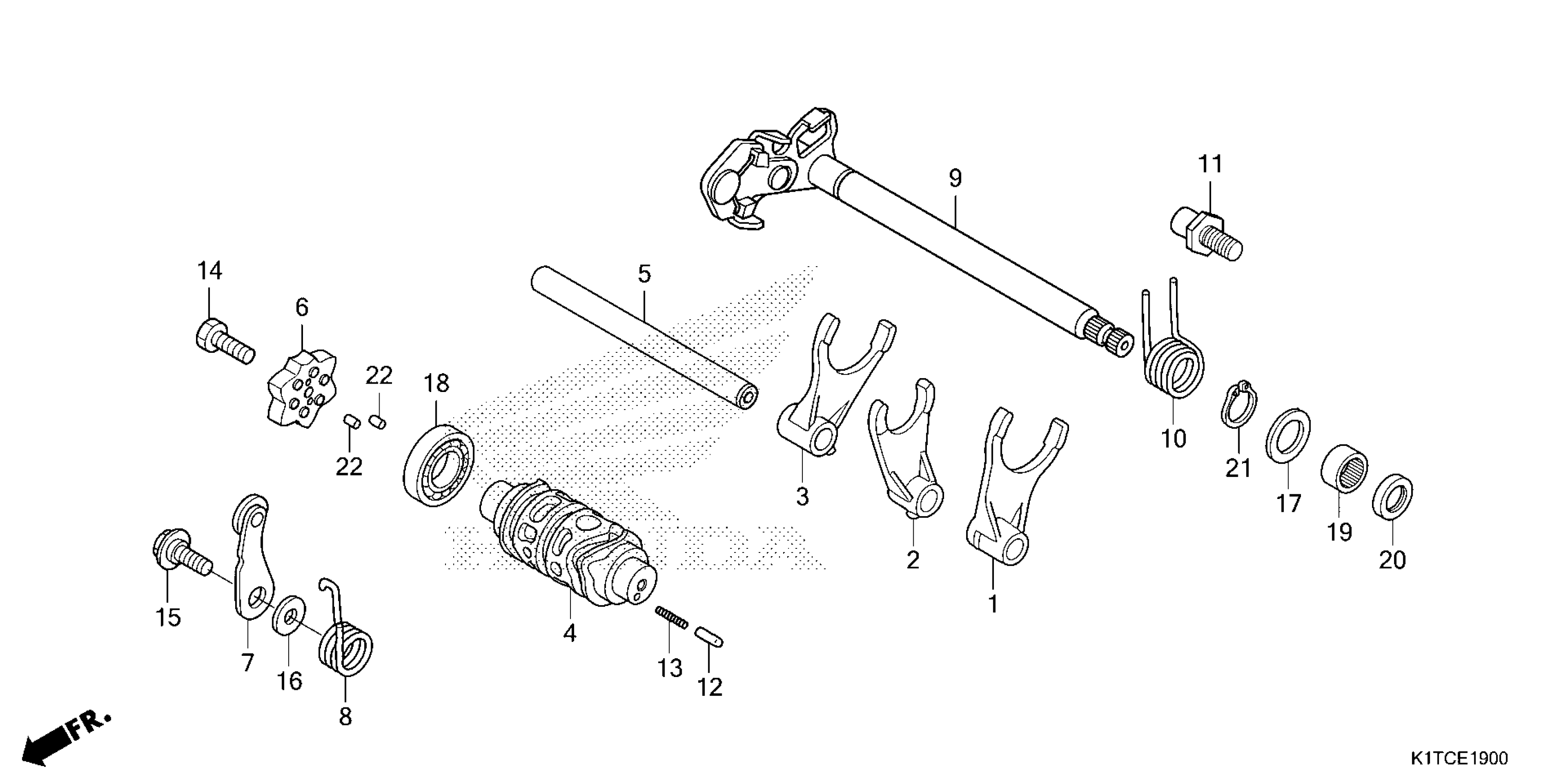

Honda CRF300LAC (24) MOTORCYCLE, THA, VIN# MLHND161-R5300001 GEARSHIFT DRUM Diagram

#

Description
Price

1

FORK, L. GEARSHIFT

24211-KZZ-900

$24.79

2

FORK, CENTER GEARSHIFT

24212-KZZ-900

$24.46

3

FORK, R. GEARSHIFT

24213-KZZ-900

$24.79

4

DRUM, GEARSHIFT

24301-K0A-DB0

$7.39

5

SHAFT, GEARSHIFT FORK

24321-KYJ-900

$10.84

6

PLATE, GEARSHIFT DRUM STOPPER

24410-KYJ-900

$71.89

7

STOPPER, GEARSHIFT DRUM

24430-KGH-901

$11.56

8

SPRING, DRUM STOPPER

24435-KYJ-900

$1.49

9

SPINDLE, GEARSHIFT

24610-KYJ-900

$44.48

10

SPRING, GEARSHIFT RETURN

24651-KRM-840

$2.59

11

PIN, SHIFT RETURN SPRING

24652-KRM-840

$6.50

12

CAP, CHANGE SWITCH CONTACT

35751-KPH-900

$1.49

13

SPRING, CHANGE SWITCH CONTACT

35752-KRM-840

$1.49

14

BOLT, HEX. (6X20)

90003-KVS-900

$2.10

15

PIVOT, SHIFT DRUM STOPPER ARM

90022-KRM-840

$1.49

16

WASHER (6.1MM)

90435-HB3-000

$2.92

17

WASHER (14MM)

90457-KRM-840

$1.49

18

BEARING (6905)

91001-KYJ-711

$4.87

18

BEARING, RADIAL BALL (6905) | (Optional).

91015-MCA-003

$10.36

19

BEARING, NEEDLE (14X20X12) | (Optional).

91028-MGS-D21

$5.39

19

BEARING (14X20X12)

91108-KYJ-711

$1.61

20

OIL SEAL (14X22X5) (ARAI)

91203-KSP-911

$1.98

21

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

22

ROLLER (3X8.5)

96220-30085

$1.49
