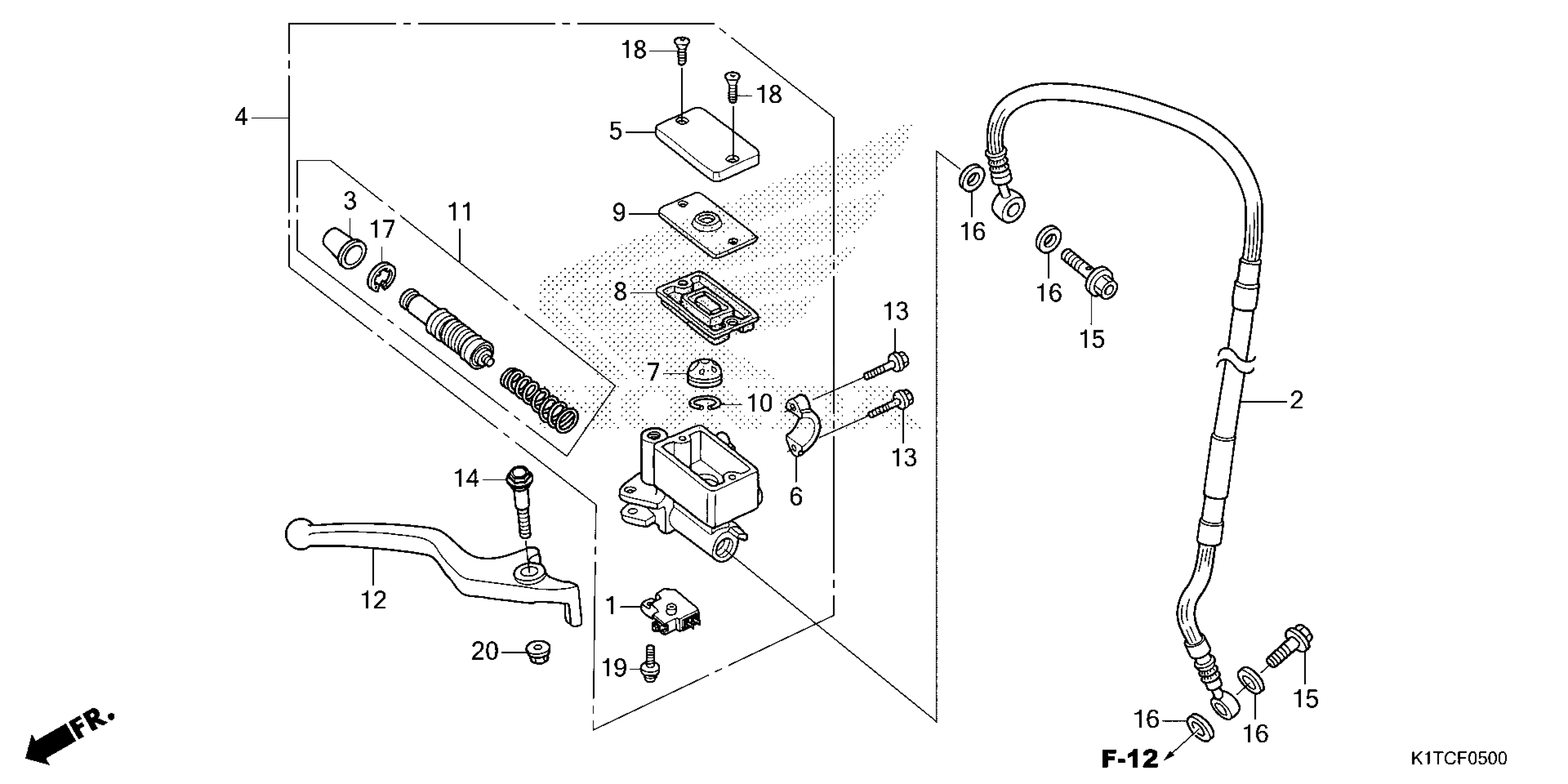

Honda CRF300LAC (24) MOTORCYCLE, THA, VIN# MLHND161-R5300001 FRONT BRAKE MASTER CYLINDER (CRF300L/LR) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE, FR. BRAKE

45125-K1T-T61

$35.54

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-KZZ-305

$76.67

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-KZZ-901.

45510-KZZ-305

$76.67

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

SEPARATOR

45518-MEN-J01

$7.18

DIAPHRAGM

45520-MG7-006

$10.61

PLATE, DIAPHRAGM

45521-HA2-006

$10.85

RING

45523-KA3-731

$2.92

MASTER CYLINDER SET

45530-471-831

$40.86

LEVER, R. HANDLEBAR (COO)

53175-KZZ-305

$11.08

LEVER, R. HANDLEBAR (COO) This part replaces 53175-KZZ-900.

53175-KZZ-305

$11.08

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

BOLT, LEVER PIVOT

90114-KZZ-J01

$10.99

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
