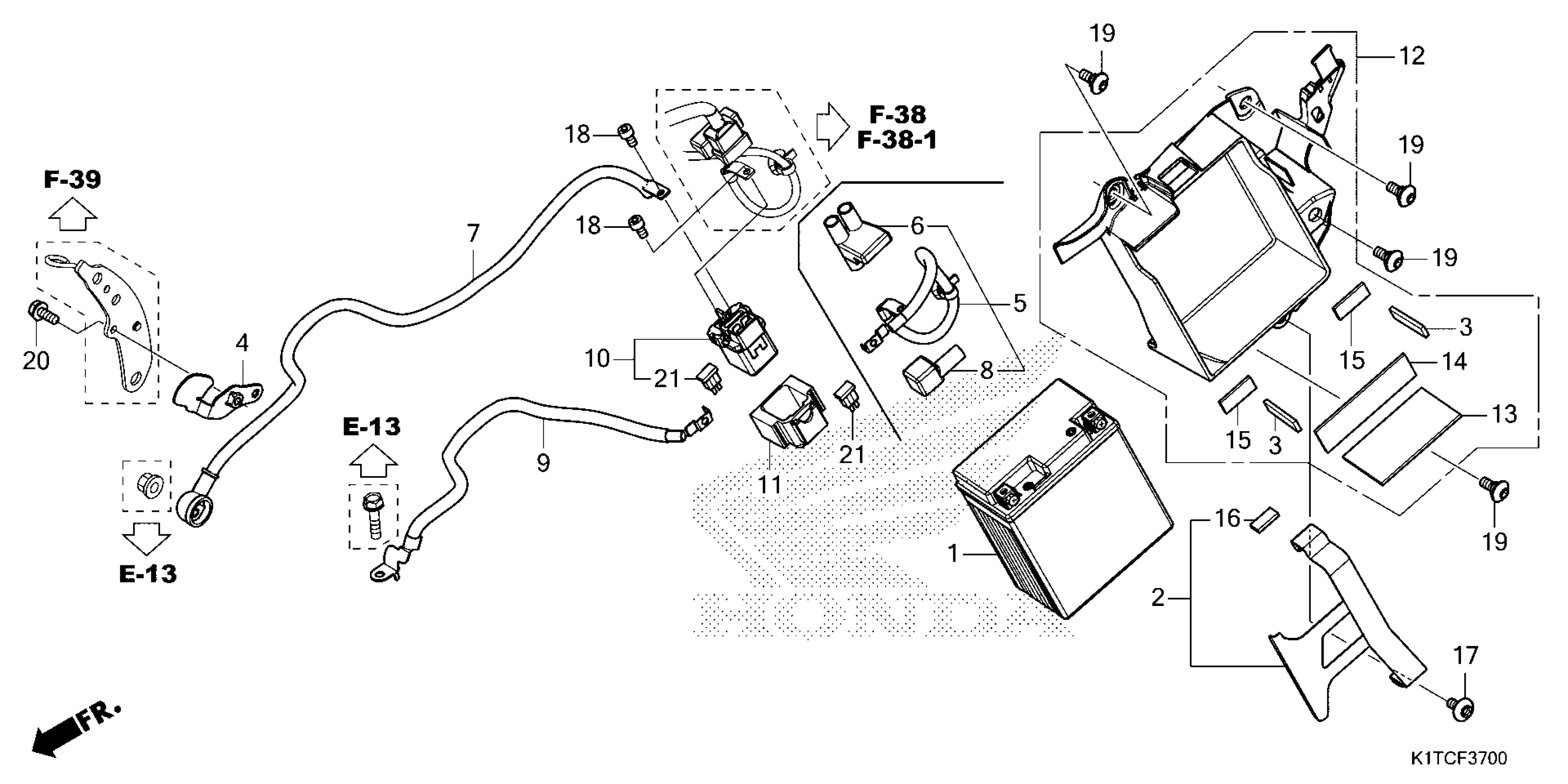

Honda CRF300LAC (24) MOTORCYCLE, THA, VIN# MLHND161-R5300001 BATTERY Diagram

#

Description
Price

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS) This part replaces 31500-KZZ-J11.

31500-K36-A01

$67.89

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS)

31500-K36-A01

$67.89

2

BAND, BATTERY

31510-K1T-E10

$30.79

3

RUBBER, BATTERY CUSHION

31511-KZZ-900

$1.52

5

CABLE, STARTER MAGNETIC BATTERY

32401-KZZ-900

$25.56

6

COVER, STARTER MAGNETIC TERMINAL

32406-MFF-D00

$31.85

7

CABLE, START MOTOR

32410-K1T-EB0

$8.59

8

COVER, BATTERY TERMINAL

32414-GAG-000

$4.03

9

CABLE, BATT GROUND

32601-K1T-EB0

$6.33

10

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$78.00

11

RUBBER, SHOCK ABSORBER

35856-MT3-000

$9.69

12

BOX COMP, BATTERY

50325-K1T-EB0

$19.57

13

RUBBER A

50326-K1T-EB0

$2.66

14

RUBBER B

50327-K1T-EB0

$1.92

15

RUBBER C

50328-K1T-EB0

$1.92

16

RUBBER, BATTERY (10X20X3)

50383-KZZ-900

$2.66

17

BOLT, SOCKET SPECIAL (6X12)

90101-K87-A00

$1.49

18

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

19

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.49

21

FUSE, BLADE (30A)

98200-33000

$1.49
