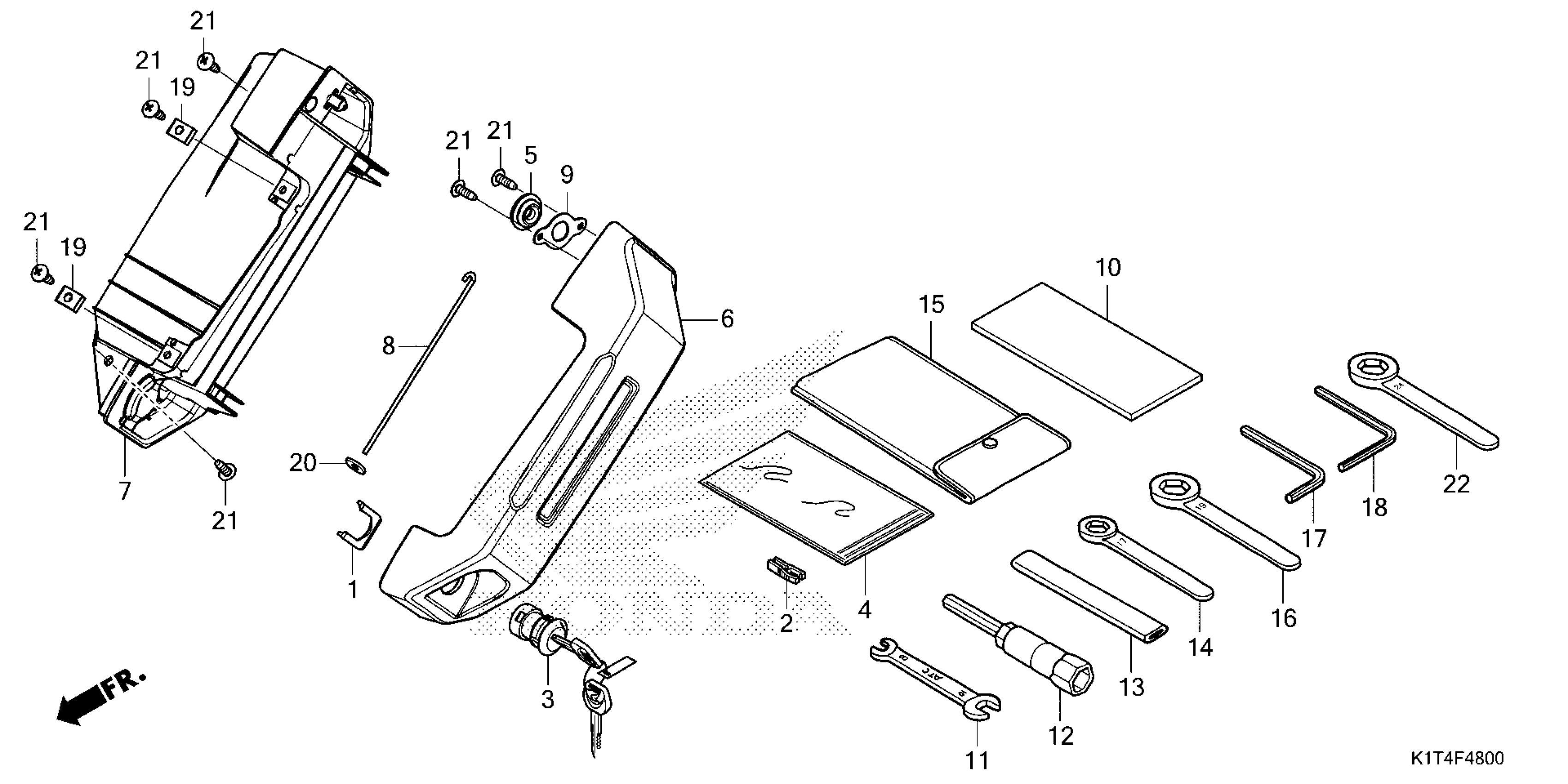

Honda CRF300LAC (22) MOTORCYCLE, THA, VIN# MLHND161-N5100001 TOOL@TOOL BOX Diagram

SPRING, LOCK KEY SETTING

37222-MCS-G00

$4.17

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$1.49

LOCK ASSY., POCKET LID

77233-MBL-611

$17.98

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

COVER, TOOL BOX

83602-K1T-E10

$56.02

BOX, TOOL

83603-K1T-E10

$17.40

HINGE, TOOL BOX

83604-KZZ-900

$1.49

PLATE, GROMMET

83605-K1T-E10

$2.21

SPONGE, TOOL BAG

89015-KZZ-910

$1.49

WRENCH, PLUG (16.5) (NA USE ALT:89216-MAT-000) | (Optional).

89216-KYJ-900

Unavailable

HANDLE, EYE WRENCH | (Optional).

89217-KGH-900

$1.49

WRENCH, EYE (17MM) (NOT AVAILABLE) | (Optional).

89218-MF5-000

$17.57

BAG, TOOL (160MM)

89219-KGH-900

$1.49

WRENCH, EYE (19MM) | (Optional).

89219-KWW-601

$4.67

WRENCH, HEX. (6MM)

89221-371-000

$4.28

WRENCH, HEX. (5MM)

89221-MGZ-J00

$2.21

NUT, SPRING (4MM)

90302-KWW-A00

$1.49

NUT, PUSH (2.6)

90310-ZB7-701

$2.18

SCREW, TAPPING (4X12)

93903-24380

$1.49

WRENCH, EYE (24MM) | (Optional).

99006-24000

$4.29
