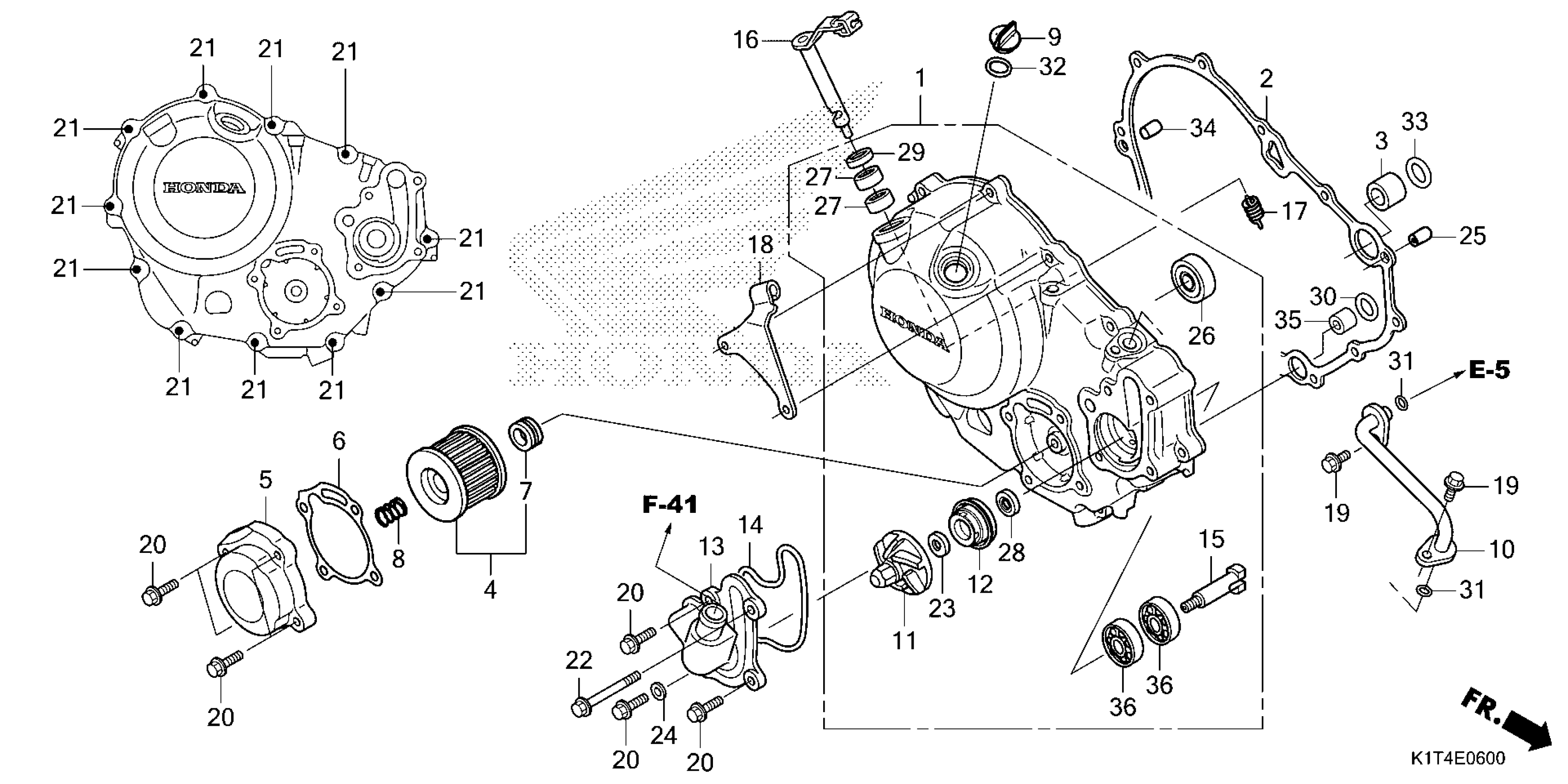

Honda CRF300LAC (22) MOTORCYCLE, THA, VIN# MLHND161-N5100001 RIGHT CRANKCASE COVER Diagram

#

Description
Price

1

COVER ASSY., R. CRANKCASE

11300-K1T-E10

$128.44

2

GASKET, R. CRANKCASE COVER

11394-K87-A30

$9.12

3

COLLAR, OIL PASSAGE (18MM)

15326-KT7-000

$2.83

4

ELEMENT, OIL FILTER

15410-KYJ-902

$5.72

5

COVER, OIL FILTER

15411-KZZ-900

$14.73

6

GASKET, OIL FILTER COVER

15412-KYJ-901

$5.23

7

RUBBER, FILTER

15413-MC8-000

Unavailable

8

SPRING, OIL FILTER ELEMENT SETTING

15414-KF0-000

$4.05

9

CAP, OIL FILLER

15611-KA4-710

$13.22

10

PIPE, WATER

19120-KZZ-900

$6.53

11

IMPELLER, WATER PUMP

19215-KGH-900

$4.81

12

SEAL, MECHANICAL

19217-P72-013

$50.32

13

COVER, WATER PUMP

19220-KZZ-900

$36.96

14

GASKET, WATER PUMP COVER

19226-KYJ-901

$1.49

15

SHAFT, WATER PUMP

19241-KZZ-D20

$11.06

16

LEVER, CLUTCH

22810-KZZ-900

$29.40

17

SPRING, CLUTCH LEVER

22815-KM7-700

$3.98

18

RECEIVER, CLUTCH CABLE

22821-KZZ-900

$9.51

19

BOLT, FLANGE (6X16) (NSHF)

90010-KYJ-900

$0.44

20

BOLT, FLANGE (6X25) (NSHF)

90012-KYJ-900

Unavailable

21

BOLT, FLANGE (6X30) (NSHF)

90013-KYJ-900

Unavailable

22

BOLT, FLANGE (6X65) (NSHF)

90015-KYJ-900

$0.79

23

WASHER (7.2X13X1.2)

90423-KJ9-000

$2.16

23

WASHER (7.2X13X1.2) This part replaces 90423-KW6-900.

90423-KJ9-000

$2.16

24

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

25

PIN, DOWEL (8X12)

90702-KFM-900

$0.62

26

BEARING, RADIAL BALL (6001U)

91009-KYJ-901

$17.34

27

BEARING, NEEDLE (12X16X10)

91053-MFJ-D01

$4.08

28

OIL SEAL (12X26X5)

91202-KTW-901

$9.60

29

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.83

30

O-RING (11.8X1.9)

91301-KYJ-901

$0.41

31

O-RING (9.8X2.4)

91302-KYJ-901

Unavailable

32

O-RING (18X3)

91307-035-000

$2.75

33

O-RING (17.8X1.9)

91322-K87-A30

$1.10

34

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.76

35

PIN A, DOWEL (12X16)

94301-12160

Unavailable

36

BEARING, RADIAL BALL (6001)

96100-60013-00

$10.00
