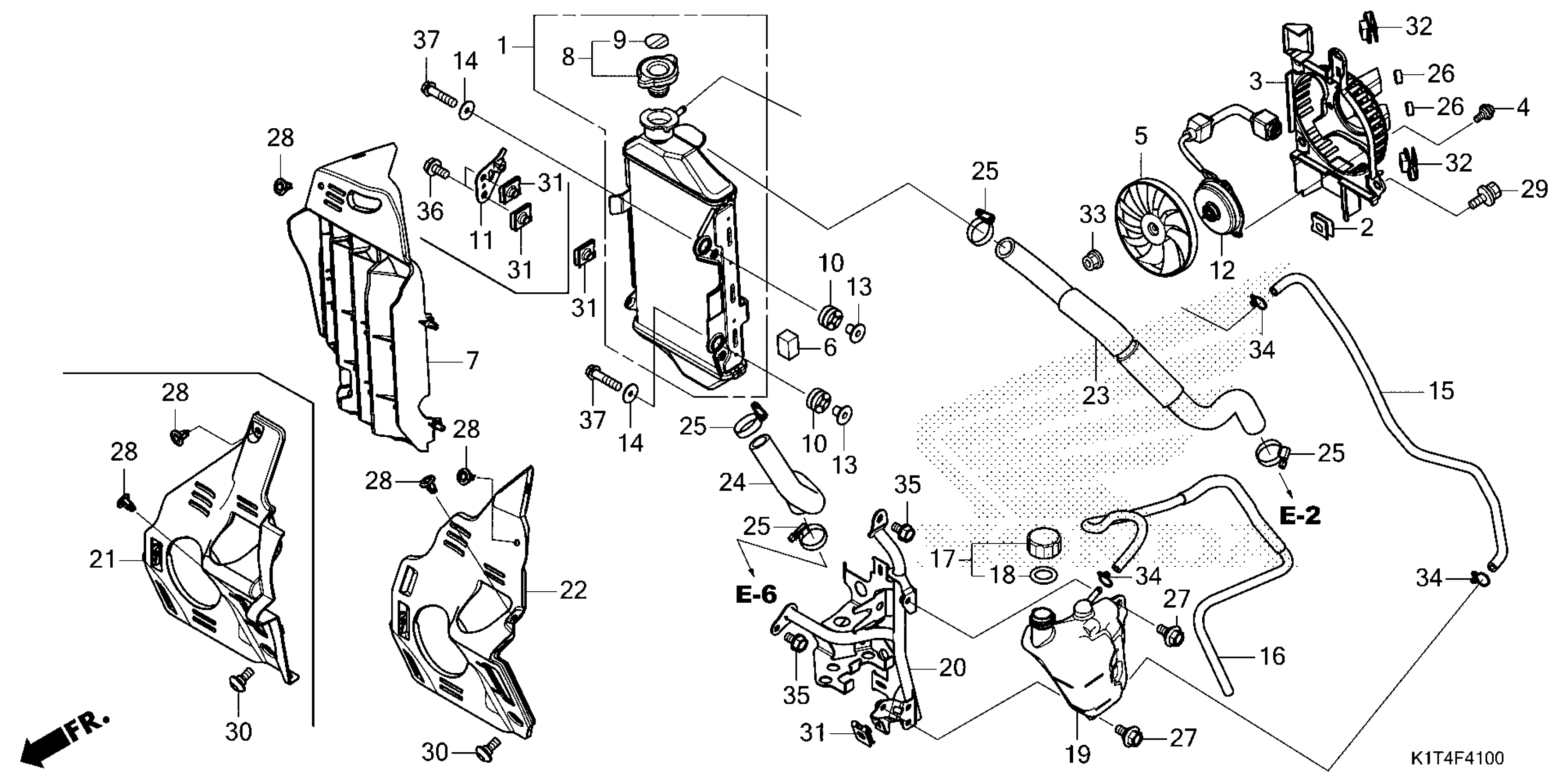

Honda CRF300LAC (22) MOTORCYCLE, THA, VIN# MLHND161-N5100001 RADIATOR Diagram

RADIATOR (TOYO)

19010-K1T-A11

$157.22

NUT, SETTING (6MM)

19014-KEA-003

$3.10

SHROUD (TOYO)

19015-K1T-E11

$8.86

SCREW, PAN (4X8.5)

19016-KEA-003

$1.62

FAN, COOLING

19020-KVZ-631

$29.32

RUBBER, RADIATOR

19022-KZZ-900

$2.15

GRILLE, RADIATOR

19034-K1T-E10

$19.90

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

RUBBER, RADIATOR MOUNTING

19051-KRN-000

$2.67

MOTOR ASSY., FAN (TOYO)

19080-K1T-E11

$143.20

COLLAR, RADIATOR MOUNTING

19091-KZZ-900

$1.49

WASHER, RADIATOR MOUNTING

19092-KZZ-900

$1.49

TUBE, RESERVE TANK

19101-K1T-E10

$15.30

TUBE, RESERVE TANK DRAIN

19102-K1T-E10

$19.46

CAP ASSY., RESERVE TANK

19105-KZZ-900

$5.14

GASKET, RESERVE TANK

19107-MG8-000

$5.05

TANK, RADIATOR RESERVE

19110-K1T-E10

$13.62

STAY, RESERVE TANK

19150-K1T-E10

$41.23

COVER, FR. RESERVE TANK

19160-K1T-E50

$12.27

HOSE, RADIATOR (UPPER)

19501-K1T-E10

$33.69

HOSE, RADIATOR (LOWER)

19502-K1T-E10

$16.21

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

COLLAR, RR. FENDER

80108-K45-N40

$1.49

BOLT, FLANGE (6MM)

90110-K1T-E10

$1.49

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

BOLT-WASHER (6X16)

90120-KCR-003

$4.39

SCREW, PAN (6X14)

90133-KPP-T00

$1.49

NUT, CLIP (6MM)

90303-KZZ-J00

$1.49

NUT, CLIP (6MM)

90311-MT3-000

$5.78

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
