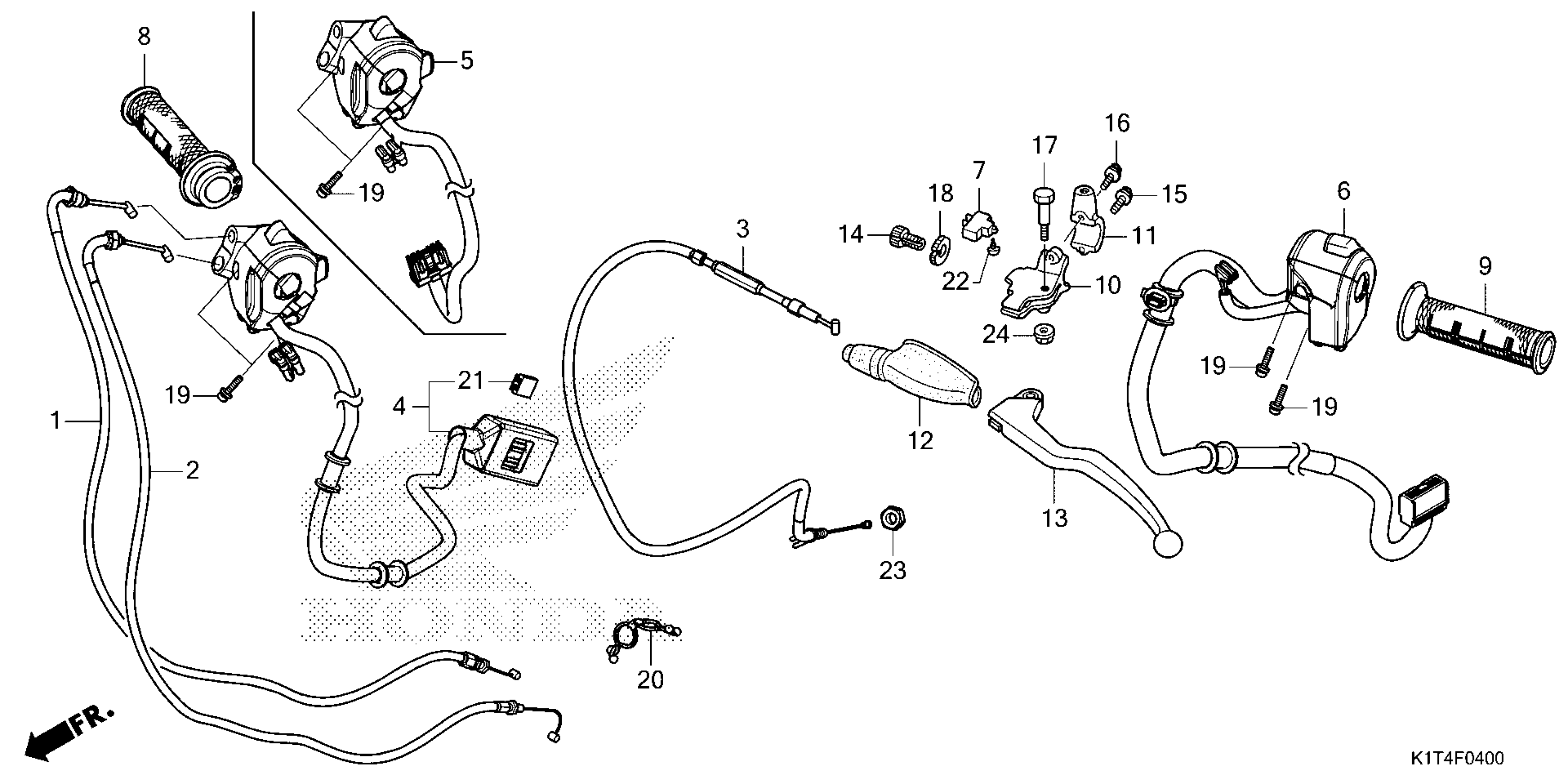

Honda CRF300LAC (22) MOTORCYCLE, THA, VIN# MLHND161-N5100001 HANDLE LEVER@SWITCH@CABLE Diagram

CABLE A, THROTTLE

17910-KZZ-900

$13.49

CABLE B, THROTTLE

17920-KZZ-900

$12.78

CABLE, CLUTCH

22870-K1T-E51

$14.82

SW ASSY., ENG STOP

35130-K1T-E52

$72.12

SWITCH ASSY., TURN SIGNAL

35200-K1T-E52

$71.60

SWITCH ASSY., CLUTCH

35330-MK5-003

$17.76

GRIP, THROTTLE (COO)

53140-KZZ-305

$8.17

GRIP, THROTTLE (COO) This part replaces 53140-KZZ-900.

53140-KZZ-305

$8.17

GRIP, L. HANDLE (COO)

53150-KZZ-305

$8.71

GRIP, L. HANDLE (COO) This part replaces 53150-KZZ-900.

53150-KZZ-305

$8.71

BRACKET, L. HANDLE LEVER

53172-KZZ-900

$14.79

HOLDER, L. LEVER BRACKET

53174-KZZ-900

$16.07

COVER, L. HANDLE LEVER

53177-KZZ-900

$2.92

LEVER, L. HANDLE

53178-K1T-E10

$18.17

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

BOLT, FLANGE (6X20)

90013-GHB-650

$2.33

BOLT, FLANGE (6X20)

90013-GHB-650

$2.33

BOLT, HANDLE LEVER PIVOT

90113-HA0-770

$3.67

NUT, FIXING

90321-315-670

$7.31

SCREW-WASHER (5X20)

90507-MGZ-J00

$1.49

CLIP, PURSE LOCK

90647-657-671

$5.67

SCREW, TAPPING (3X12)

93901-32320

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, FLANGE (6MM)

94050-06070

$1.49
