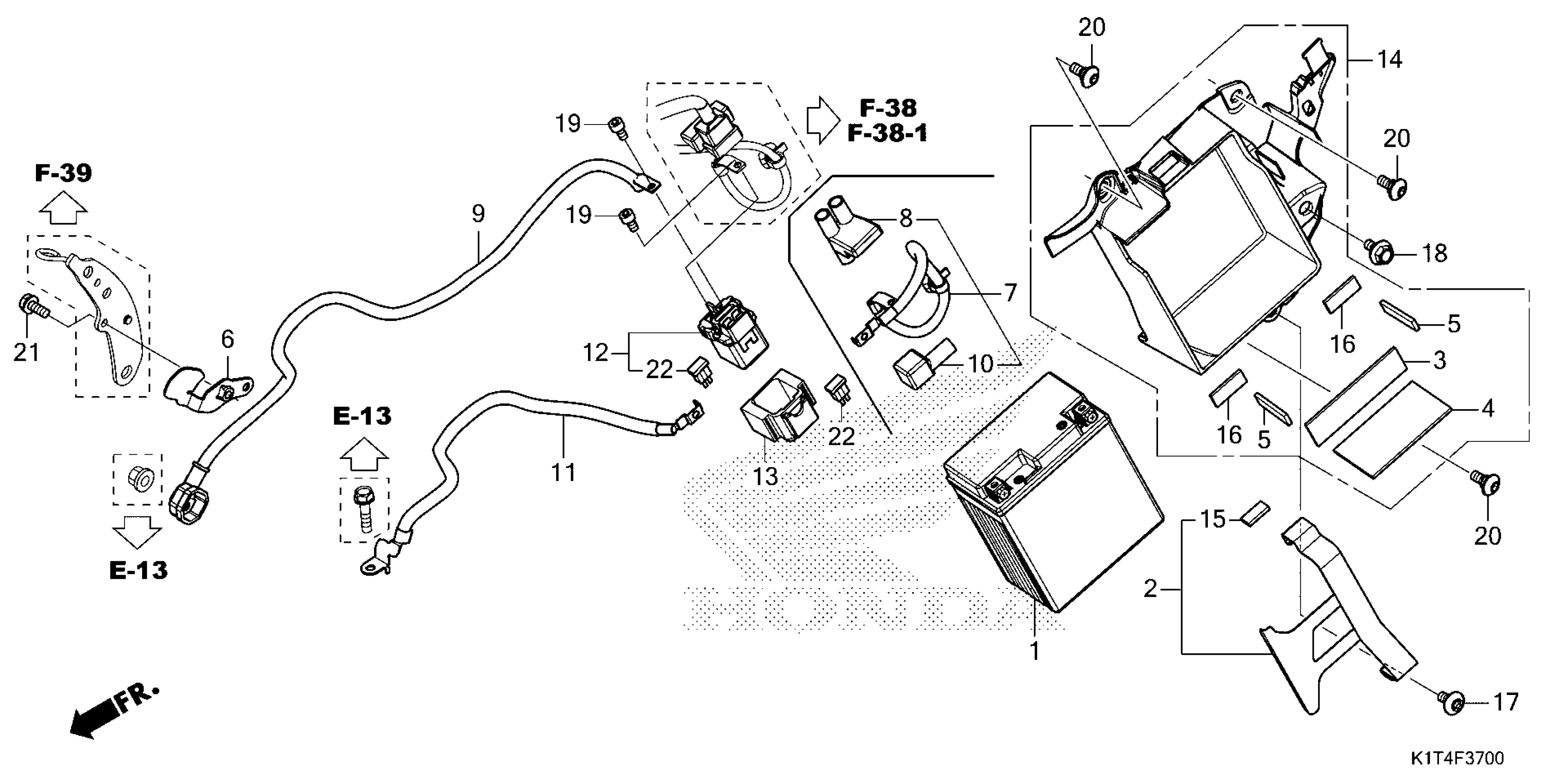

Honda CRF300LAC (22) MOTORCYCLE, THA, VIN# MLHND161-N5100001 BATTERY Diagram

#

Description
Price

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS) This part replaces 31500-KZZ-J11.

31500-K36-A01

$59.19

1

BATTERY ASSY. (GTZ8V) (YUASA) (MSDS)

31500-K36-A01

$59.19

2

BAND, BATTERY

31510-K1T-E10

$27.22

3

RUBBER, BATTERY MOUNTING

31511-088-740

$2.48

4

RUBBER, BATTERY CUSHION

31511-KE2-850

$3.52

5

RUBBER, BATTERY CUSHION

31511-KZZ-900

$0.93

7

CABLE, STARTER MAGNETIC BATTERY

32401-KZZ-900

$22.59

8

COVER, STARTER MAGNETIC TERMINAL

32406-MFF-D00

$28.16

9

CABLE, STARTER MOTOR

32410-K1T-E10

$15.07

10

COVER, BATTERY TERMINAL

32414-GAG-000

$3.57

11

CABLE, BATTERY GROUND

32601-K1T-E10

$11.16

12

SWITCH ASSY., STARTER MAGNETIC

35850-MT4-003

$70.03

13

RUBBER, SHOCK ABSORBER

35856-MT3-000

$8.83

14

BOX, BATTERY

50325-K1T-E10

$37.72

15

RUBBER, BATTERY (10X20X3)

50383-KZZ-900

$2.35

16

CUSHION, NUMBER PLATE

84703-KC2-960

$0.88

17

BOLT, SOCKET SPECIAL (6X12)

90101-K87-A00

Unavailable

18

BOLT, FLANGE (6MM)

90110-K1T-E10

$1.09

19

BOLT, SOCKET (5X9)

90111-MR5-000

$2.38

20

SCREW, SPECIAL (6X14)

90127-MKN-D50

$1.22

22

FUSE, BLADE (30A)

98200-33000

$1.19
