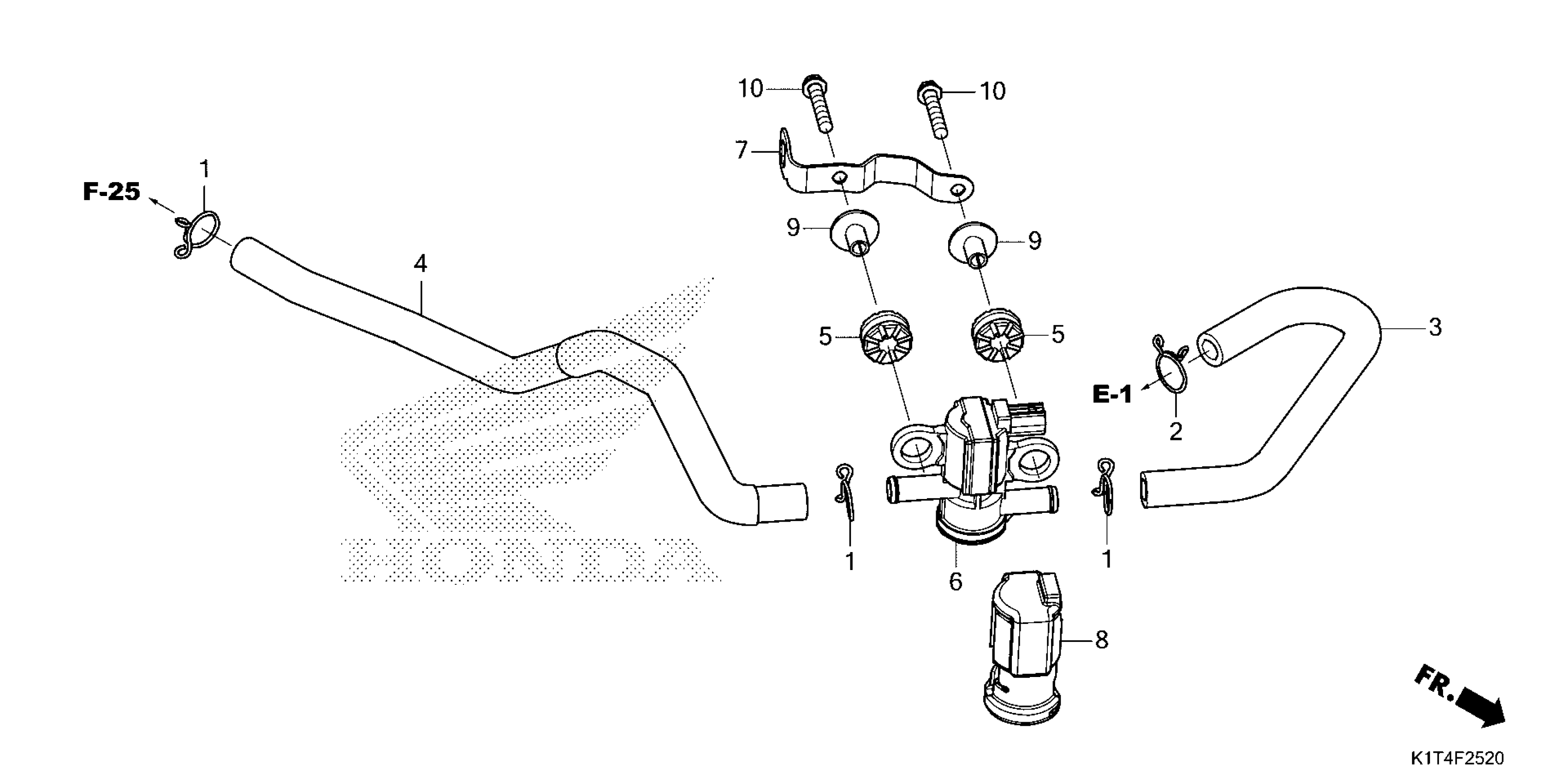

Honda CRF300LAC (22) MOTORCYCLE, THA, VIN# MLHND161-N5100001 AIR INJECTION SOLENOID VALVE Diagram

#

Description

Price

1

CLIP, BREATHER TUBE

15772-551-000

$2.05

2

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

3

TUBE (AISV-ENGINE)

18651-K1T-E10

$11.57

4

TUBE (AISV-AIR CLEANER)

18653-K1T-E10

$18.98

5

RUBBER, HEADLIGHT

33115-KVK-900

$1.49

6

VALVE ASSY., AIR INJECTION SOLENOID

36450-KVK-902

$62.61

7

STAY, CONNECTOR

36451-K1T-E10

$3.80

8

COVER (AISV)

36452-K1T-E10

$4.13

9

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

10

BOLT, FLANGE (6X28)

96001-06028-07

$1.51

10

BOLT, FLANGE (6X28) This part replaces 96001-06028-08.

96001-06028-07

$1.51
