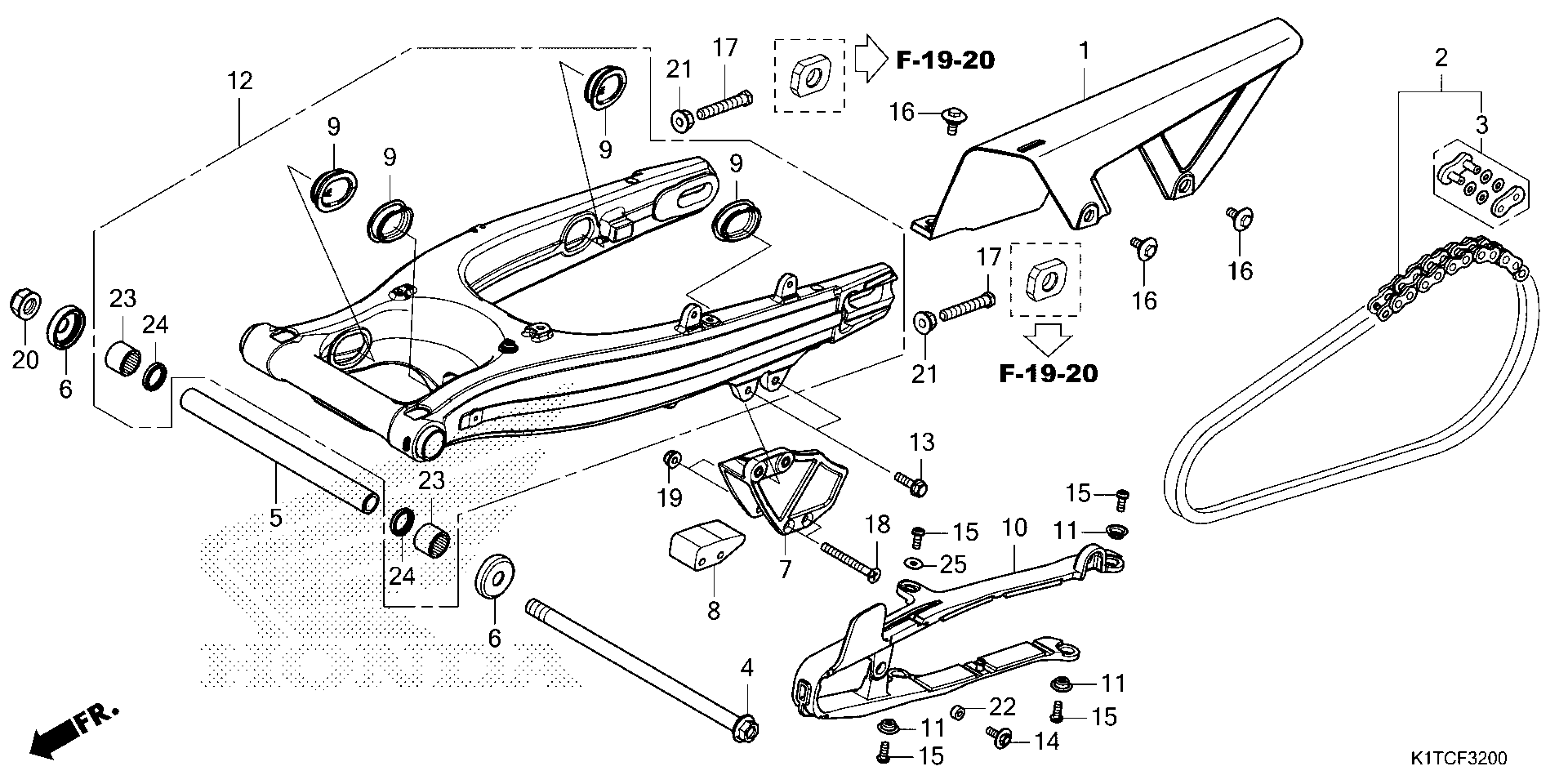

Honda CRF300LAAC (24) MOTORCYCLE, THA, VIN# MLHND165-R5300001 SWINGARM Diagram

#

Description
Price

1

CASE, DRIVE CHAIN

40510-K1T-E10

$17.31

2

CHAIN, DRIVE (DID520VF-120ZB) (DAIDO) (STANDARD LINK 108L)

40540-KYJ-902

$138.46

3

MASTER LINK (DAIDO)

40545-KYJ-902

$14.88

4

BOLT, SWINGARM PIVOT

52101-KZZ-900

$13.97

5

COLLAR, CENTER PIVOT DISTANCE

52141-KZZ-900

$56.57

6

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

7

GUIDE, CHAIN

52146-KV6-010

$33.73

8

SLIDER, CHAIN GUIDE

52147-KV6-010

$20.76

9

CAP, RR. SWINGARM

52161-KZZ-900

$2.74

10

SLIDER, CHAIN

52170-K1T-EB0

$23.36

11

WASHER, CHAIN SLIDER

52171-MAN-620

$3.21

12

SWINGARM SUB-ASSY., RR.

52200-K1T-E10

$616.31

13

BOLT, FLANGE (6X20)

90103-KZZ-900

$1.49

14

BOLT-WASHER (5X16)

90107-K28-910

$2.44

15

SCREW, PAN (5X12)

90107-MJP-G50

$1.89

16

BOLT, FLANGE (6MM)

90111-KZZ-900

$1.49

17

BOLT, HEX. (8X47.5)

90112-KZZ-900

$1.49

18

SCREW, FLAT (6X53)

90115-KZZ-900

$1.49

19

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

20

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$6.05

21

NUT, HEX. (10MM)

90309-357-000

$3.40

22

COLLAR (5.3X12X5.8)

90503-K1T-E10

$2.75

23

BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT

91070-GC4-601

$24.72

24

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

25

WASHER, PLAIN (5MM)

94103-05700

$1.49
