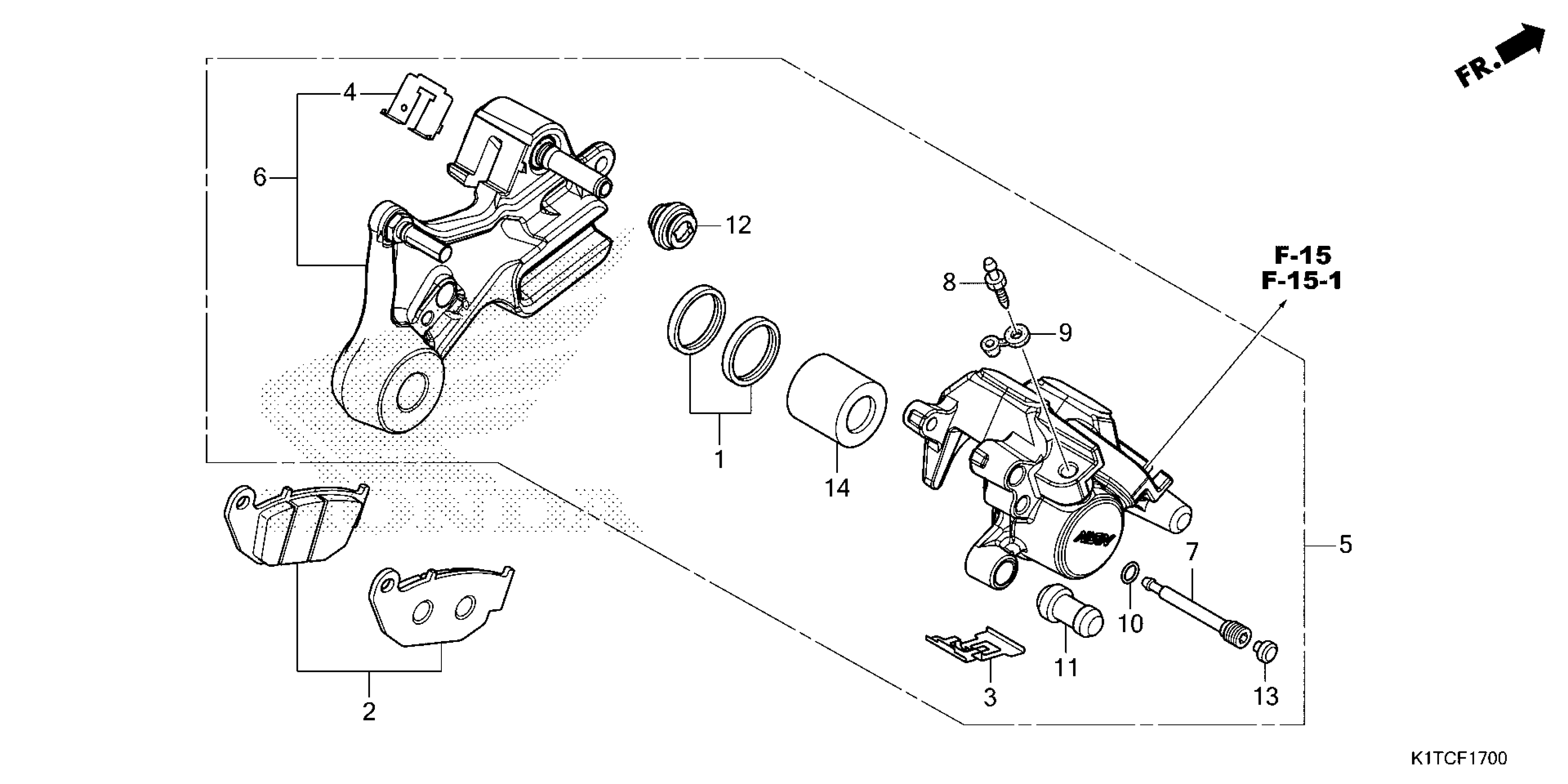

Honda CRF300LAAC (24) MOTORCYCLE, THA, VIN# MLHND165-R5300001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.00

2

PAD SET, RR.

06435-KZZ-902

Unavailable

3

SPRING, PAD (NISSIN)

43108-KSP-B51

$4.34

4

RETAINER

43112-KZZ-901

$6.99

5

CALIPER SUB-ASSY., RR. (NISSIN)

43150-KZZ-J81

$122.03

6

BRACKET SUB-ASSY., RR.

43190-KZZ-J81

$73.13

7

PIN, HANGER

43215-KGH-901

$2.65

8

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

9

CAP, BLEEDER

43353-461-771

Unavailable

10

RING, STOPPER

45111-MAJ-G41

$3.63

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.21

12

BOOT B

45133-MA3-006

$5.21

13

PLUG, PIN

45203-MCC-006

$2.66

14

PISTON B (27X35)

45218-MAJ-G41

$36.21
