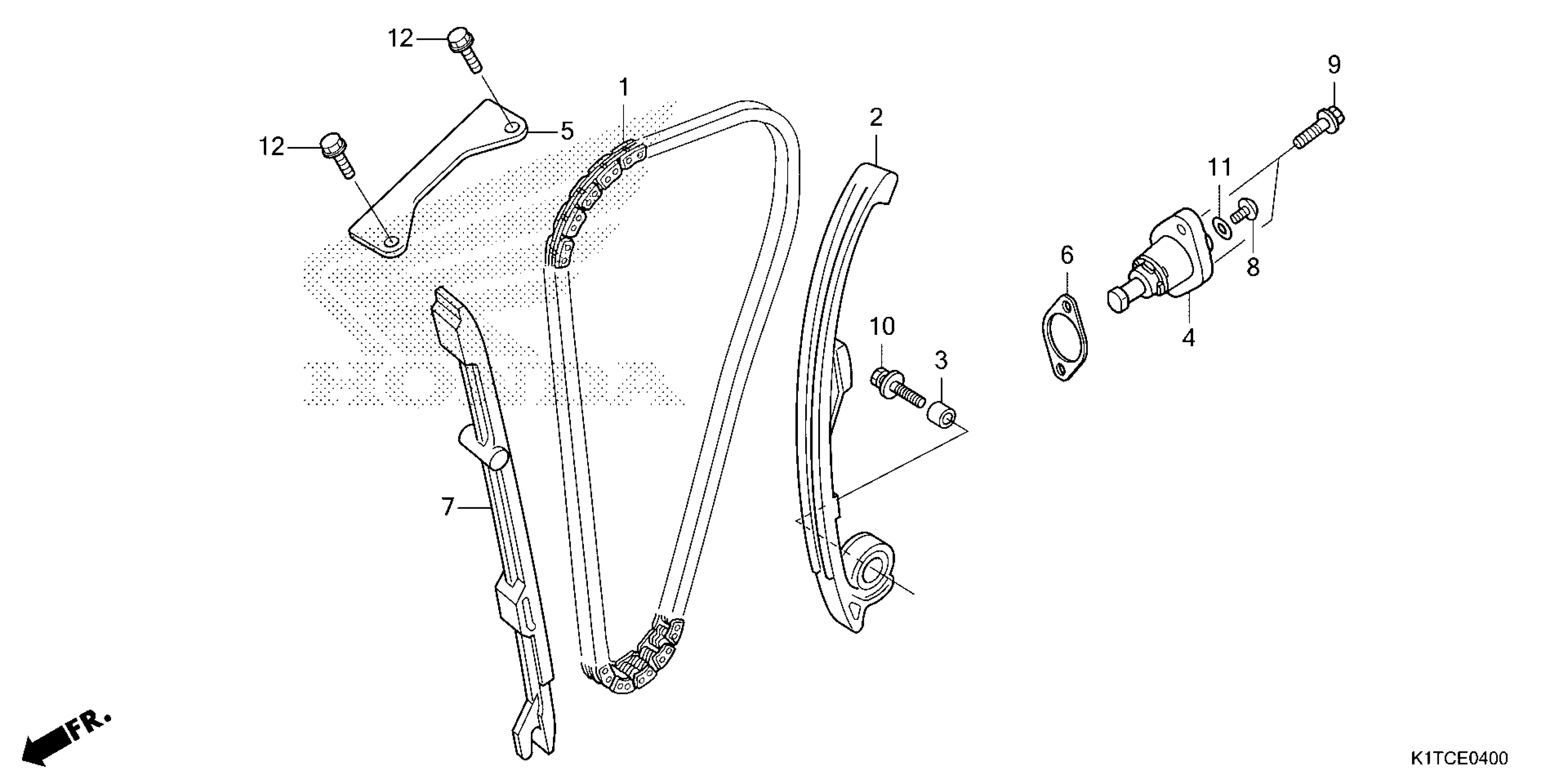

Honda CRF300LAAC (24) MOTORCYCLE, THA, VIN# MLHND165-R5300001 CAM CHAIN@TENSIONER Diagram

CHAIN, CAM (128L) (DAIDO)

14401-K1T-E11

$52.67

TENSIONER, CAM CHAIN

14510-K33-D00

$29.79

COLLAR, TENSIONER

14517-KYJ-900

$1.49

LIFTER, TENSIONER

14520-K0A-DB1

$12.10

LIFTER ASSY., TENSIONER | (Optional).

14520-K33-D01

$82.49

GUIDE B, CAM CHAIN

14546-KYJ-900

$7.70

GASKET, TENSIONER LIFTER

14560-KGH-900

$1.49

GUIDE A, CAM CHAIN

14611-KYJ-900

$6.41

SCREW, PAN (6X6)

90005-KYJ-900

$1.49

BOLT, FLANGE (6X22) (NSHF)

90011-KYJ-900

$1.49

BOLT-WASHER (6X25)

90022-KYJ-900

$1.49

O-RING (1.5X9.5)

91306-MG3-000

$2.33

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
