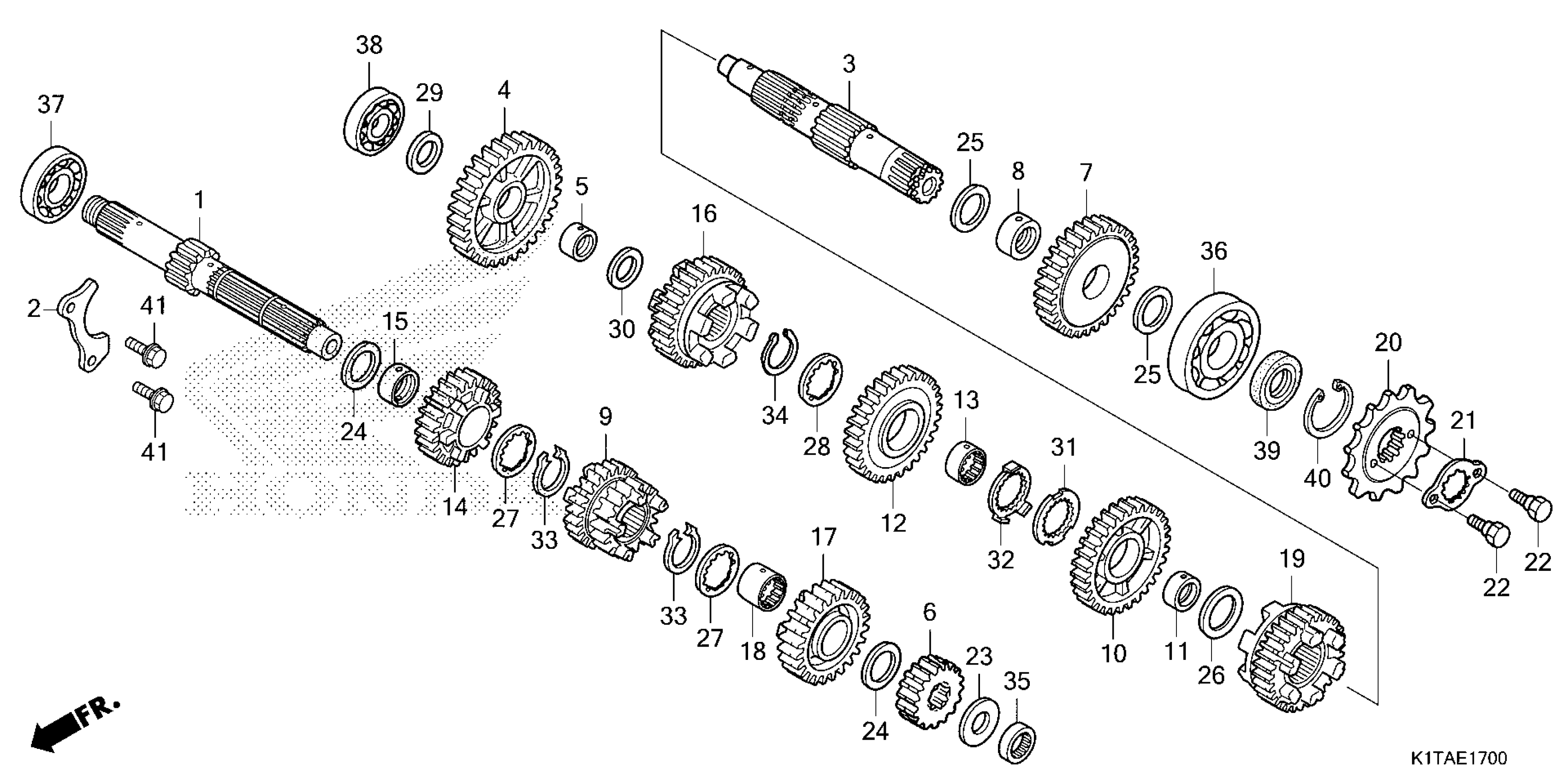

Honda CRF300LAAC (23) MOTORCYCLE, THA, VIN# MLHND165-P5200001 TRANSMISSION Diagram

#

Description
Price

1

SHAFT A, MAIN

23211-K1T-EB0

$28.89

1

SHAFT B, MAIN

23212-K1T-EB0

$28.89

2

PLATE

23213-K0A-DB0

$2.21

3

COUNTERSHAFT

23221-K0A-DB0

$17.67

4

GEAR (C-1)

23411-K1T-EB0

$17.16

5

COLLAR (20X23X10.5)

23412-KYJ-900

$13.56

6

GEAR (16T)

23421-K0A-DB0

$7.93

7

GEAR (36T)

23431-K0A-DB0

$14.85

8

COLLAR (22X25X11)

23432-KYJ-900

$10.25

9

GEAR (M-3/M-4)

23441-K1T-EB0

$26.57

10

GEAR (C-3)

23451-K1T-EB0

$17.03

11

COLLAR (25X28X10)

23452-KYJ-900

$10.89

12

GEAR (C-4)

23471-K1T-EB0

$14.72

13

COLR, SPLINE (25X10)

23472-K0A-DB0

$1.49

14

GEAR (M-5)

23481-K1T-EB0

$13.38

15

BUSH (20X23X17.4)

23482-KYJ-900

$31.15

16

GEAR (C-5)

23491-K1T-EB0

$16.25

17

GEAR (M-6)

23501-K1T-EB0

$14.48

18

COLLAR, SPLINE (23MM)

23502-KYJ-900

$21.59

19

GEAR (C-6)

23511-K1T-EB0

$18.30

20

SPROCKET, DRIVE (14T)

23801-KYJ-901

$12.72

21

PLATE, FIXING

23802-KYJ-900

$2.64

22

BOLT, DRIVE SPROCKET FIXING

90084-041-000

$4.62

23

WASHER (17X26X1.0)

90405-KYJ-900

$1.49

24

WASHER (20X27X1.0)

90406-KYJ-900

$1.49

25

WASHER (22X29X1.0)

90407-KYJ-900

$1.49

26

WASHER (25X32X1.0)

90408-KYJ-900

$1.49

27

WASHER, SPLINE (20X26X1.6)

90451-KYJ-900

$1.49

28

WASHER, SPLINE (25X31X1.0)

90452-KYJ-900

$1.49

29

WASHER (17X28X1.0)

90453-KYJ-900

$1.49

30

WASHER B, THRUST (20MM)

90454-KPS-900

$1.49

31

WASHER, SPLINE (25X42X1.6)

90454-KYJ-900

$1.52

32

WASHER, LOCK (25MM)

90455-KYJ-900

$32.30

33

CIRCLIP (OUTER) (20MM)

90601-KYJ-900

$8.43

34

CIRCLIP (OUTER) (25MM)

90602-KYJ-900

$7.08

35

BEARING (17X27X13)

91003-KYJ-711

$4.49

35

BEARING, NEEDLE (17X27X13) | (Optional).

91003-KYJ-901

$21.45

36

BEARING (63/22)

91005-KYJ-711

$7.62

36

BEARING, RADIAL BALL (63/22) | (Optional).

91005-KYJ-901

$21.72

37

BEARING (6304)

91013-KYJ-711

$5.51

37

BEARING, RADIAL BALL (6304) | (Optional).

96100-63040-00

$14.40

38

BEARING (6203U)

91014-KYJ-711

$3.66

38

BEARING, RADIAL BALL (6203U) | (Optional).

96140-62030-00

$18.59

39

OIL SEAL (22X36X5)

91207-KYJ-711

$5.41

40

CIRCLIP (INNER) (37MM)

94520-37000

$2.18

41

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
