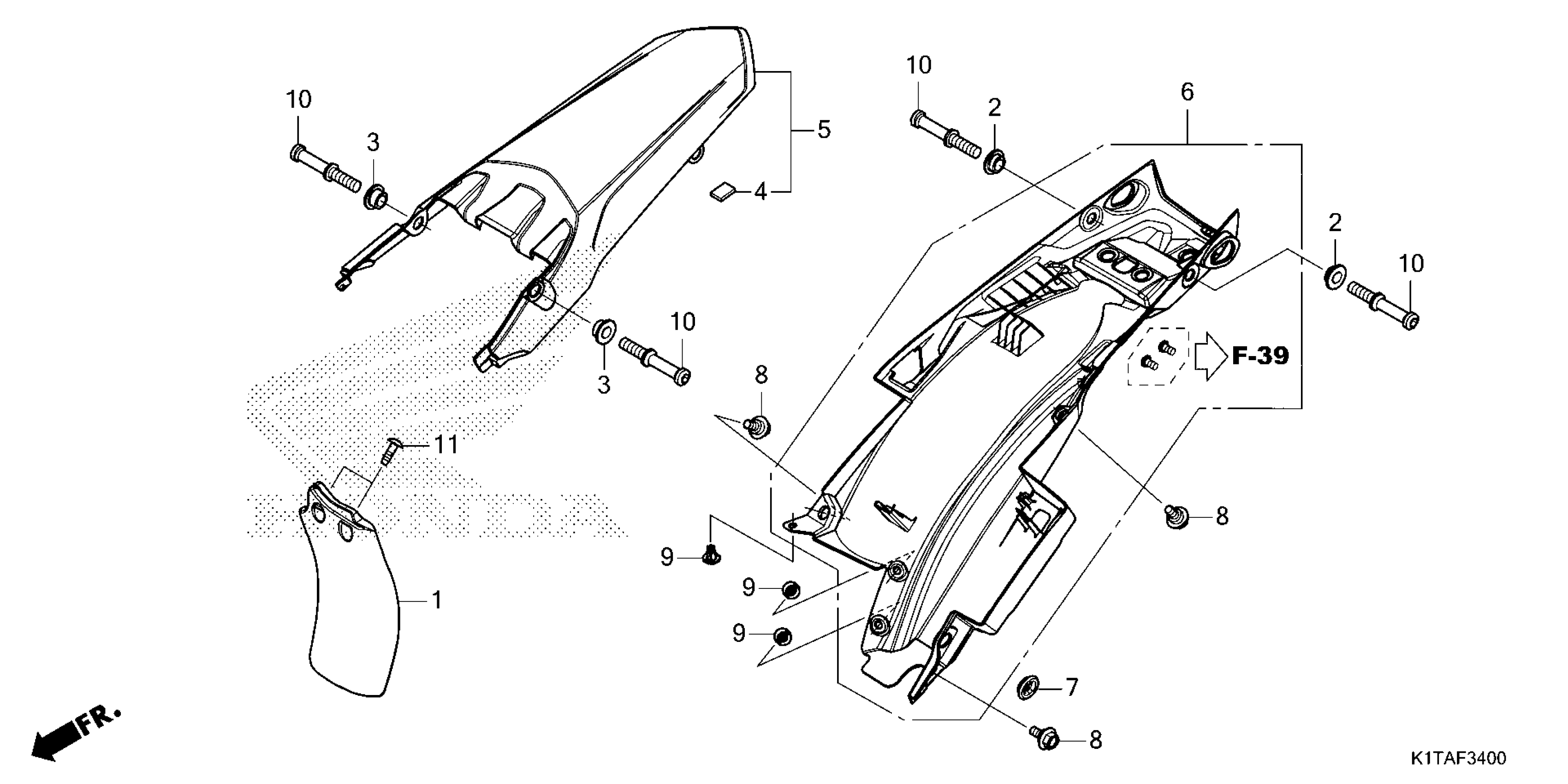

Honda CRF300LAAC (23) MOTORCYCLE, THA, VIN# MLHND165-P5200001 REAR FENDER Diagram

SPLASH GUARD

17218-K1T-E10

$5.85

COLLAR A, FENDER SETTING

77223-K1T-E10

$1.62

COLLAR B, FENDER SETTING

77224-KZZ-900

$1.49

RUBBER, COVER (LOWER)

80109-MGZ-J80

$3.21

COWL ASSY., RR. (TYPE1) (WL)

80130-K1T-E50ZA

$52.23

FENDER SET B, RR.

80150-K1T-305

$12.22

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.80

BOLT, FLANGE (6MM)

90110-K1T-E10

$1.49

RIVET, PUSH (6MM)

90116-K0A-E11

$1.49

BOLT, HOOK (8MM)

90116-KZZ-900

$2.48

SCREW, TAPPING (5X16)

93903-25380

$1.49
