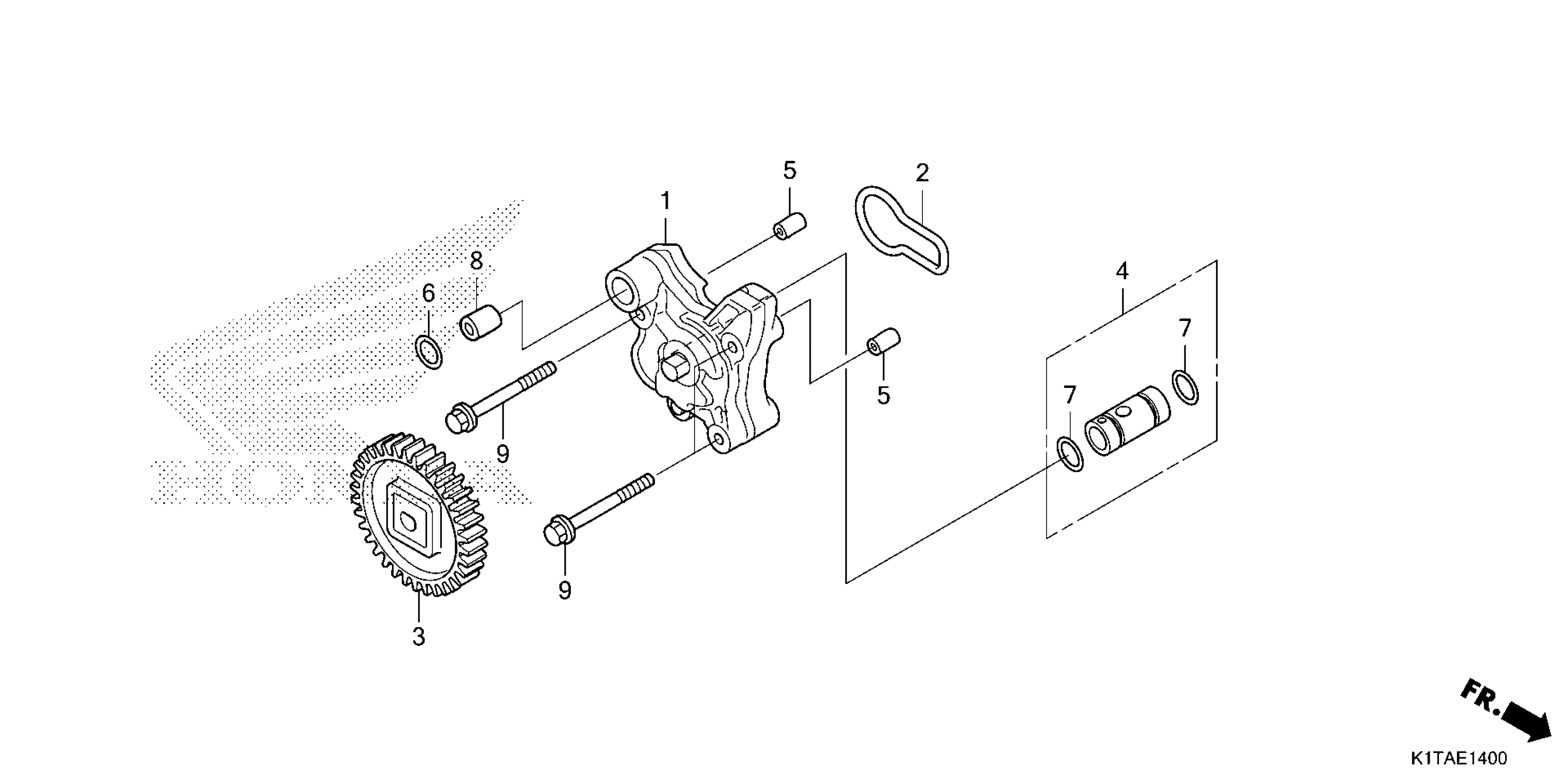

Honda CRF300LAAC (23) MOTORCYCLE, THA, VIN# MLHND165-P5200001 OIL PUMP Diagram

#

Description
Price

1

PUMP ASSY., OIL

15100-KYJ-900

$73.14

2

GASKET, OIL PUMP

15119-KYJ-710

$0.26

3

GEAR, OIL PUMP (32T)

15130-K0A-DB0

$5.55

4

VALVE ASSY., RELIEF

15220-KYJ-900

$27.97

5

PIN, DOWEL (8X12)

90702-KFM-900

Unavailable

6

O-RING (11.8X1.9)

91301-KYJ-710

$0.12

6

O-RING (11.8X1.9)

91301-KYJ-901

$0.41

7

O-RING (11.8X1.9)

91301-KYJ-901

$0.41

8

PIN A, DOWEL (12X16)

94301-12160

Unavailable

9

BOLT, FLANGE (6X45) This part replaces 95701-06045-00.

95701-06045-07

$1.97

9

BOLT, FLANGE (6X45) BOLT, FLANGE (6X60)

95701-06045-07

$1.97
