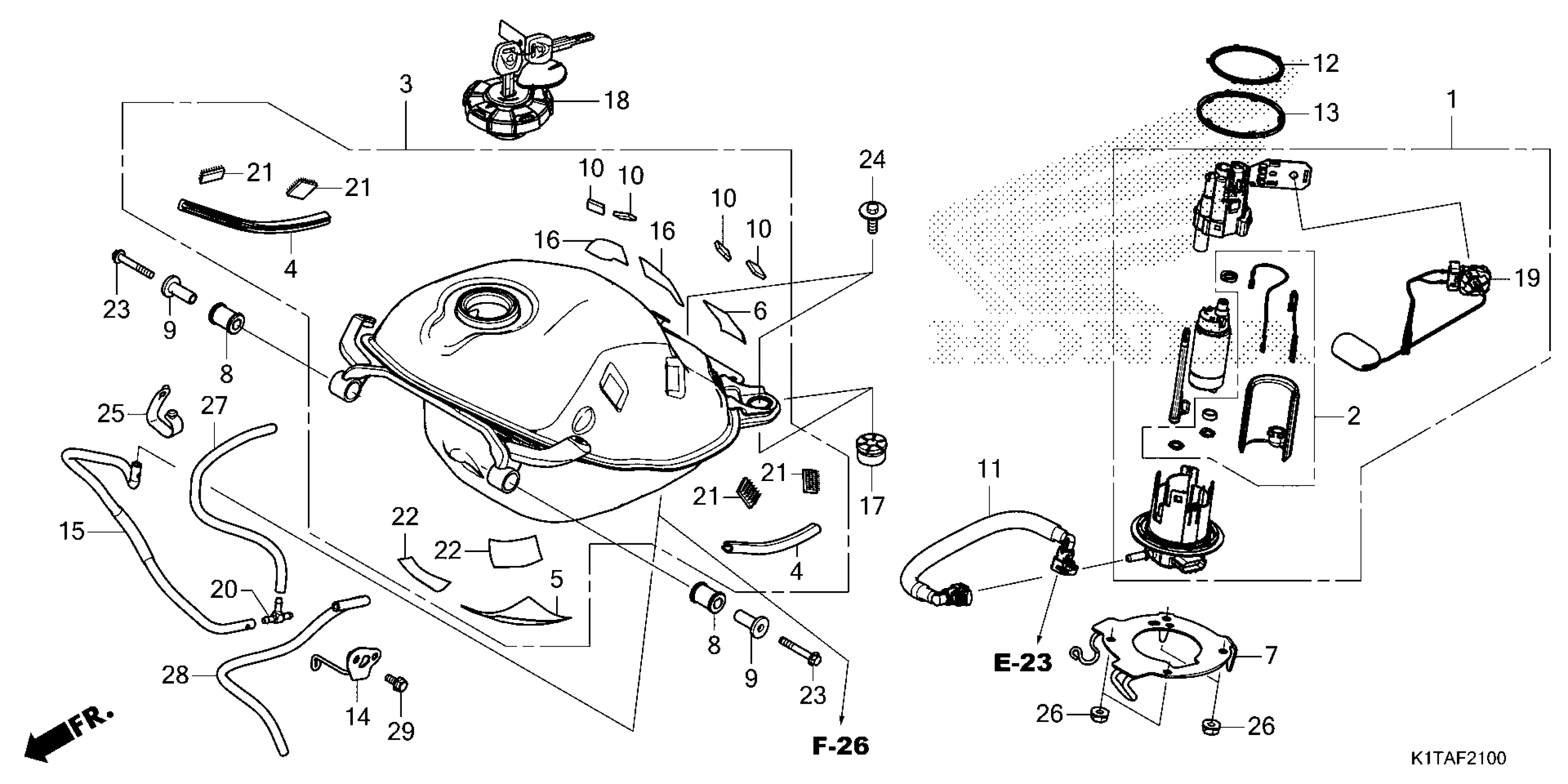

Honda CRF300LAAC (23) MOTORCYCLE, THA, VIN# MLHND165-P5200001 FUEL TANK (1) Diagram

PUMP ASSY., FUEL (MSDS)

16700-K1T-E51

$123.90

FILTER SET

16707-K45-N01

$24.22

TANK ASSY., FUEL *NH105* (MAT BLACK)

17500-K1T-E50ZA

$344.77

TRIM A, FUEL TANK

17516-KZZ-900

$6.31

FILM, TANK PROTECTOR

17519-K1B-T00

$8.02

FILM, TANK PROTECTOR

17519-K35-V00

$23.33

PLATE, SETTING

17527-K1T-E10

$9.61

RUBBER, RR. TANK MOUNTING (FRONT SIDE)

17534-MFJ-D00

$4.75

COLLAR

17538-KZZ-900

$2.41

RUBBER, TANK

17546-K1T-E50

$2.13

HOSE, FUEL FEED

17570-K1T-E11

$36.86

GASKET, FUEL PUMP

17572-GHB-613

$17.55

DUST SEAL

17573-KPN-A71

$12.89

FILM, TANK PROTECTOR

17583-K1T-E10

$2.74

CUSHION, FUEL TANK

17613-K1T-E10

$2.49

CAP COMP

17620-K1T-E52

$91.13

FUEL UNIT

37800-K1T-E51

$36.79

FASTENER B, DUAL LOCK (20X20)

64243-MEW-920

$2.97

FILM, PROTECTOR

84114-MFP-C80

$4.72

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

BOLT-WASHER (6X14)

90107-K1T-EB0

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49
