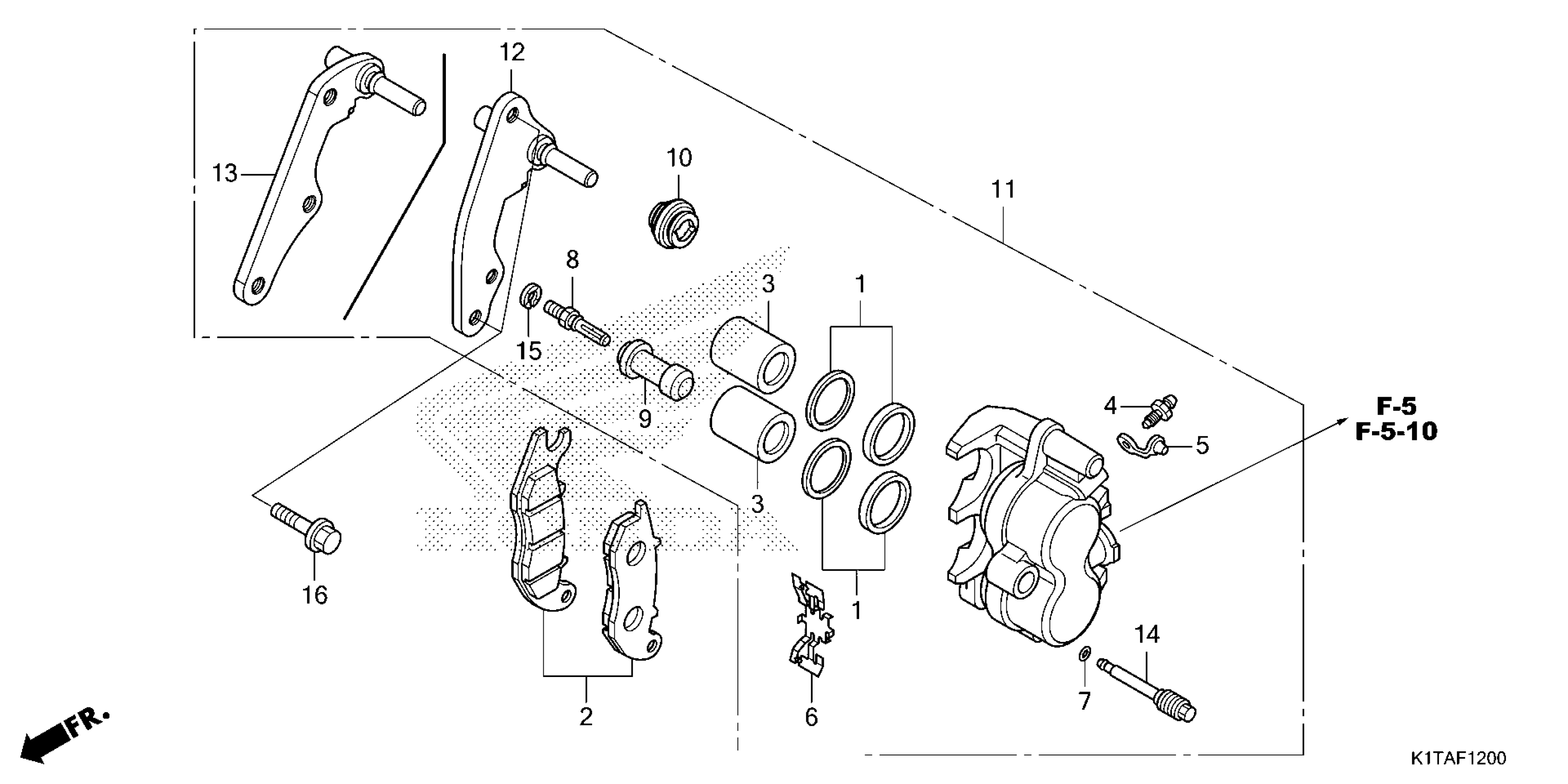

Honda CRF300LAAC (23) MOTORCYCLE, THA, VIN# MLHND165-P5200001 FRONT BRAKE CALIPER Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PAD SET, FR.

06451-KZZ-902

$21.60

PISTON (27X27)

43107-MBG-006

$33.79

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

SPRING, PAD

45108-KPH-951

$1.97

RING, STOPPER

45111-MAJ-G41

$3.80

BOLT, PIN

45131-GZ0-006

$8.08

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CALIPER SUB-ASSY., L. FR. (NISSIN) (MSDS)

45150-KZZ-902

$107.49

BRACKET SUB-ASSY., FR. CALIPER

45190-KZZ-901

$46.30

PIN, HANGER

45215-KPH-951

$2.92

WASHER, WAVE (NISSIN)

45216-166-006

$2.34

BOLT, FLANGE (8X32)

90131-KZZ-900

$1.49
