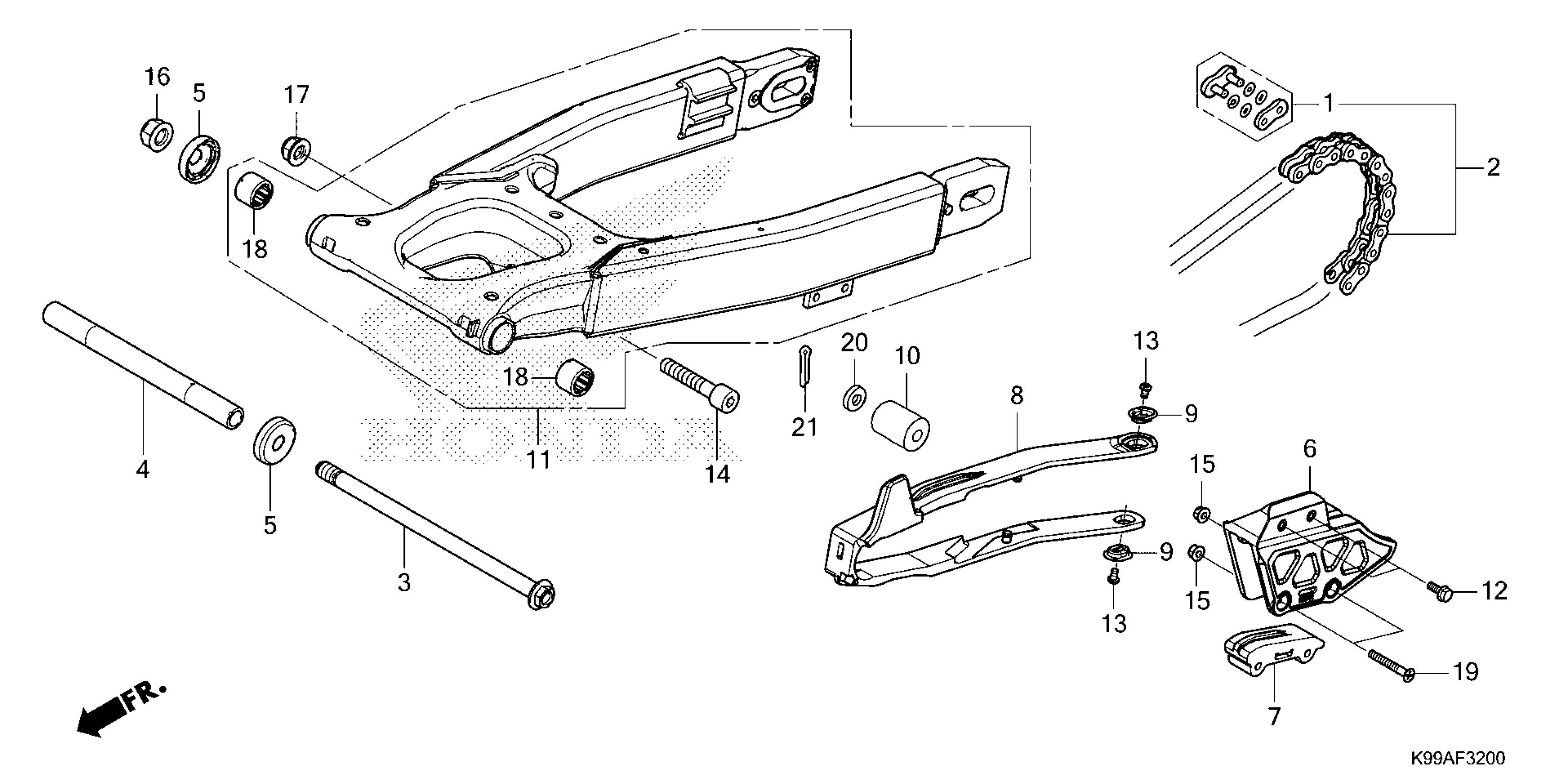

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 SWINGARM Diagram

MASTER LINK SET (SEAL TYPE) (DAIDO)

40535-KCR-305

$7.16

MASTER LINK SET (SEAL TYPE) (RK EXCEL)

40535-KCR-306

$8.16

CHAIN, DRIVE (DID520V6-120ZB) (DAIDO) (STANDARD LINK 110L)

40540-KCR-305

$208.41

CHAIN, DRIVE (RK EXCEL) (RK520SMOZ2-120LJ-FZ) (STANDARD LINK 110L)

40540-KCR-306

$208.41

BOLT, SWINGARM PIVOT

52101-K99-A00

$13.48

COLLAR, PIVOT DISTANCE CENTER

52141-K99-A00

$38.97

CAP, SWINGARM DUST SEAL (NOK)

52144-356-005

$17.31

GUIDE, CHAIN

52146-K99-A70

Unavailable

SLIDER, CHAIN GUIDE

52147-K99-A70

$26.65

SLIDER, CHAIN

52170-K99-A70

$179.24

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

ROLLER, CHAIN (UPPER)

52175-KPS-900

$8.89

SWINGARM SUB-ASSY., RR.

52200-K99-A00

$435.77

BOLT, FLANGE (6X16)

90103-MY6-670

$3.72

SCREW, PAN (5X8)

90115-KPS-900

$1.49

BOLT, SOCKET (12X64)

90128-KPE-900

$14.77

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.49

NUT, U (14MM) (FUJI SEIMITSU)

90305-KCJ-951

$6.05

NUT, U (12MM) (FUJI SEIMITSU)

90306-KGH-901

$2.64

BEARING, NEEDLE (20X26X20)

91070-KPE-901

$9.94

SCREW, FLAT (6X45)

93600-06045-0A

$1.49

WASHER, PLAIN (8MM)

94102-08000

$1.49

PIN, COTTER (2.0X15)

94201-20150

$1.49
