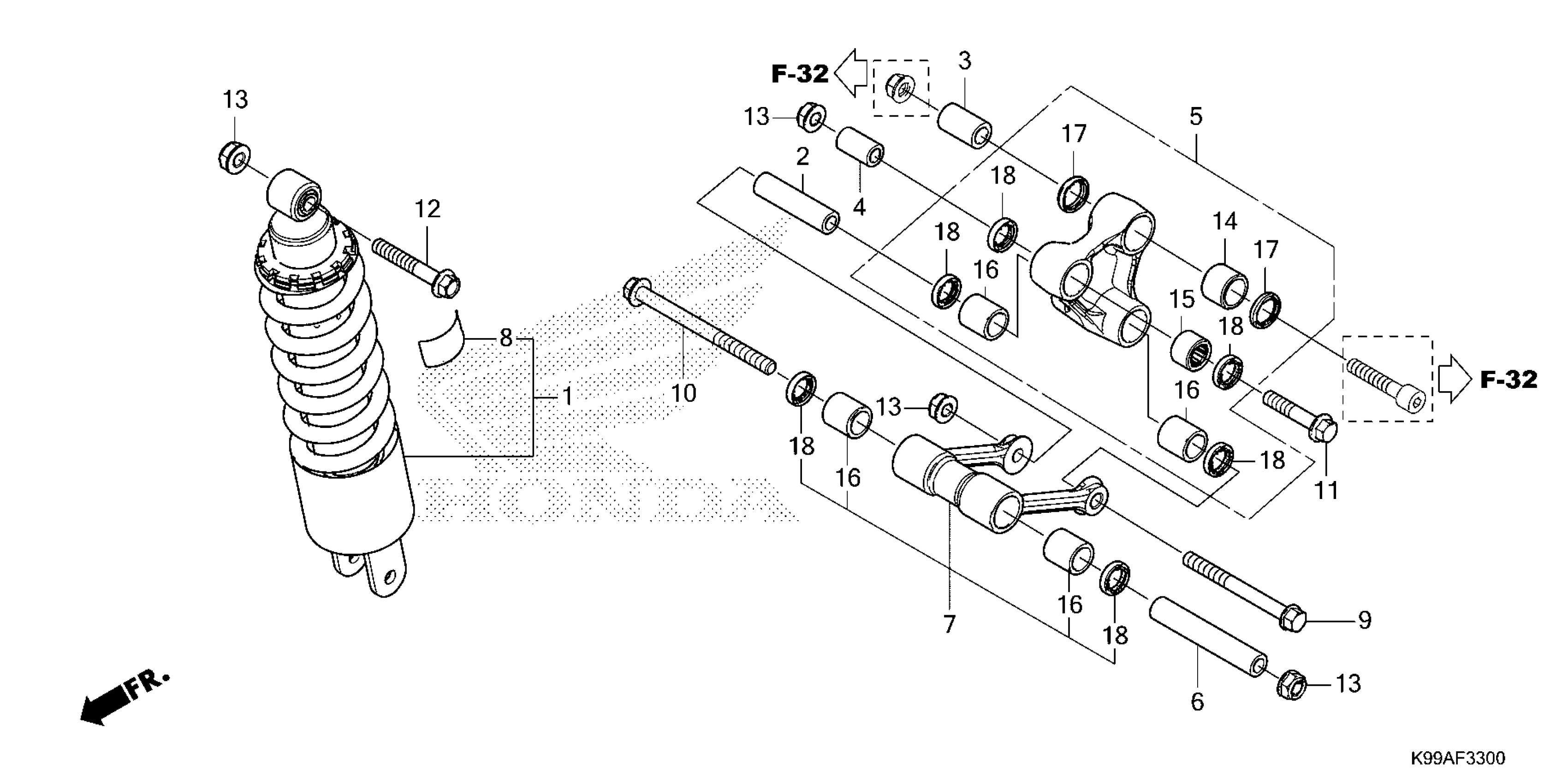

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 REAR SHOCK ABSORBER Diagram

CUSHION ASSY., RR.

52400-K99-A71

$433.24

COLLAR B, CUSHION ARM (NOT AVAILABLE)

52462-K99-A70

Unavailable

COLLAR B, CUSHION ARM

52463-KPE-900

$7.43

COLLAR C, CUSHION ARM

52464-KPE-900

$5.51

ARM SUB-ASSY.

52465-K99-A70

$183.94

COLLAR, CONNECTING ROD

52472-K99-A00

$12.28

CONN ROD SUB-ASSY.

52475-K99-A70

$121.72

LABEL, RR. DAMPER

87516-MBL-610

$4.31

BOLT, FLANGE (10X100)

90101-KPS-900

$5.75

BOLT, FLANGE (10X128)

90102-K99-A00

$4.62

BOLT, FLANGE (10X52)

90107-K99-A00

$3.77

BOLT, FLANGE (10X65)

90157-KB7-940

$5.23

NUT, U (10MM)

90304-KGH-901

$3.25

BEARING (20X26X20)

91071-KPE-901

$6.20

BEARING (17X24X17)

91072-KPE-901

$10.70

BEARING (17X24X25)

91073-KPE-901

$4.93

DUST SEAL (20X26X4.5) (ARAI)

91254-KS6-003

$9.19

DUST SEAL (17X24X5) (ARAI)

91262-KV3-831

$6.21
