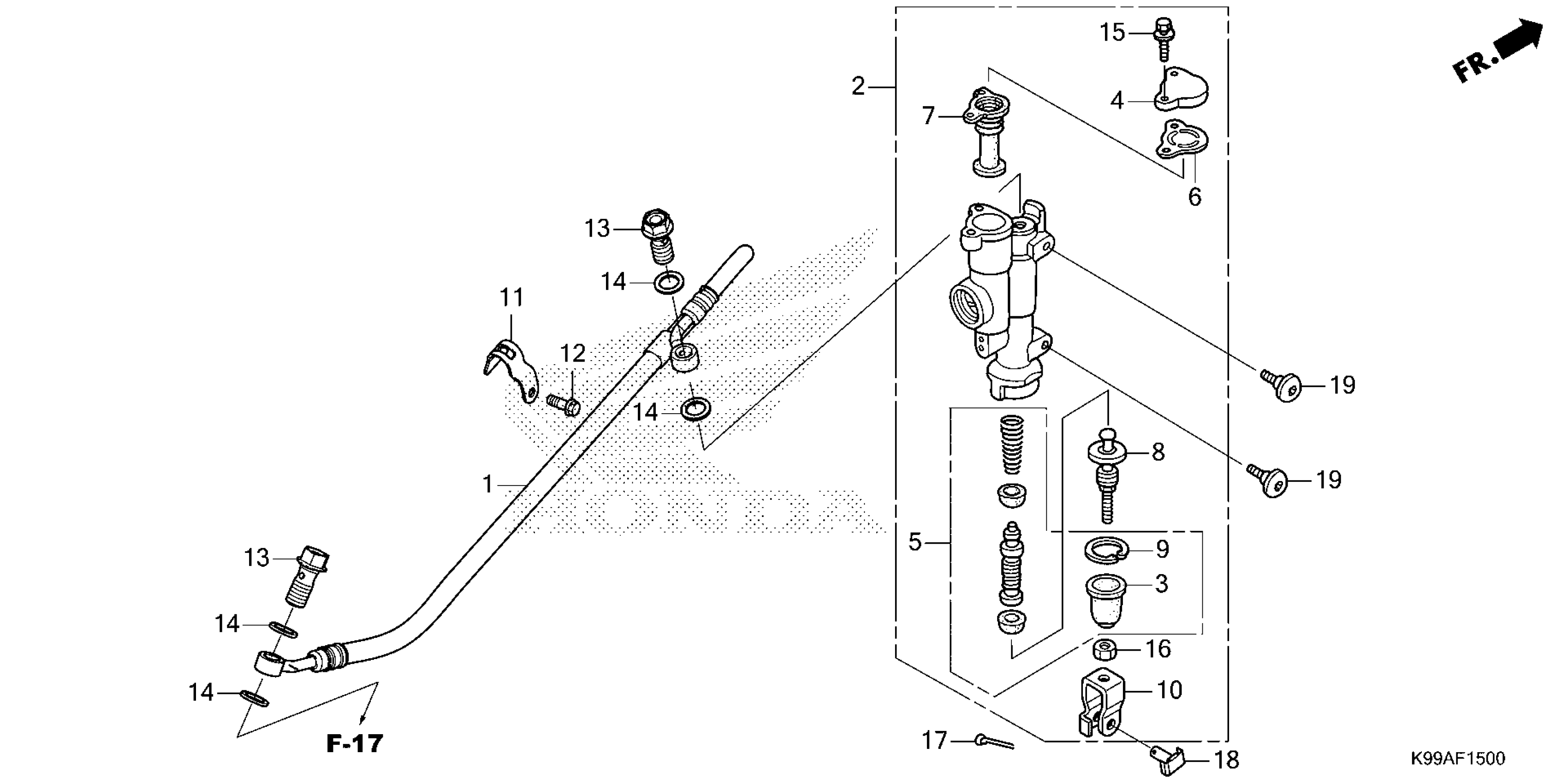

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, RR. BRAKE

43310-K99-A71

$36.24

2

MASTER CYLINDER ASSY., RR. BRAKE (NISSIN)

43500-KZ4-J43

$297.75

3

BOOT

43504-MB2-006

$10.04

4

CAP, MASTER CYLINDER

43513-KZ4-J41

$4.74

5

PISTON SET, MASTER CYLINDER

43520-KZ4-J43

$47.35

6

PLATE, DIAPHRAGM

43521-KZ4-J41

$4.17

7

DIAPHRAGM

43522-KZ4-J41

$18.37

8

ROD, PUSH

43530-KZ4-J41

$22.98

9

CIRCLIP

46182-MEL-D21

$1.93

10

JOINT, BRAKE ROD

46504-KZ4-J41

$5.57

11

GUIDE A, RR. BRK HSE

52114-K99-A70

$6.03

12

BOLT, FLANGE (6X16) (SH)

90111-K99-A00

$2.15

13

BOLT, OIL (10X22)

90145-GAZ-981

Unavailable

13

BOLT, OIL (10X22)

90145-KVS-M30

$14.57

13

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

14

WASHER, OIL BOLT

90545-300-000

$3.99

15

BOLT-WASHER (4X16)

93401-04016-00

$1.49

16

NUT, HEX. (6MM)

94002-06000-0S

$1.49

17

PIN, COTTER (2.0X15)

94201-20150

$1.49

18

PIN D, JOINT

95015-54000

$4.24

19

BOLT, FLANGE (6X12)

96001-06012-00

$1.80
