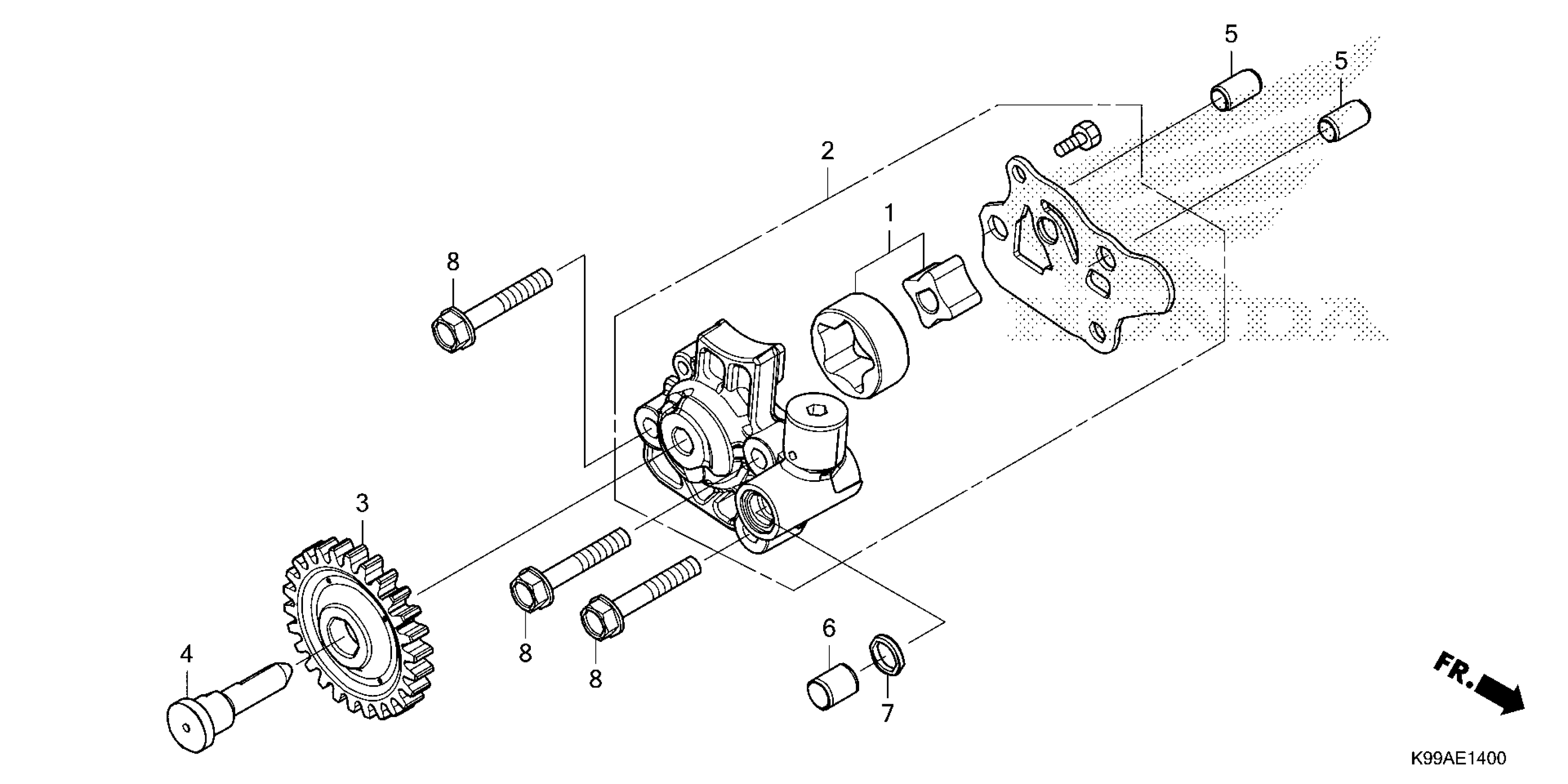

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 OIL PUMP Diagram

#

Description

Price

1

ROTOR SET, OIL PUMP (NOT AVAILABLE)

15021-KWT-D20

Unavailable

2

PUMP ASSY., OIL (NOT AVAILABLE)

15100-K2K-B00

Unavailable

3

GEAR, OIL PUMP DRIVEN (26T) (NOT AVAILABLE)

15130-K2K-D00

Unavailable

4

SHAFT, OIL PUMP (NOT AVAILABLE)

15141-K2K-D00

Unavailable

5

PIN, DOWEL (8X14)

90702-KRM-840

$0.61

6

PIN, DOWEL (10X12) This part replaces 90703-KRM-840.

94301-10120

$2.25

6

PIN, DOWEL (10X12)

94301-10120

$2.25

7

GASKET, RUBBER (NA USE ALT:91303-KK0-003)

91303-KPF-960

Unavailable

8

BOLT, FLANGE (6X35)

95701-06035-00

$1.71
