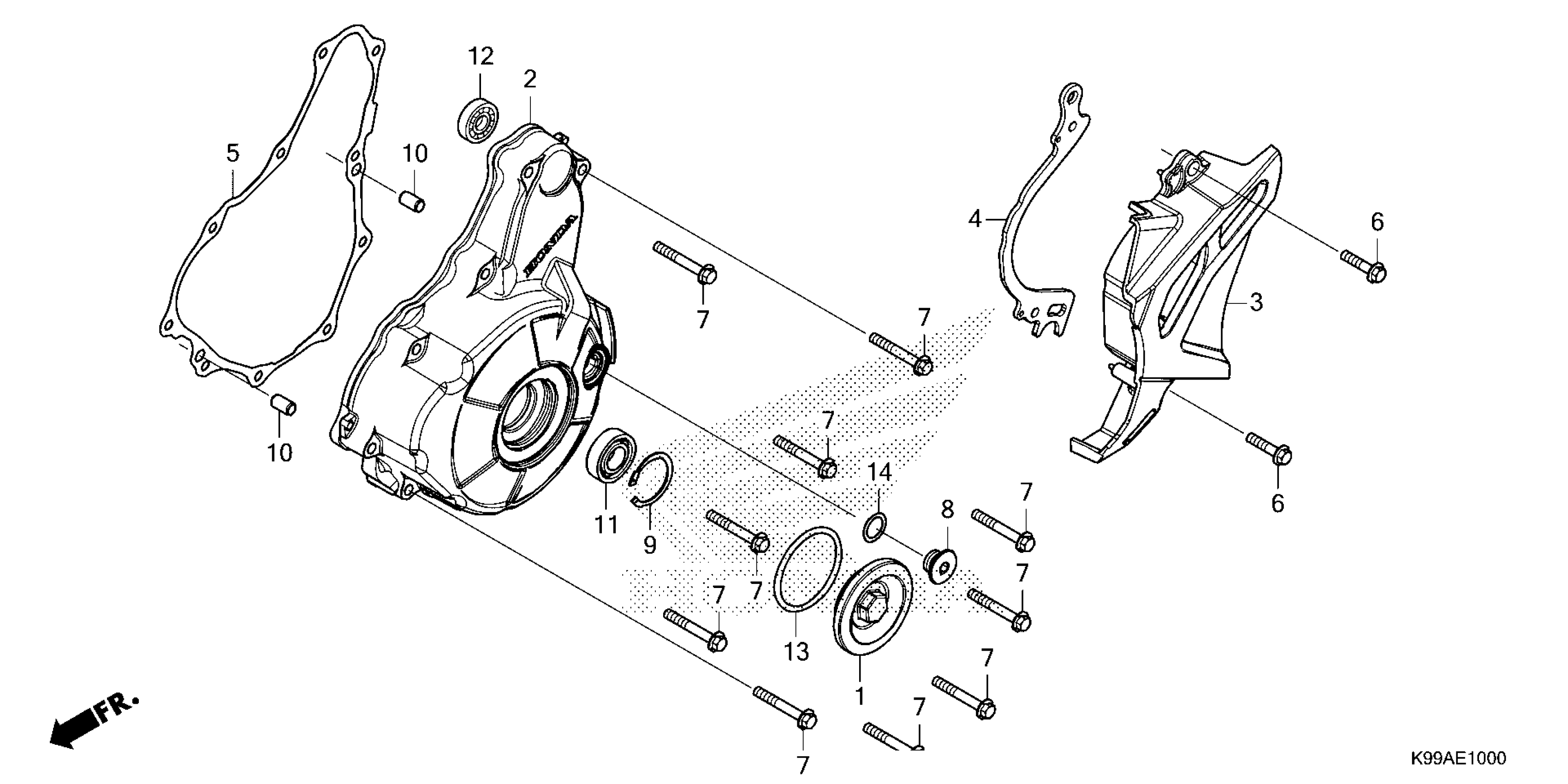

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 LEFT CRANKCASE COVER Diagram

CAP (45MM)

11332-K99-A70

$11.22

COVER, L. CRANKCASE

11341-K99-A70

$89.10

COVER, L. RR.

11361-K99-A70

$48.96

GUIDE, DRIVE CHAIN

11363-K99-A70

$6.16

GASKET, L. CRANKCASE COVER (NOT AVAILABLE)

11395-K2K-D01

Unavailable

BOLT, FLANGE (6X25) (NSHF)

90004-GHB-670

$2.89

BOLT, FLANGE (6X40) (NSHF)

90004-GHB-710

$4.07

CAP (14MM)

90084-KPS-900

$1.77

CIRCLIP (INNER) (32MM) (NOT AVAILABLE)

90601-K0L-D00

Unavailable

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

BEARING, SPECIAL RADIAL BALL (6002)

91005-KSE-671

$11.75

BEARING, RADIAL BALL (6000) (NOT AVAILABLE)

91011-GCE-D62

Unavailable

O-RING (48.1X3.6) (ARAI)

91301-ML7-003

$3.92

O-RING (13.8X2.5)

91303-KRM-840

$1.49
