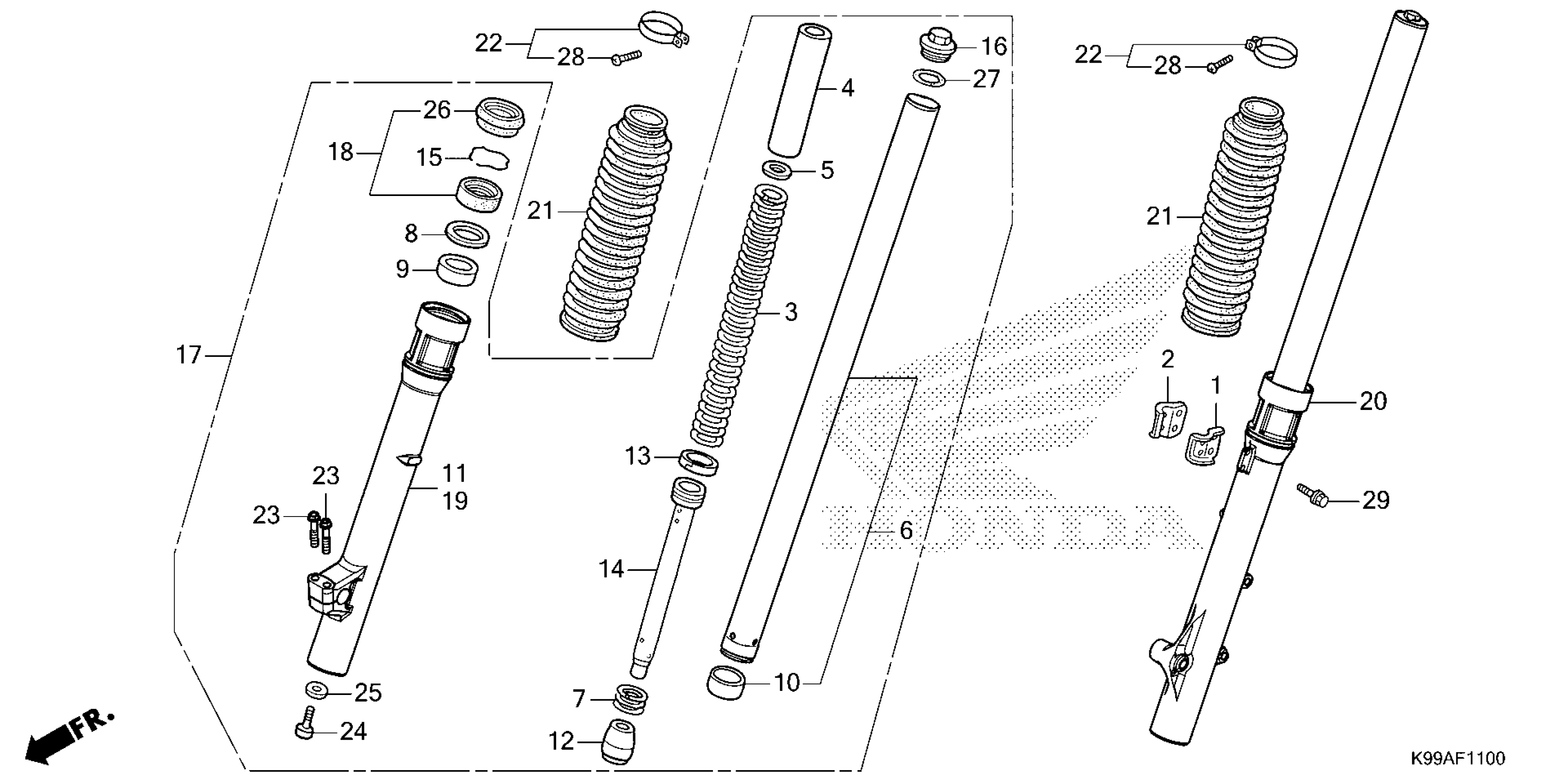

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 FRONT FORK Diagram

#

Description
Price

1

CLAMP A, BRAKE HOSE

45461-K99-A70

$5.40

2

CLAMP B, BRAKE HOSE

45462-K99-A70

$2.19

3

SPRING, FR. FORK

51401-K99-A71

$25.47

4

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$24.00

5

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

6

PIPE, FR. FORK

51410-K99-A01

$84.79

7

SPRING, REBOUND

51411-K99-A01

$2.07

8

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

9

BUSH, GUIDE

51414-MFJ-A51

$7.25

10

BUSH, SLIDER

51415-K99-A01

$3.51

11

CASE, R. FR. (LOWER)

51420-K99-A71

$845.05

12

PIECE, OIL LOCK

51432-MV4-003

$14.02

13

RING, PISTON

51437-KV3-701

$7.19

14

PIPE, SEAT

51440-K99-A71

$15.27

15

RING, OIL SEAL STOP

51447-MCG-003

$1.49

16

BOLT, FR. FORK

51454-MM9-671

$38.35

17

FORK SUB, R. FR.

51480-K99-A71

$294.06

18

SEAL SET, FR. FORK

51490-K99-A01

$11.16

19

CASE, L. FR. (LOWER)

51520-K99-A71

$845.05

20

FORK SUB, L. FR.

51580-K99-A71

$294.06

21

BOOT, FR. FORK (NOT AVAILABLE)

51611-KF0-003

$59.75

22

BAND, FR. FORK BOOT (NOT AVAILABLE)

51612-KF0-003

$10.91

23

BOLT, FLANGE (8X40)

90108-KZ4-J40

$2.13

24

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

25

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

26

DUST SEAL, FR. FORK

91254-KF0-003

$21.03

27

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.76

28

SCREW, PAN (3X20)

93500-03020-0A

$1.49

29

BOLT, FLANGE (6X16)

96001-06016-00

$1.49
