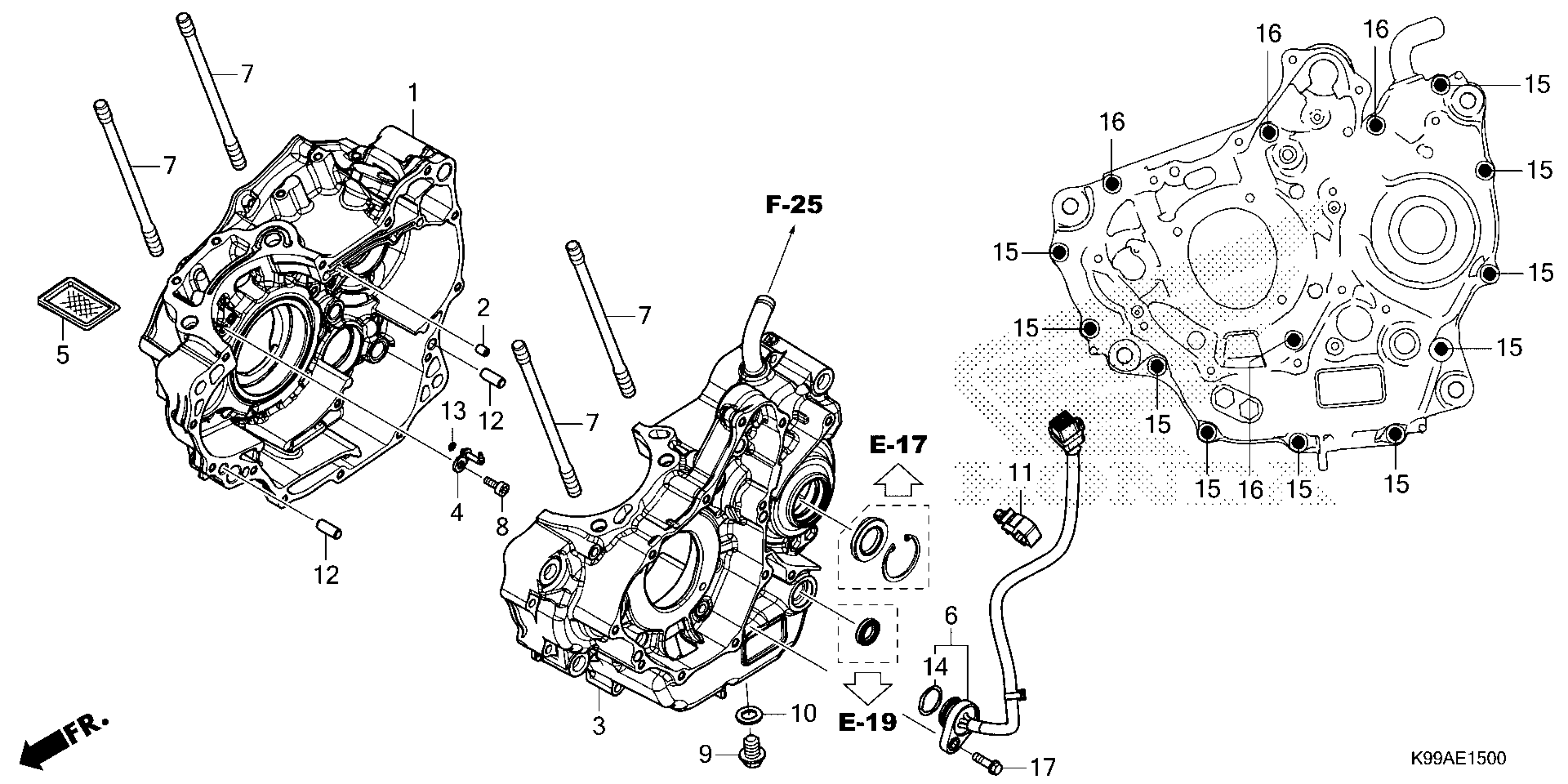

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 CRANKCASE Diagram

CRANKCASE, R.

11100-K2K-B11

Unavailable

ORIFICE (1.5MM) (NOT AVAILABLE)

11133-K2K-D00

Unavailable

CRANKCASE, L.

11200-K3H-B01

Unavailable

JET, PISTON (NOT AVAILABLE)

15201-K2K-D01

Unavailable

SCREEN, OIL FILTER

15421-K31-900

$19.23

CONTACT ASSY.

35759-K2Y-A01

$14.13

BOLT, STUD (10X182)

90032-K31-900

$7.56

BOLT, SOCKET (6MM)

90085-KSP-901

$1.49

BOLT, DRAIN PLUG (12MM)

90131-KRM-840

$1.75

GASKET, DRAIN PETCOCK (12.5X20)

90407-259-000

$2.92

CLIP

90652-MGS-D31

$3.20

PIN, DOWEL (8X20)

90704-K0L-D00

$1.49

O-RING (3.8X1.4)

91305-K0J-N00

$1.49

O-RING (19.4X2.3)

91305-K0N-D00

$1.49

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.80

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

BOLT, FLANGE (6X20)

96001-06020-00

$1.49
