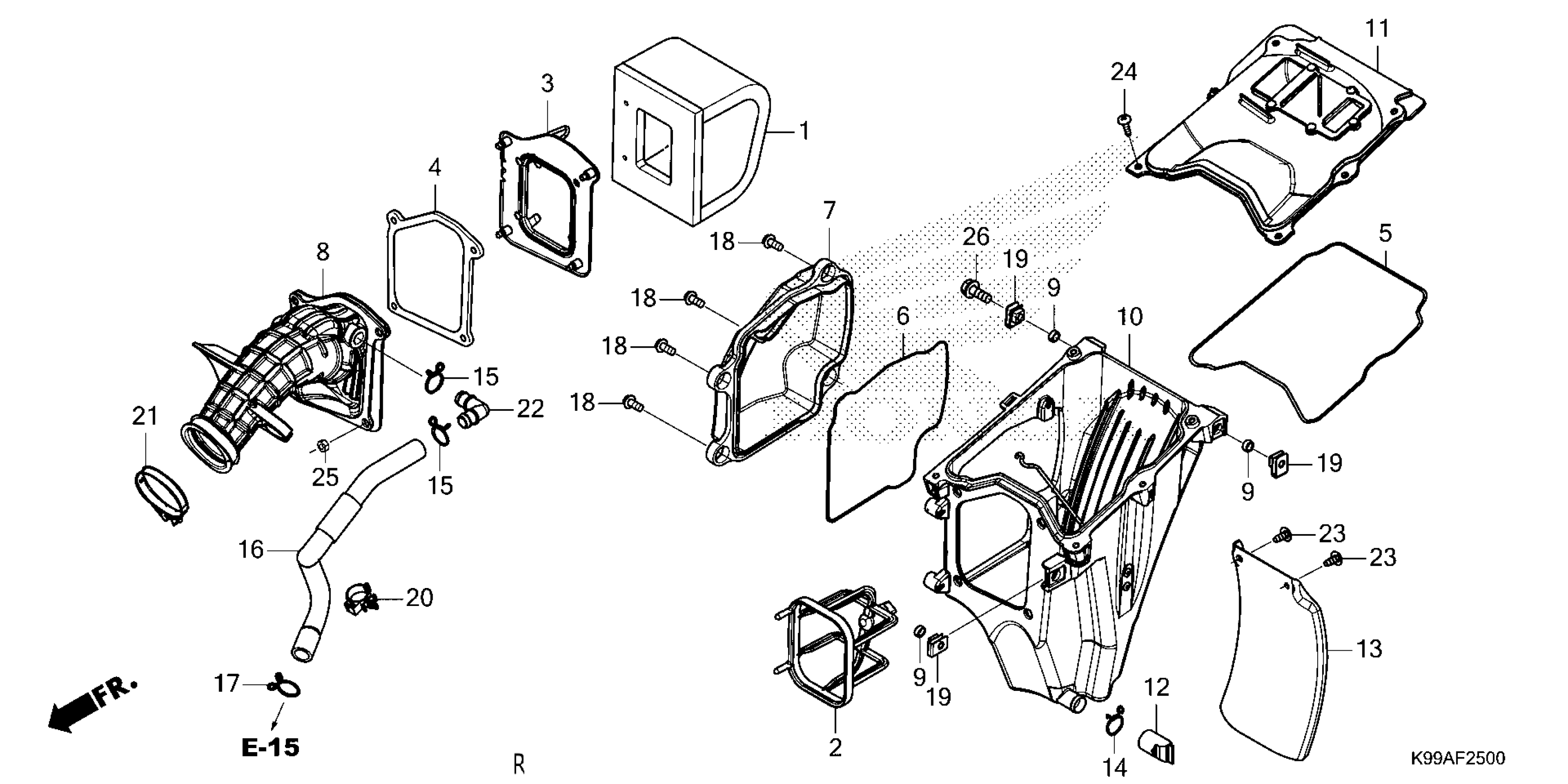

Honda CRF300FAC (26) MOTORCYCLE, BRA, VIN# 9C2NE071-TR100001 TO 9C2NE071-TR199999 AIR CLEANER Diagram

ELEMENT, AIR CLEANER

17213-K99-A00

$52.59

HOLDER, ELEMENT

17214-K99-A00

$11.78

PLATE

17216-K99-A70

$103.57

PLATE, FR. HOLDER

17217-K99-A00

$4.90

SEAL, AIR CLEANER

17218-K99-A70

$1.84

SEAL

17219-K99-A70

$1.87

LID

17220-K99-A70

$8.35

TUBE, AIR CLEANER CONNECTING

17222-K99-A00

$44.55

COLLAR, AIR CLEANER

17223-KVS-F30

$2.65

HOUSING, AIR CLEANER

17230-K99-A70

$169.67

HOUSING, AIR CLEANER

17233-K99-A70

$3.88

PLUG, AIR CLEANER DRAIN

17236-K99-A00

$5.38

SPLASH GUARD

17245-K99-A00

$4.49

CLIP, BREATHER TUBE

17316-KRH-D20

$1.12

CLIP, BREATHER TUBE

17369-KB4-670

$5.16

TUBE, BREATHER

17371-K99-A70

$13.36

CLIP, SUB-TANK HOSE

17724-102-700

Unavailable

SCREW, SPL (5X12)

90102-HL4-AK0

$4.35

NUT, CLIP (6MM)

90311-KVS-F30

$2.20

CLAMP, TUBE (D18)

90651-HL3-G01

$2.26

BAND, AIR CLEANER CONNECTING TUBE (52)

90652-K31-900

$8.48

JOINT, TUBE

91463-K99-A00

$1.30

SCREW, TAPPING (5X12)

93903-25210

$0.75

SCREW, TAPPING (5X20)

93903-25480

$0.61

NUT, HEX. (5MM)

94001-05000-0S

$2.42

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48
