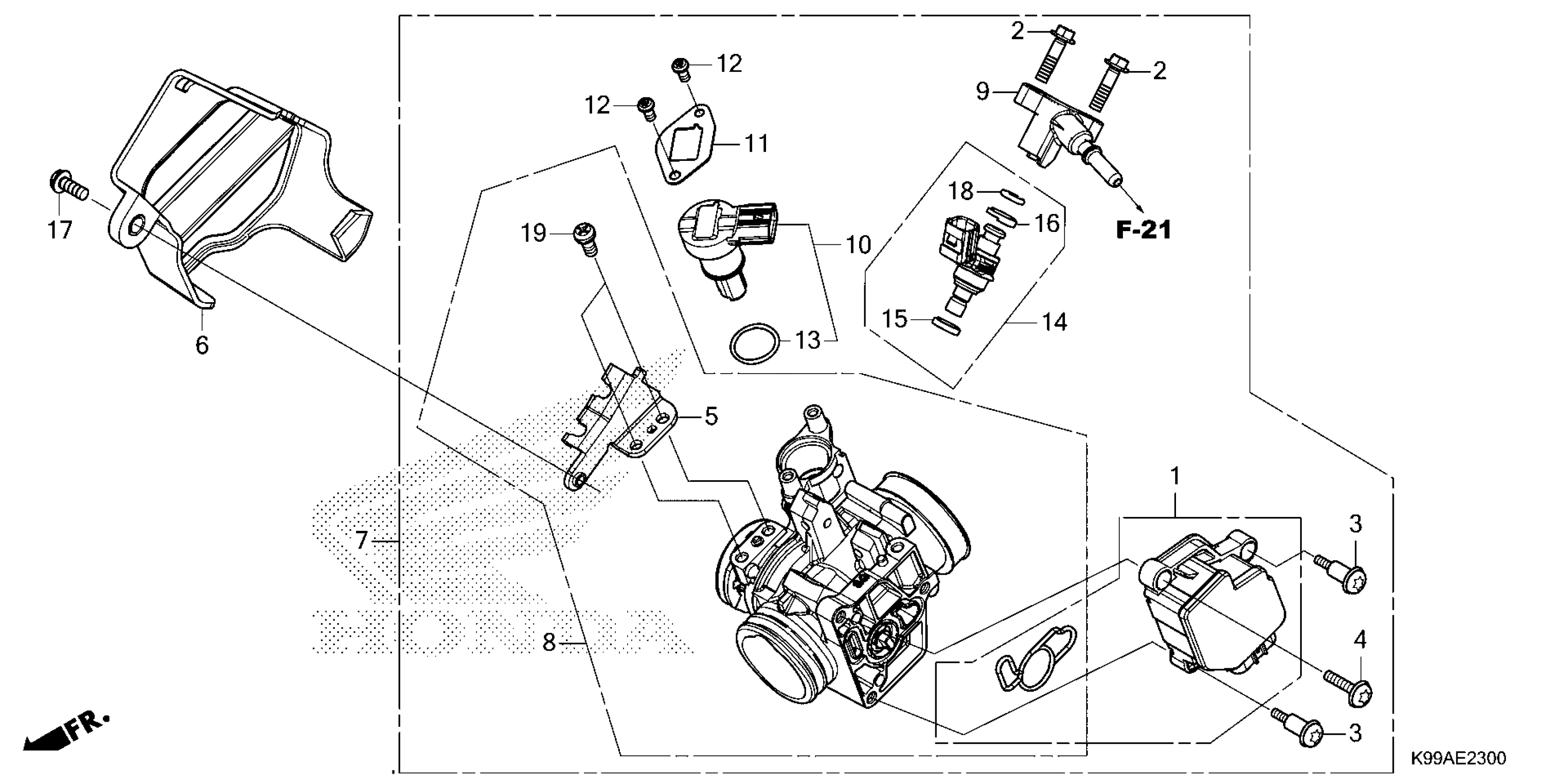

Honda CRF300FA (26) MOTORCYCLE, BRA, VIN# 9C2NE074-TR400001 TO 9C2NE074-TR499999 THROTTLE BODY Diagram

SENSOR SET

16060-K31-601

$886.34

BOLT, FLANGE (5X20)

16080-KPH-701

$4.63

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.82

SCREW, TORX (5X17)

16082-KYJ-901

$2.23

STAY, WIRE

16169-K99-A01

$18.41

COVER, THROTTLE BODY

16305-K99-A00

$3.82

BODY ASSY. (CQB2B A)

16400-K99-A71

$723.77

BODY SET

16410-K99-A71

$262.23

JOINT, INJECTOR

16422-K99-A01

$19.30

VALVE SET, IDLE AIR CONTROL

16430-KVK-901

$75.31

PLATE, IDLE AIR CONTROL VALVE

16432-HP5-601

$3.62

SCREW, TORX

16433-HN8-A61

$1.49

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

INJECTOR ASSY., FUEL

16450-K99-A71

$92.42

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

DUST SEAL RING

16473-HR3-A42

$6.34

SCREW-WASHER (5X14)

90102-KRE-710

$2.31

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49
